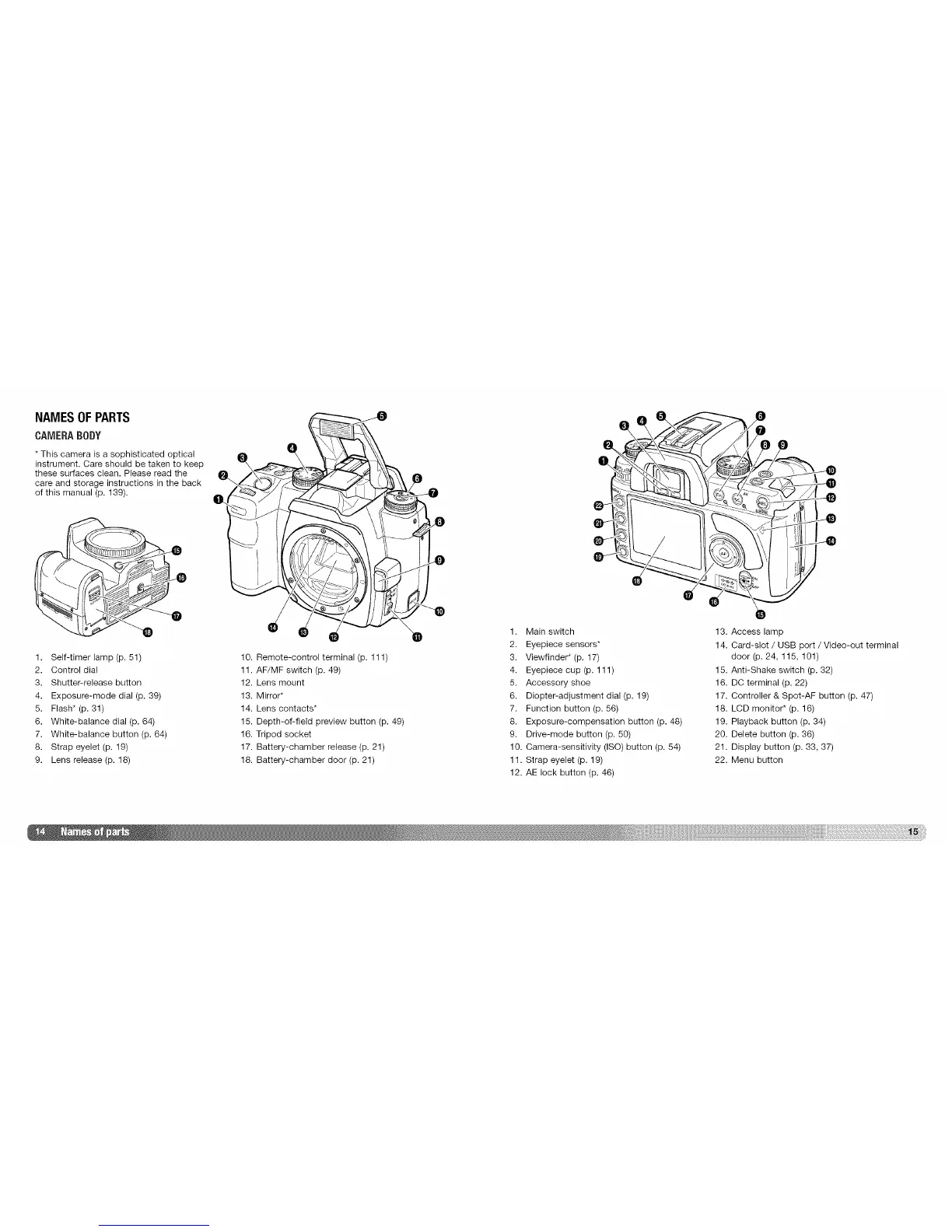

NAMESOF PARTS
CAMERABODY
* This camera is a sophisticated optical _1_
instrument. Care should be taken to keep
these surfaces clean. Please read the
care and storage instructions in the back
of this manual (p. 139).
1. Self-timer lamp (p. 51)
2. Control dial
3. Shutter-release button
4. Exposure-mode dial (p. 39)
5. Flash* (p. 31)
6. White-balance dial (p. 64)
7. White-balance button (p. 64)
8. Strap eyelet (p. 19)
9. Lens release (p. 18)
10. Remote-control terminal (p. 111)
11. AF/MF switch (p. 49)
12. Lens mount
13. Mirror*
14. Lens contacts*
15. Depth-of-field preview button (p. 49)
16. Tripod socket
17. Battery-chamber release (p. 21)
18. Battery-chamber door (p. 21)
1. Main switch
2. Eyepiece sensors*
3. Viewfinder* (p. 17)
4, Eyepiece cup (p. 111)
5, Accessory shoe
6. Diopter-adjustment dial (p. 19)
7. Function button (p. 56)
8. Exposure-compensation button (p. 48)
9. Drive-mode button (p. 50)
10. Camera-sensitivity (ISO)button (p. 54)
11. Strap eyelet (p. 19)
12. AE lock button (p. 46)
0
13. Access lamp
14. Card-slot / USB port / Video-out terminal
door (p. 24, 115, 101)
15. Anti-Shake switch (p. 321
16. DC terminal (p. 22)
17. Controller & Spot-AF button (p. 47)
18. LCD monitor* (p. 16)
19. Playback button (p. 34)
20. Delete button (p, 36)
21. Display button (p. 33,371
22. Menu button
