KONRAD 560 - Step 8(b): 560 Propeller Installation

500 SERIES INSTALLATION MANUAL JULY 2016PAGE 38
Step 8(b): 560 Propeller Installation

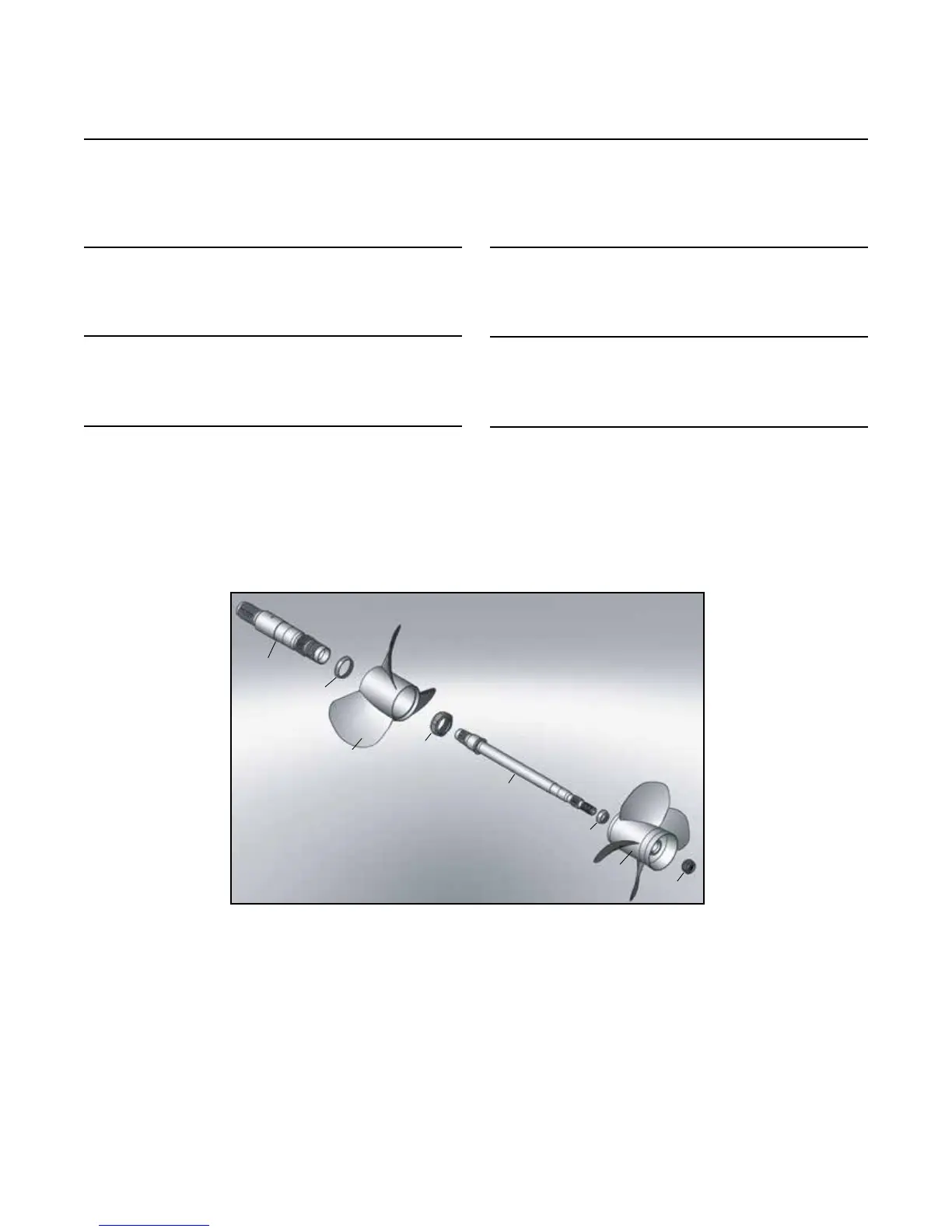

Model 560
A
B
C
D
E
F
G
H
Description Qty Part #
A ............ Forward prop shaft ....................... 1 12-502
B ............ Thrust hub ..................................... 1 12-509
C ............ Rear propeller ............................... 1 variable
D ............ Forward prop nut .......................... 1 12-506
E ............ Rear prop shaft ............................. 1 12-503
F ............ Thrust hub ..................................... 1 12-508
G ........... Rear propeller .............................. 1 variable
H ........... Rear prop nut ............................... 1 12-529
Model 560
8.1b Slide forward thrust prop onto forward prop
shaft so the tapers meet. Some grease can be
used on tapers to hold in place.
8.2b Grease splined area and the threads of the
forward propeller shaft.
8.3b Place the forward propeller on the propeller
shaft until it seats against thrust hub.
8.4b Torque the forward propeller nut to 100 lb.ft
(136 Nm) using hex wrench TO-121.
8.5b Slide rear thrust prop onto rear prop shaft so
the tapers meet. Some grease can be used on
tapers to hold in place.
8.6b Grease splined area and the threads of the
forward propeller shaft.
8.7b Place the forward propeller on the propeller
shaft until it seats against thrust hub.
8.8b Torque the rear propeller nut to 60 lb.ft (81
Nm) using 1
7
/
16
” socket wrench.
