500 SERIES INSTALLATION MANUAL JULY 2016PAGE 74

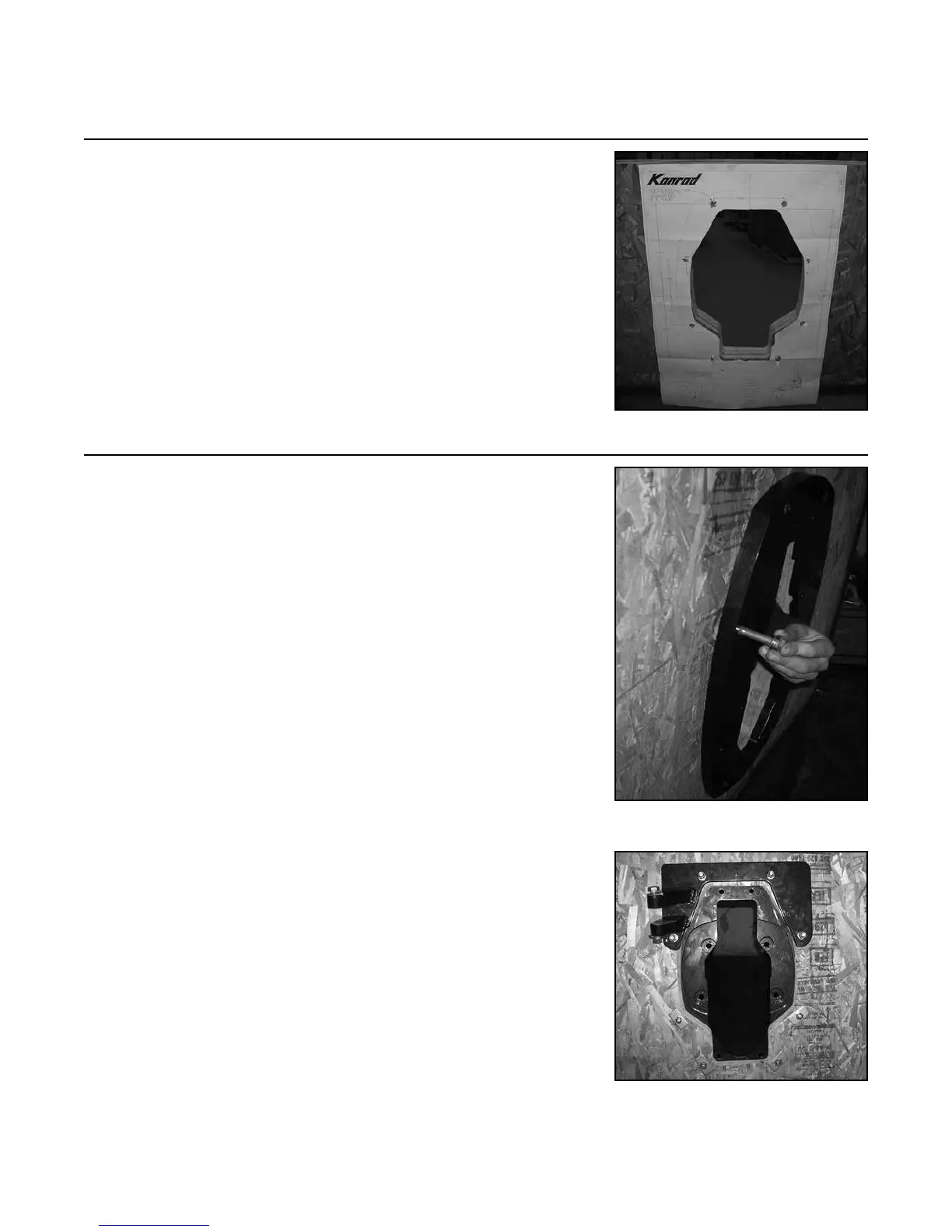

19.1 Use paper template (12-449) to set X-dimension and
center the stern drive cutout on the boat transom. Cut
hole and drill holes through the transom following the
template.
19.2 Bolt transom plate (12-268) on the outside of transom.
For the top four (4) holes, use cap screw (12-315), seal
washer (10-930), backing plate (10-941), and nut (10-
565).
Torqure all fasteners to 35 lb-ft (48 Nm).
NOTE: If a steering plate (20-082 or 12-450) is used,
replace top four (4) screws and backing plates with cap
screw (11-982) and washer (10-415).
Step 19: Rear Mount / Tailpiece Installation
FIGURE 19A
FIGURE 19B
FIGURE 19C
