Kontron ETX-DC - SuperIO Configuration Menu

ETX-DC®/ BIOS Operation
52

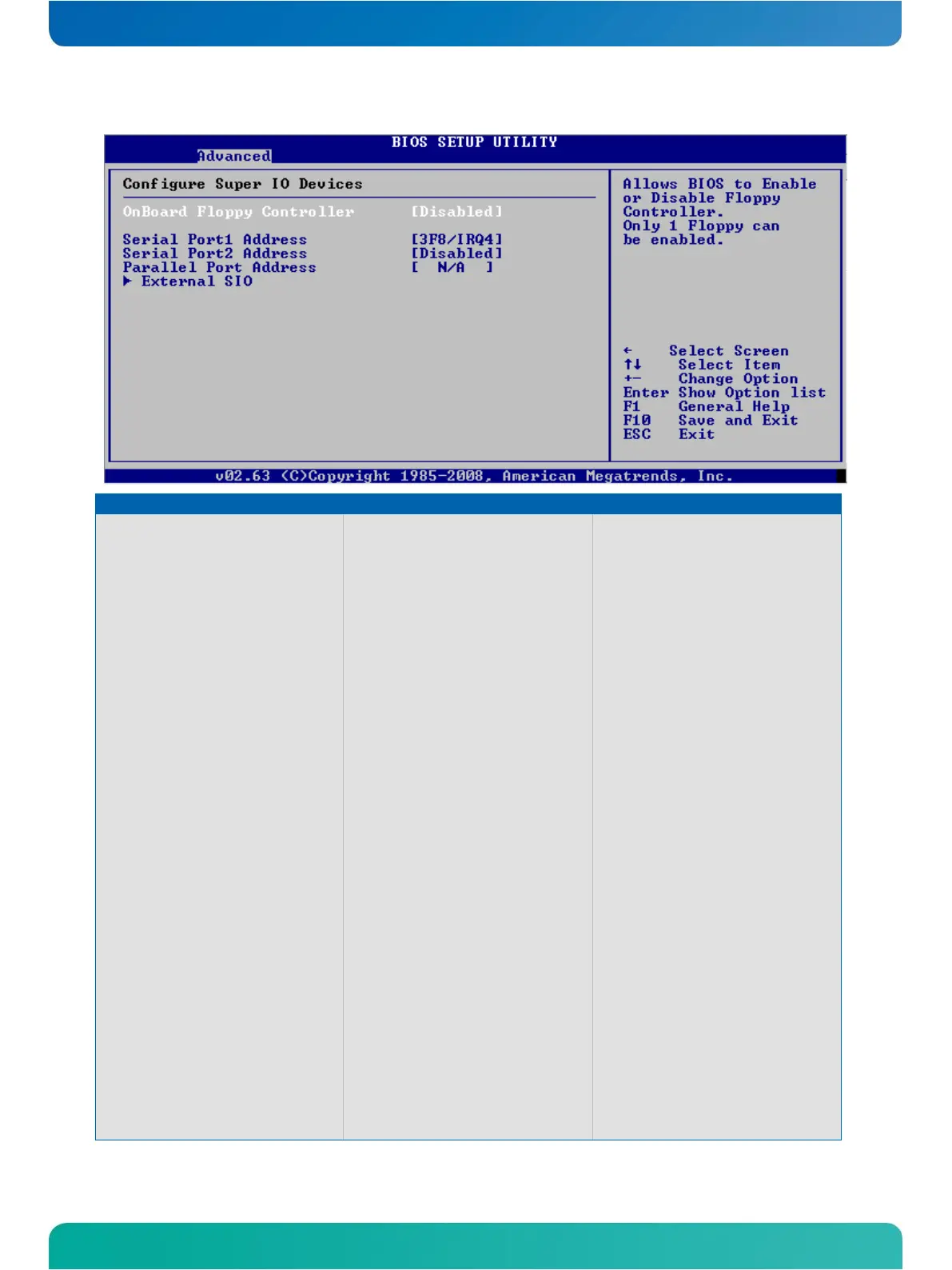

SuperIO Configuration Menu
Feature
Option
Description
OnBoard Floppy Controller
Disabled
Enabled
N/A
Enables / Disables floppy controller.
Only accessable when jumpered to use
floppy
Serial Port1 Address
Disabled
3F8/IRQ4
2F8/IRQ3
3D8/IRQ4
2E8/IRQ3
Selects the COM1 base addressand
interrupt request line.
Serial Port2 Address
Disabled
2F8/IRQ3
3D8/IRQ4
2E8/IRQ3
Selects the COM1 base addressand
interrupt request line.
Parallel Port Adress
Disabled
378
279
3BC
N/A
Selects the base address of the onboard
parallel port.
Only accessable when jumpered to
parallel port
Parallel Port Mode
Normal
Bidirectional
ECP
EPP
ECP + EPP
Selects the mode of the onboard parallel
port.
Only accessable when jumpered to
parallel port
EPP Version
1.9
1.7
ECP Mode DMA Channel
DMA0
DMA1
DMA3
Delects the DMA Channel for ECP Mode
(only available when ECP mode is
selected)
Parallel Port IRQ
IRQ7
IRQ5
Selects the interrupt request line of the
onboard parallel port.
Only accessable when jumpered to
parallel port
