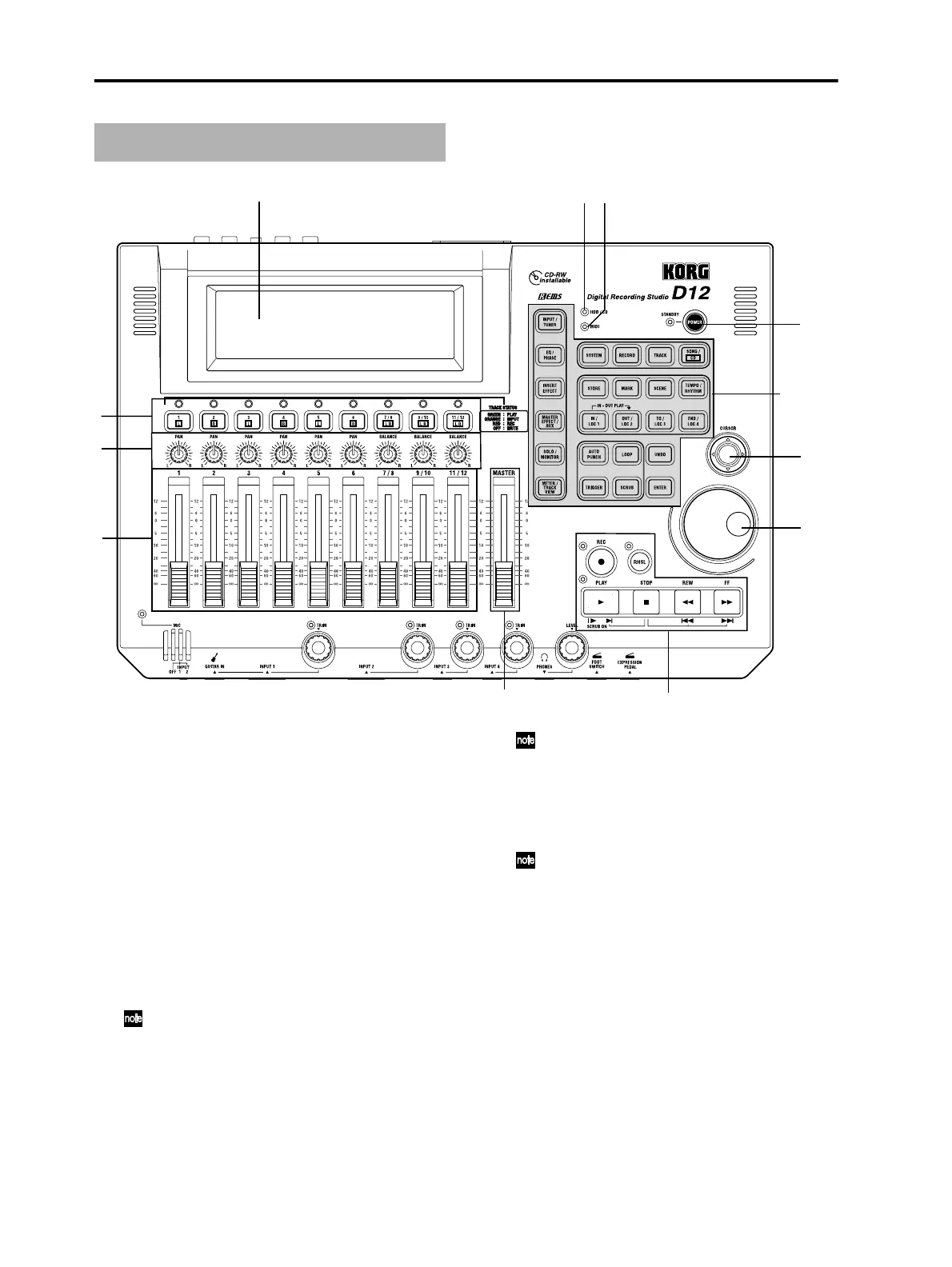

Panel overview of the D12
1 LCD screen
This displays the volume (level meters) and time
locations (locate) during recording or playback,
and displays the various parameters. (→p.13)
2 [TRACK STATUS] keys
These keys are used to put each track into playback
or record status, or to mute (silence) it. Each time
you press a key, the track setting will alternate.
(→p.111)
Green: PLAY
Orange: INPUT
Red: REC
Dark: MUTE
When recording from analog/digital input, you
can select up to four recording tracks.
These settings can be paired.
3 [PAN] knobs (Ch 1…6)
[BALANCE] knobs (Ch 7…12)
These knobs adjust the stereo location of each chan-
nel.
For channels 1–6 they adjust the pan of each chan-
nel. For channels 7–12 they adjust the balance.
(→p.111)
These settings can be paired, and registered in
a scene.
4 [CHANNEL] faders (Ch1…6, Ch7/8…11/12)
These faders adjust the recording/playback vol-
ume of each channel.
Channels 7–12 are stereo faders. (→p.112)
These settings can be paired, and registered in
a scene.
5 [MASTER] fader
This adjusts the volume of all channels. During
bounce recording, this sets the recording level of
the bounce destination track. (→p.112)
6 TRANSPORT keys
[REC] key, [RHSL] key, [PLAY] key, [STOP] key,
[REW] key, [FF] key
These are used to perform recorder operations such
as playback and record. (→p.112)
7 [VALUE] dial
This is used to modify parameter values, and to
move the current time.
When the Scrub function is on, rotating the dial
will cause the track to play at the corresponding
speed.
Top panel
1
2
3
4
5
8
7
6
9
12 ~ 32
10 11
* For the mic and trim controls etc., refer to the “Front panel” section.
