Step 1. Making connections, and turning
the power on/off
1. Connections
Make the appropriate connections for your system,
substituting your own equipment as necessary for the
equipment shown here.

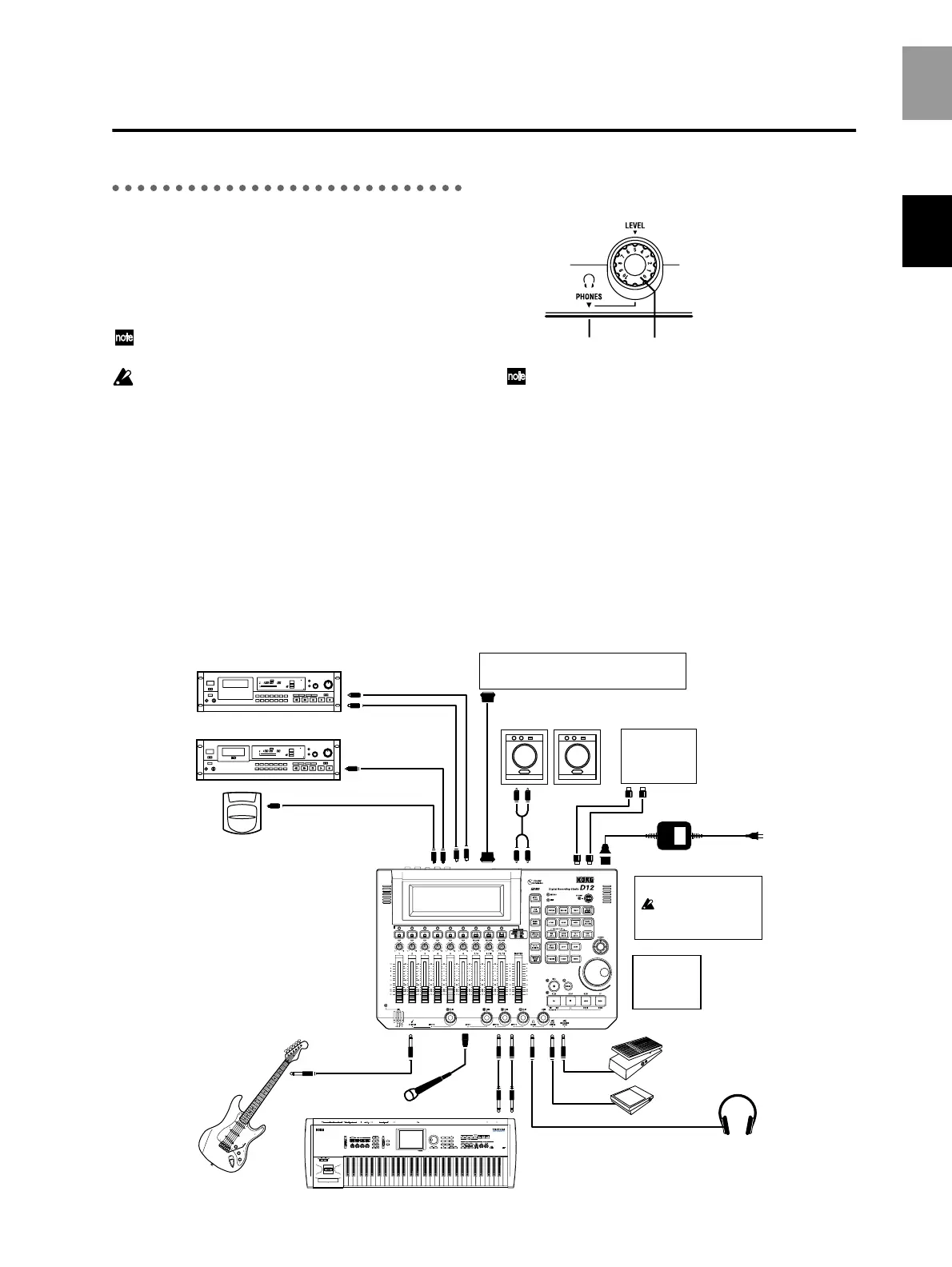

The diagram below shows a basic example of connec-
tions when using the D12 to record.
For details on installing the CDRW-1 CD-R/RW
drive option, refer to p.133.
Be sure that the power is turned off while you are
making connections. If the power is on while con-
nections are being made, your speaker system may
be damaged, or other malfunctions may occur.
1 Connect the included AC/AC power supply.
Connect the AC/AC power supply to the AC/AC
power supply connector of the D12. Then plug the
other end into an AC outlet.
2 Connect your audio monitoring system.
Use RCA phono cables to connect a powered moni-
tor system etc. to the [MONITOR OUT L/R] jacks.
If you will be monitoring through headphones,
connect the 1/4" phone plug of your headphones
to the [PHONES] jack.
Use the [PHONES LEVEL] knob to adjust the vol-
ume.
The audio signal that is output from the [MONI-
TOR OUT L/R] jacks and the [PHONES] jack is set
in the [SOLO/MONITOR] “Monitor” tab page.
(→p.109)
3 Connect your input devices.
Connections for recording analog sources
• Guitar, bass guitar ↔ [GUITAR IN] jack
• Mic (XLR) ↔ [INPUT 1], [INPUT 2] jacks
• Synthesizer etc. ↔ [INPUT 1]–[INPUT 4] jacks
For details on assigning the audio inputs to mixer
channels and auditioning the input sound, refer to
p.23.
[PHONES LEVEL] knob
[PHONES] jack
PHONES
FOOT SWITCH
EXPRESSION
PEDAL
S/P DIF IN
DIGITAL IN
AUX IN
DIGITAL OUT
S/P DIF OUT
OUTPUT
GUITAR IN
INPUT
1–4
MIDI
IN/OUT
MIDI
OUT/IN
MONITOR
OUT L/R
MASTER
OUT L/R
SCSI
SCSI
CD, DAT, MD etc.
Powered monitors etc.
Guitar
PS-1
Pedal switch
Keyboard
Mic
Headphones
to the AC outlet
Power supply connection
You must use the
included AC/AC power
supply
AC/AC power
supply connector
MIDI
sequencer
Master recorder (Digital: DAT, MD, etc.)
Master recorder (Analog: cassette tape recorder, etc.)
Hard disk drive, CD-R/RW drive
removable disk drive (MO, zip, jaz etc.)
EXP-2 Foot controller
CDRW-1
CD-RW
Drive option
Basic operation
Making connections, and
turning the power on/off
