211
Effects

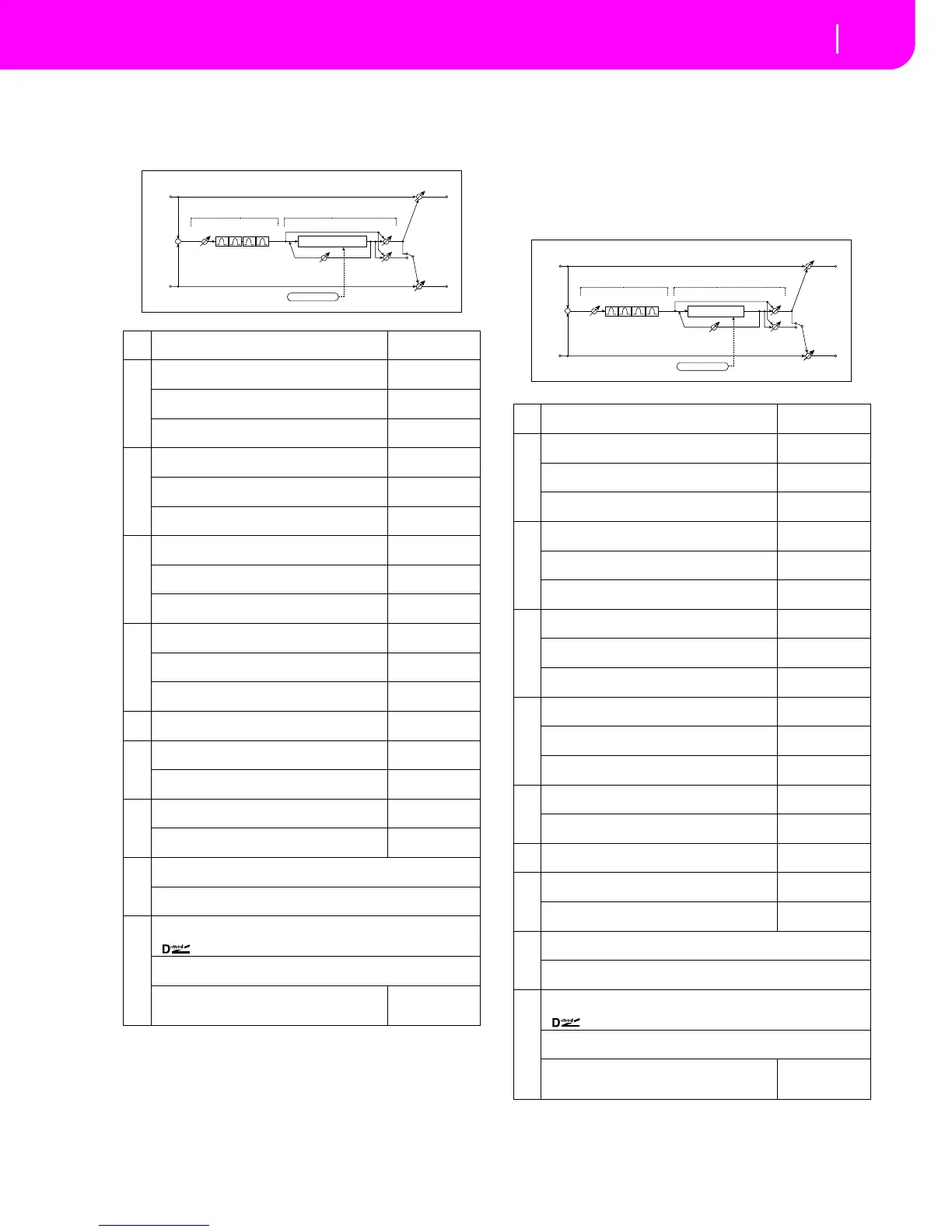

Mono – Mono Chain
060: 4EqPhsrChFl
(Parametric 4-Band EQ – Chorus/Flanger)
This effect combines a mono-type four-band parametric
equalizer and a chorus/flanger.
i: Output Mode
When Wet Invert is selected, the right channel phase of
the chorus/flanger effect sound is inverted. This creates
pseudo-stereo effects and adds spread.
However, if a mono-input type effect is connected after
this effect, the left and right sounds may cancel each
other, eliminating the chorus/flanger effects.
061: Par4Eq-Phsr
(Parametric 4-Band EQ – Phaser)
This effect combines a mono-type four-band parametric
equalizer and a phaser.
a
[E] Trim
Sets the parametric EQ input level
0...100
b
[E] Band1 Cutoff [Hz]
Sets the center frequency of Band 1
20...1.00kHz
Q
Sets the bandwidth of Band 1
0.5...10.0
☞ Fx:006
Gain [dB]
Sets the gain of Band 1
–18...+18dB
c
[E] Band2 Cutoff [Hz]
Sets the center frequency of Band 2
50...5.00kHz
Q
Sets the bandwidth of Band 2
0.5...10.0
☞ Fx:006
Gain [dB]
Sets the gain of Band 2
–18...+18dB
d
[E] Band3 Cutoff [Hz]
Sets the center frequency for Band 3
300...10.00kHz
Q
Sets the bandwidth of Band 3
0.5...10.0
☞ Fx:006
Gain [dB]
Sets the gain of Band 3
–18...+18dB
e
[E] Band4 Cutoff [Hz]
Sets the center frequency for Band 4
500...20.00kHz
Q
Sets the bandwidth of Band 4
0.5...10.0
☞ Fx:006
Gain [dB]
Sets the gain of Band 4
–18...+18dB
f
[F] Delay Time [msec]
Sets the delay time
0.0...50.0msec
g
[F] LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
LFO Waveform
Selects LFO Waveform
Triangle, Sine
h
[F] Depth
Sets the depth of LFO modulation
0...100
Feedback
Sets the feedback amount
–100...+100
☞ Fx:020
i
[F] Cho/Flng Wet/Dry –Wet...–2:98, Dry, 2:98...Wet
Sets the effect balance of the chorus/flanger
☞ Fx:010, 020
Output Mode Normal, Wet Invert
Selects the output mode for the chorus/flanger
☞
j
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
Left
Right
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ
Chorus/Flanger
Wet / Dry
Chorus/Flanger
Feedback
LFO: Tri / Sine
Cho/Flng Wet / Dry
Normal
Wet Invert
Output Mode
–
+
a
[E] Trim
Sets the parametric EQ input level
0...100
b
[E] Band1 Cutoff [Hz]
Sets the center frequency of Band 1
20...1.00kHz
Q
Sets the bandwidth of Band 1
0.5...10.0
☞ Fx:006
Gain [dB]
Sets the gain of Band 1
–18...+18dB
c
[E] Band2 Cutoff [Hz]
Sets the center frequency of Band 2
50...5.00kHz
Q
Sets the bandwidth of Band 2
0.5...10.0
☞ Fx:006
Gain [dB]
Sets the gain of Band 2
–18...+18dB
d
[E] Band3 Cutoff [Hz]
Sets the center frequency for Band 3
300...10.00kHz
Q
Sets the bandwidth of Band 3
0.5...10.0
☞ Fx:006
Gain [dB]
Sets the gain of Band 3
–18...+18dB
e
[E] Band4 Cutoff [Hz]
Sets the center frequency for Band 4
500...20.00kHz
Q
Sets the bandwidth of Band 4
0.5...10.0
☞ Fx:006
Gain [dB]
Sets the gain of Band 4
–18...+18dB
f
[P] LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
LFO Waveform
Selects LFO Waveform
Triangle, Sine
g
[P] Manual
Sets the frequency to which the effect is applied
0...100
h
[P] Depth
Sets the depth of LFO modulation
0...100
Resonance
Sets the resonance amount
–100...+100
☞ Fx:023
i
[P] Phaser Wet/Dry –Wet...–2:98, Dry, 2:98...Wet
Sets the phaser effect balance
☞ Fx:010, 023
Output Mode Normal, Wet Invert
Selects the phaser output mode
☞ Fx:060
j
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
–
+
