Display and User Interface
Message windows

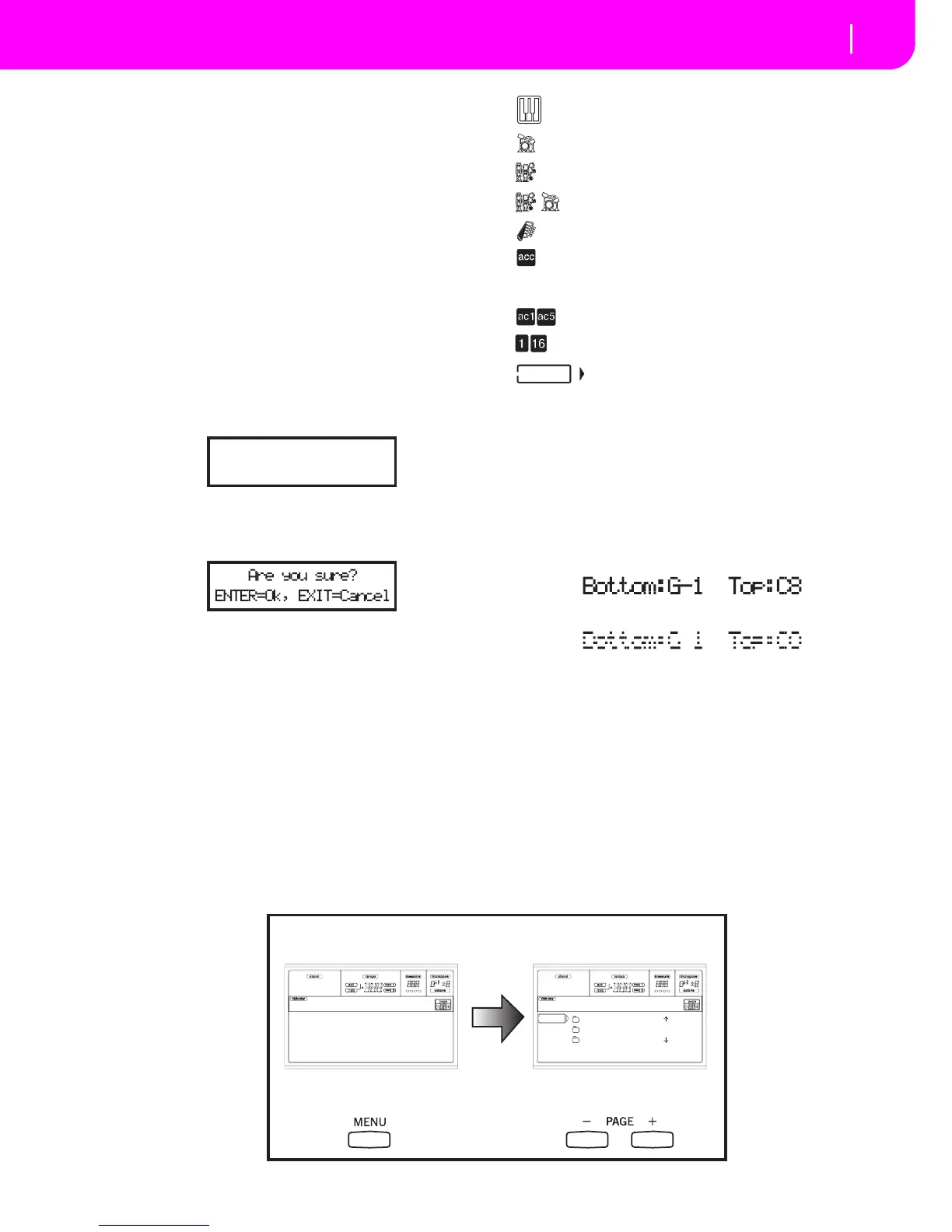

Edit environment. (See diagram at the bottom of this
page). When you press GLOBAL or DISK, an edit environ-
ment overlaps the current operating mode. Press EXIT to go
back to the current operating mode.
An edit environment is made up of a menu and a series of
edit pages. Use the MENU and PAGE buttons to browse
across the various edit pages.
Selecting windows. When you press one of the STYLE or
PROGRAM/PERFORMANCE buttons, you open a selecting
window. This window closes after selecting one of the items
in it, or after pressing EXIT.
If the DISPLAY HOLD LED is light up, the window doesn’t
close after selecting an item. Press EXIT to close the window,
and go back to the underlying page.
MESSAGE WINDOWS
Sometimes, a message appears in the display, warning about
an error or a wrong operation:
Press ENTER or EXIT to exit one of these windows.
Other messages ask for an answer, as in the “Are you sure”
window below:
Press ENTER/YES for Yes, or EXIT/NO for No.
SYMBOLS AND ICONS
Many icons and symbols, on the custom display, show the
status of a parameter or the display content.
Realtime/Keyboard track (Upper 1-3, Lower).
Drum track (Style track view).
Percussion track (Style track view).
Grouped Drum and Percussion tracks.
Bass track (Style track view).
Grouped accompaniment tracks. This symbol
indicates the five grouped accompaniment
tracks (Acc1-5).
Accompaniment tracks (Style track view).
Sequencer tracks.
Selected track or parameter. When this symbol
appears, you can execute any available opera-
tion on the selected item.
(no icon) The track is in mute, and can’t play on the key-
board.
GRAYED-OUT NON-AVAILABLE PARAMETERS
Currently non-available parameters are now shown in “gray”
in the display, i.e. with a “ghost” texture. Here is an example
of a grayed-out parameter, compared to a normal parameter:
Edit environment
Menu Edit pages
Load Format
Save New Dir
Copy Rename
Erase Utilities
Disk Menu
NEWNAME.SET |
LIVE.SET
ETHNICA.SET |
FD LOAD OPEN CLOSE
Disk:Load
Not a Standard
MIDI File
Text in solid black
Text in gray
To Next Page
Loading...
