Song Play operating mode

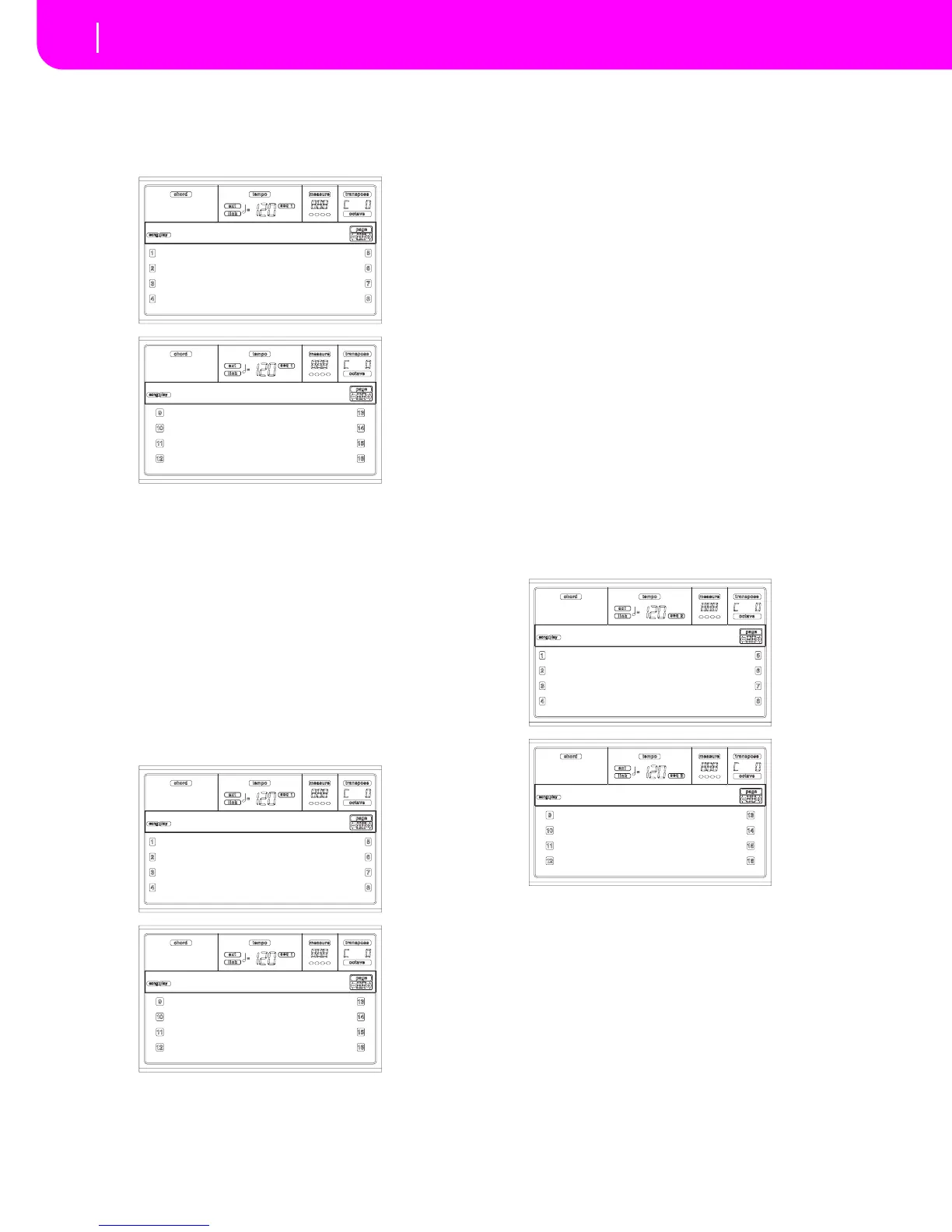

Page 2 - Mixer: Pan
PAGE 2 - MIXER: PAN
Here you can adjust the pan for each Song track.
Use the TRACK SELECT button to switch between Song
tracks 1-8, Song tracks 9-16, and back again.
Pan
-64 Hard Left.
+00 Center.
+63 Hard Right.
Off The direct (uneffected) signal does not go to
the outputs; only the FX signal is heard for this
track.
PAGE 3 - MIXER: FX SEND A/B
This page lets you set the level of the track’s direct (unef-
fected) signal going to the A and B Internal FX processors
(usually assigned to Sequencer 1).
Use the TRACK SELECT button to switch from tracks 1-8 to
tracks 9-16.
Note: When playing back a Song that makes use of all four
effects (A-D), you can’t edit any effect parameter. These param-
eters appear greyed out in the display.
Note: When you stop the Song, or select a different Song, the
default effects are selected again. You can, however, stop the
Song, change the effects, then start the Song again. Edit the Song
in Song mode to permanently change the effects.
Here is the edit procedure:
1. Use the VOLUME/VALUE (A-H) buttons to select a
track.
2. Use the F1-F4 buttons to select a parameter for that
track.
3. Use the TEMPO/VALUE controls to change the parame-
ter’s value.
Parameters
000 No effect. Only the direct (uneffected) signal
goes to the outputs.
127 100% effect. The direct (uneffected) and
effected signals go to the outputs with the same
level.
PAGE 3 - MIXER: FX SEND C/D
This page lets you set the level of the track’s direct (unef-
fected) signal going to the C and D Internal FX processors.
Note: You can access this page only while editing the Sequencer
2, and the “S2 FX Mode” parameter is set to “CD Mode” (see
page 80).
Use the TRACK SELECT button to switch from tracks 1-8 to
tracks 9-16.
Here is the edit procedure:
1. Use the VOLUME/VALUE (A-H) buttons to select a
track.
2. Use the F1-F4 buttons to select a parameter for that
track.
3. Use the TEMPO/VALUE controls to change the parame-
ter’s value.
Parameters
000 No effect. Only the direct (uneffected) signal
goes to the outputs.
127 100% effect. The direct (uneffected) and
effected signals go to the outputs with the same
level.
C+00 C+00
C+00 C+00
C+00 C+00
C+00 C+00
Mixer:Pan
C+00 C+00
C+00 C+00
C+00 C+00
C+00 C+00
Mixer:Pan
A:100 B:050 A:100 B:050
A:127 B:020 A:100 B:050
A:110 B:050 A:100 B:050
A:100 B:050 A:100 B:050
Mixer:FXSend
A:100 B:050 A:100 B:050
A:127 B:020 A:100 B:050
A:110 B:050 A:100 B:050
A:100 B:050 A:100 B:050
Mixer:FXSend
C:100 D:050 C:100 D:050
C:127 D:020 C:100 D:050
C:110 D:050 C:100 D:050
C:100 D:050 C:100 D:050
Mixer:FXSend
C:100 D:050 C:100 D:050
C:127 D:020 C:100 D:050
C:110 D:050 C:100 D:050
C:100 D:050 C:100 D:050
Mixer:FXSend
