217
Effects

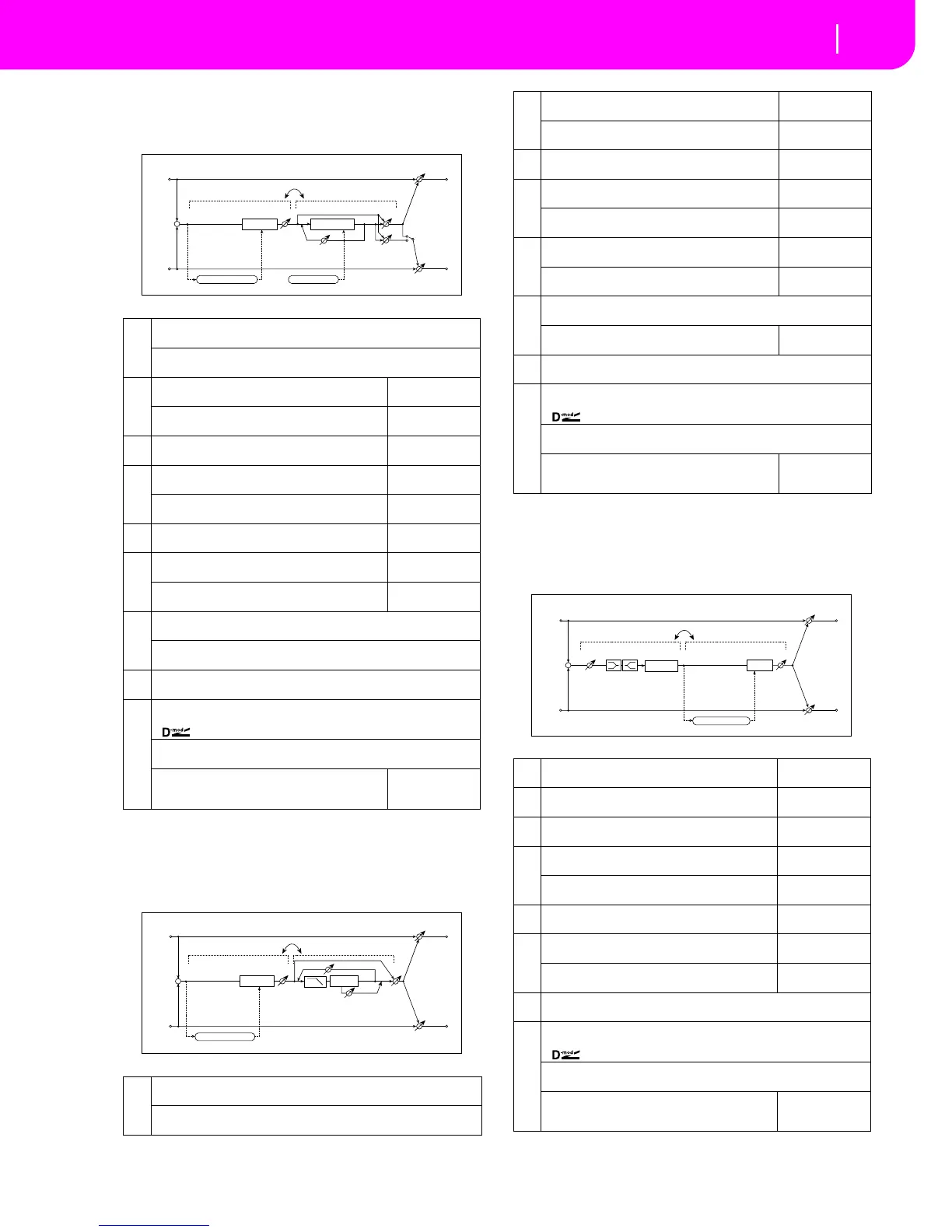

Mono – Mono Chain
072: Lim-Phaser
This effect combines a mono-type limiter and a phaser. You
can change the order of the effect connection.
073: Lim-MTapDly
(Limiter – Multitap Delay)
This effect combines a mono-type limiter and a multitap
delay. You can change the order of the effect connection.
074: Exc-Compr
(Exciter – Compressor)
This effect combines a mono-type exciter and a compressor.
You can change the order of the effect connection.
a
[L] Ratio 1.0:1...50.0:1, Inf:1
Sets the signal compression ratio
☞ Fx:003
Threshold [dB] –40...0dB
Sets the level above which the compressor is applied
☞ Fx:003
b
[L] Attack
Sets the attack time
1...100
☞ Fx:003
Release
Sets the release time
1...100
☞ Fx:003
c
[L] Gain Adjust [dB]
Sets the limiter output gain
–Inf, –38...+24dB
☞ Fx:003
d
[P] LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
LFO Waveform
Selects LFO Waveform
Triangle, Sine
e
[P] Manual
Sets the frequency to which the effect is applied
0...100
f
[P] Depth
Sets the depth of LFO modulation
0...100
Resonance
Sets the resonance amount
–100...+100
☞ Fx:023
g
[P] Phaser Wet/Dry –Wet...–2:98, Dry, 2:98...Wet
Sets the phaser effect balance
☞ Fx:010, 023
Output Mode Normal, Wet Invert
Selects the phaser output mode
☞ Fx:067
h
Routing LMT→PHS, PHS→LMT
Switches the order of the limiter and phaser connection
☞ Fx:067
i
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
a
[L] Ratio 1.0:1...50.0:1, Inf:1
Sets the signal compression ratio
☞ Fx:003
Threshold [dB] –40...0dB
Sets the level above which the compressor is applied
☞ Fx:003
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Limiter
Limiter
Gain Adjust
Envelope - Control
Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
–
+
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Mt.Dly Wet / Dry
Limiter
Limiter
Gain Adjust
Envelope - Control
b
[L] Attack
Sets the attack time
1...100
☞ Fx:003
Release
Sets the release time
1...100
☞ Fx:003
c
[L] Gain Adjust [dB]
Sets the limiter output gain
–Inf, –38...+24dB
☞ Fx:003
d
[D] Tap1 Time [msec]
Sets the Tap1 delay time
0...680msec
Tap1 Level
Sets the Tap1 output level
0...100
☞ Fx:045
e
[D] Tap2 Time [msec]
Sets the Tap2 delay time
0...680msec
Feedback (Tap2)
Sets the Tap2 feedback amount
–100...+100
f
[D] Mt.Delay Wet/Dry Dry, 1:99...99:1, Wet
Sets the multitap delay effect balance
High Damp [%]
Sets the damping amount in the high range
0...100%
☞ Fx:043
g
Routing LMT→DLY, DLY→LMT
Switches the order of the limiter and multitap delay connection
h
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
a
[X] Exciter Blend
Sets the intensity (depth) of the Exciter effect
–100...+100
☞ Fx:011
b
[X] Emphatic Point
Sets the frequency range to be emphasized
0...70
☞ Fx:011
c
[X] EQ Trim
Table , “Sets the EQ input level,” on page 176
0...100
d
[X] Pre LEQ Gain [dB]
Table , “Sets the gain of Low EQ,” on page 176
–15...+15dB
Pre HEQ Gain [dB]
Table , “Sets the gain of High EQ,” on page 176
–15...+15dB
e
[C] Sensitivity
Sets the sensitivity
1...100
☞ Fx:002
f
[C] Attack
Table , “Sets the attack level,” on page 176
1...100
☞ Fx:002
Output Level
Sets the compressor output level
0...100
☞ Fx:002
g
Routing XCT→CMP, CMP→XCT
Switches the order of the exciter and compressor connection
h
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Compressor
LEQ HEQ
EQ Trim
Comp
Output Level
Envelope - Control
Exciter
Exciter
