OPERATION
DIAGNOSTICS
156
Fault Condition Warning
When a fault condition is detected by the Digsy control system, the display panel will show a screen associ-
ated with the fault. If the fault has not been cleared and corrected, the Diagnostic screen notifies and guides
you to the portion of the crusher that is experiencing an error. This notification is displayed by a flashing red
icon in the problematic area.

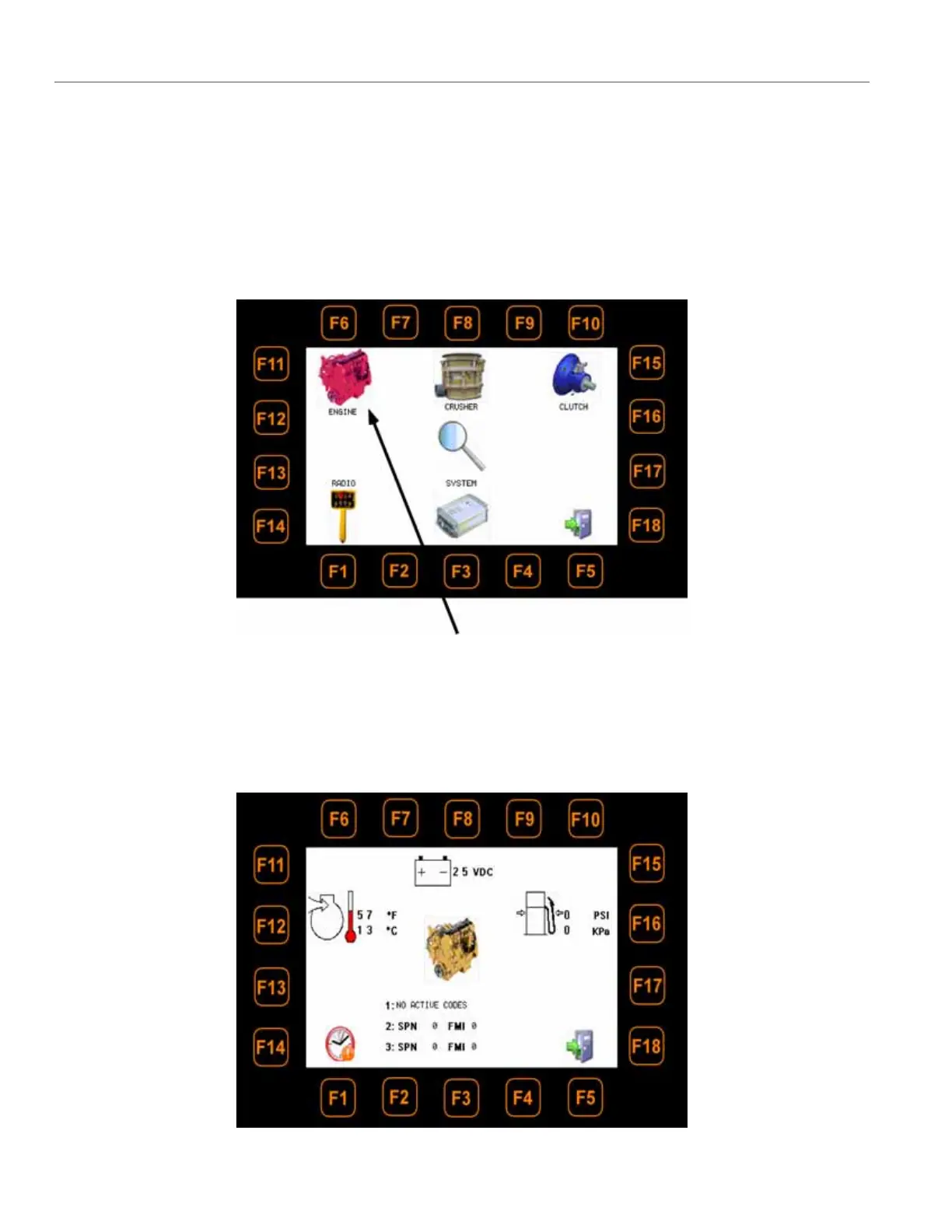

For example, if there was a problem with the engine, the engine diagnostics icon would be blinking red to alert
you to press F6 to enter that screen.
Engine Diagnostics
The engine diagnostics screen will display up to three error codes provide by the engine ECM. A description
is shown for the first active code with SPN and FMI numbers for the following two. A message of NO ACTIVE
CODES will be displayed if all three slots are empty.
