SERVICE
CRUSHER SERVICE
356

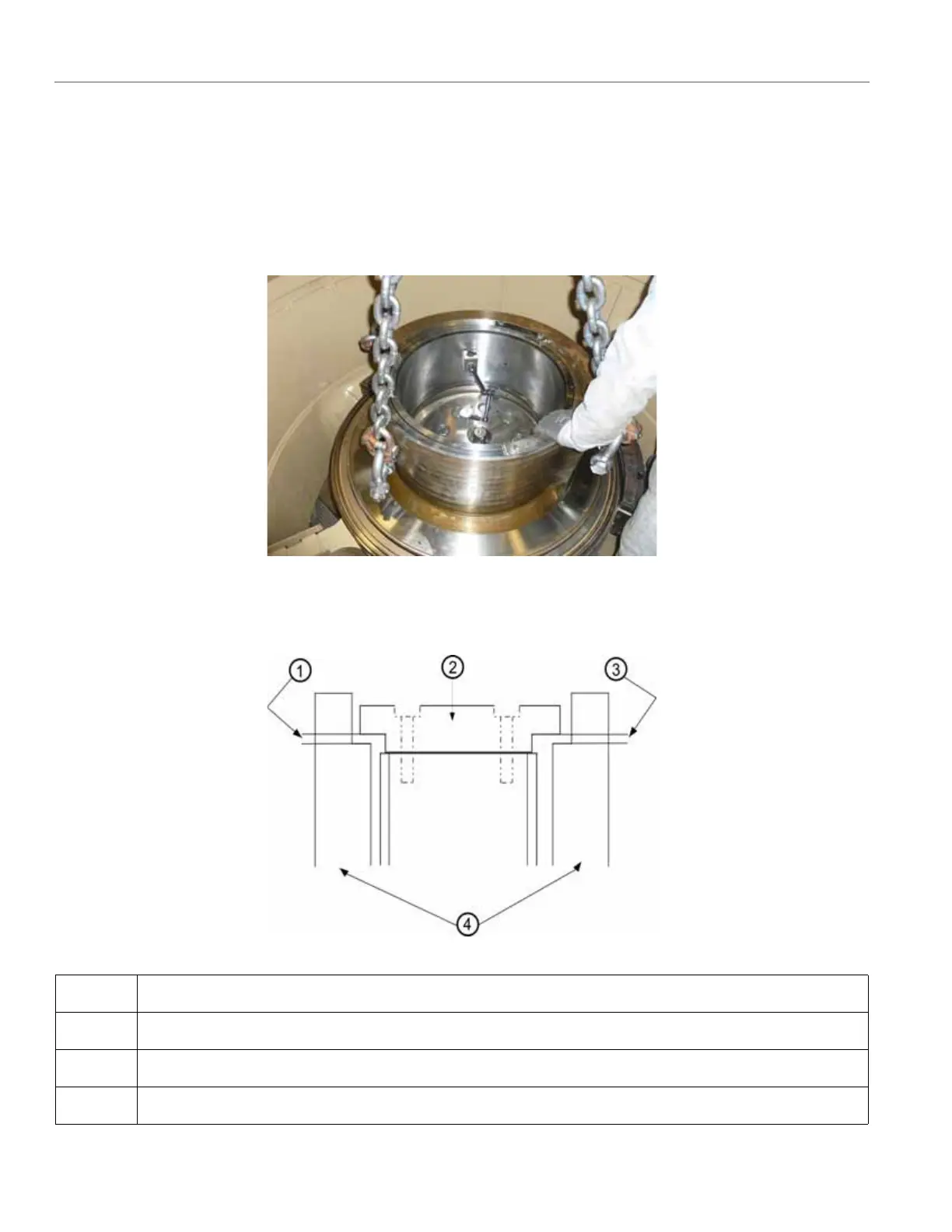

Setting Gap Between Thrustplate and Wedgeplate Procedure
NOTE: The purpose of the gap is to make sure the thrustplate does not contact the wedgeplate and it allows
for the correct amount of oil for lubrication.
1. Install magnetic dial indicator on the inside surface of the outer radial bearing race.
2. Position dial indicator on thrust plate surface and set to zero.
3. Gently lift the wedgeplate up until it contacts the thrust plate to measure the clearance between the
wedge plate and thrust plate. The desired measurement should be between 0.025 to 0.035 thou-
sandths.
1 .025 to .035
2 Thrustplate
3 .025 to .035
4 Wedgeplate
To Next Page
