4. If 0.025 to 0.035 thousandths measurement is not met the thrust plate needs to be machined.
5. Once the 0.025 to 0.035 thousandths is met, record measurement.
Pin Clutch Removal Procedure
Tools and supplies needed:
• Clean rags
• Socket set
• Pry bar
•Bucket
• Allen wrench set
• Sealant
1. Relieve all hydraulic pressure.
2. Lockout/tagout the crusher and power supply. Follow all local procedures and guidelines.
3. Clean the area under and around the brake housing cover in preparation for removing the clutch.

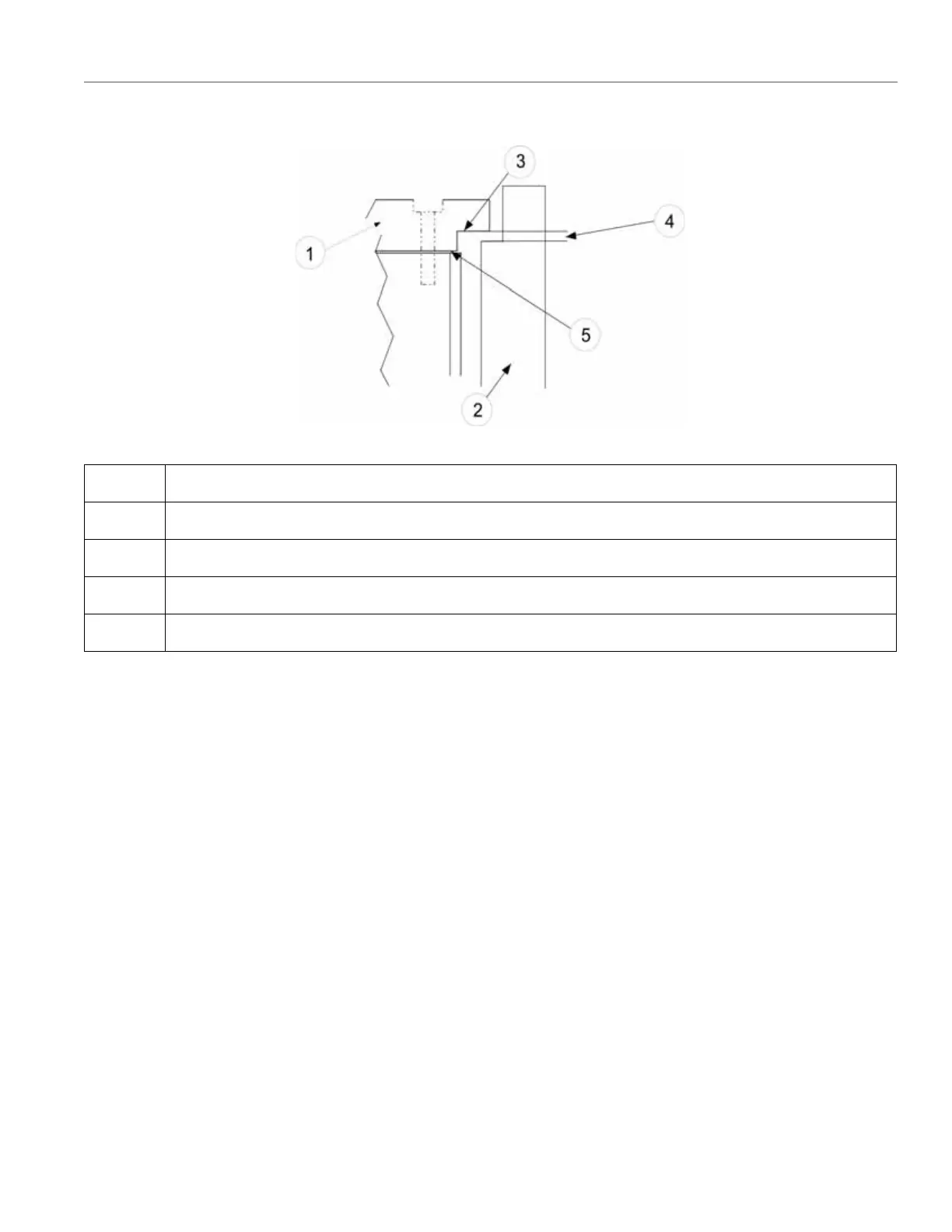

1 Thrustplate
2 Wedgeplate
3 To increase gap, machine here
4 .025 to .035
5 To decrease gap, machine here
