Kramer FC-46xl

Connecting the FC-46xl HDMI Audio De-Embedder
7
5 Connecting the FC-46xl HDMI Audio De-Embedder

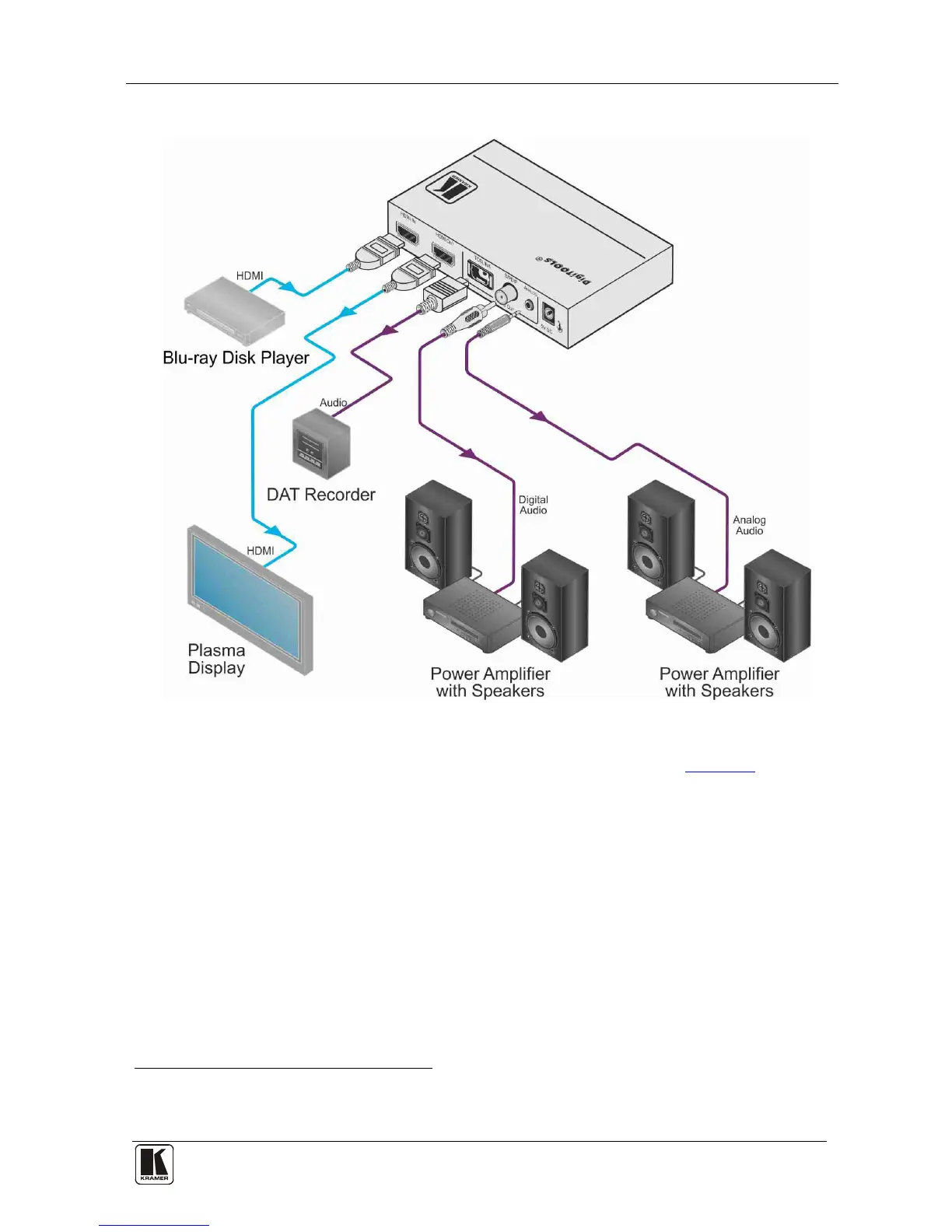

Figure 2: Connecting the FC-46xl HDMI Audio De-Embedder
To connect the FC-46xl as illustrated
1
in the example in Figure 2:
1. Connect the HDMI source (for example, a Blu-ray Disc player) to the HDMI
IN connector.
2. Connect the HDMI OUT connector to the HDMI acceptor (for example, a
plasma display).
3. Connect the audio output(s) to the digital/analog audio acceptor(s),
for example, power amplifier(s) or active speaker(s).
Note: The analog audio output is disabled when there are more than two
channels (for example, 5.1) on the audio input.
1 Switch off the power to each device before connecting it to your FC-46xl. After connecting your FC-46xl, switch on its
power and then switch on the power to each device
