KDS-7-MNGR – Using KDS-7-MNGR Embedded Web Pages
61
Viewing KDS-7-MNGR Advanced Status
View the system log and gateway messages counter.
To view/export log:
1. In the Navigation pane, click Diagnostics. The Status tab appears (see Figure 66).
2. Select the Advanced tab.

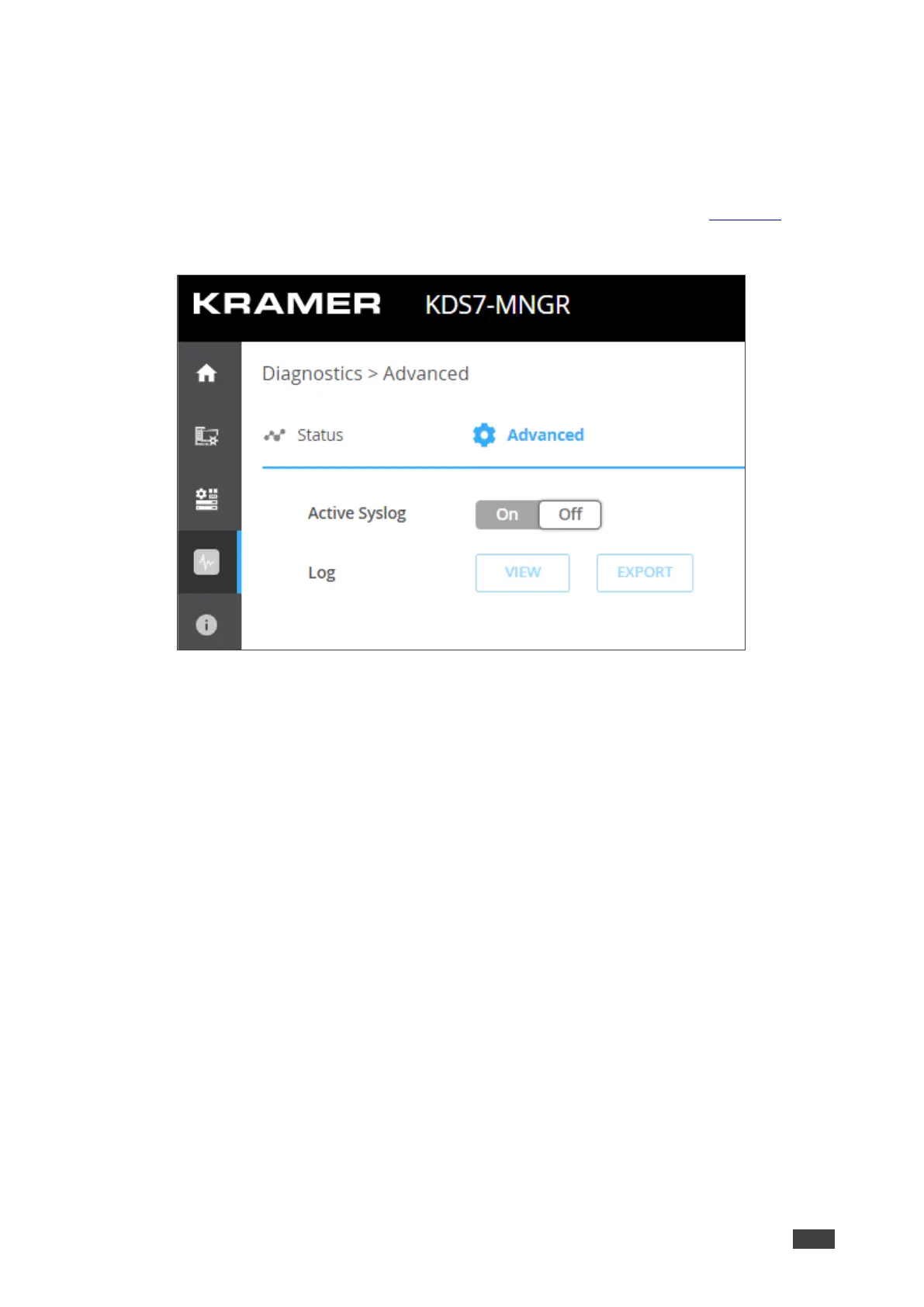

Figure 67: Diagnostics Page – Advanced Tab
3. Define Syslog activity:
▪ On, to enable device system log locally.
▪ Off (default), to disable device system log locally.
4. Click VIEW to view the system log, if required.
5. Click EXPORT to export the system log (.txt) to the local PC.
6. View the sent and received gateway messages.
System log is viewed/exported.
