KDS-7-MNGR ā Connecting KDS-7-MNGR
By-default, the device uses PoE for powering the device. Optionally, you can separately
purchase a power adapter to connect to the product and plug into the mains electricity.
Always switch off the power to each device before connecting it to your KDS-7-MNGR. After
connecting your devices, connect their power and then switch on the power to each device.

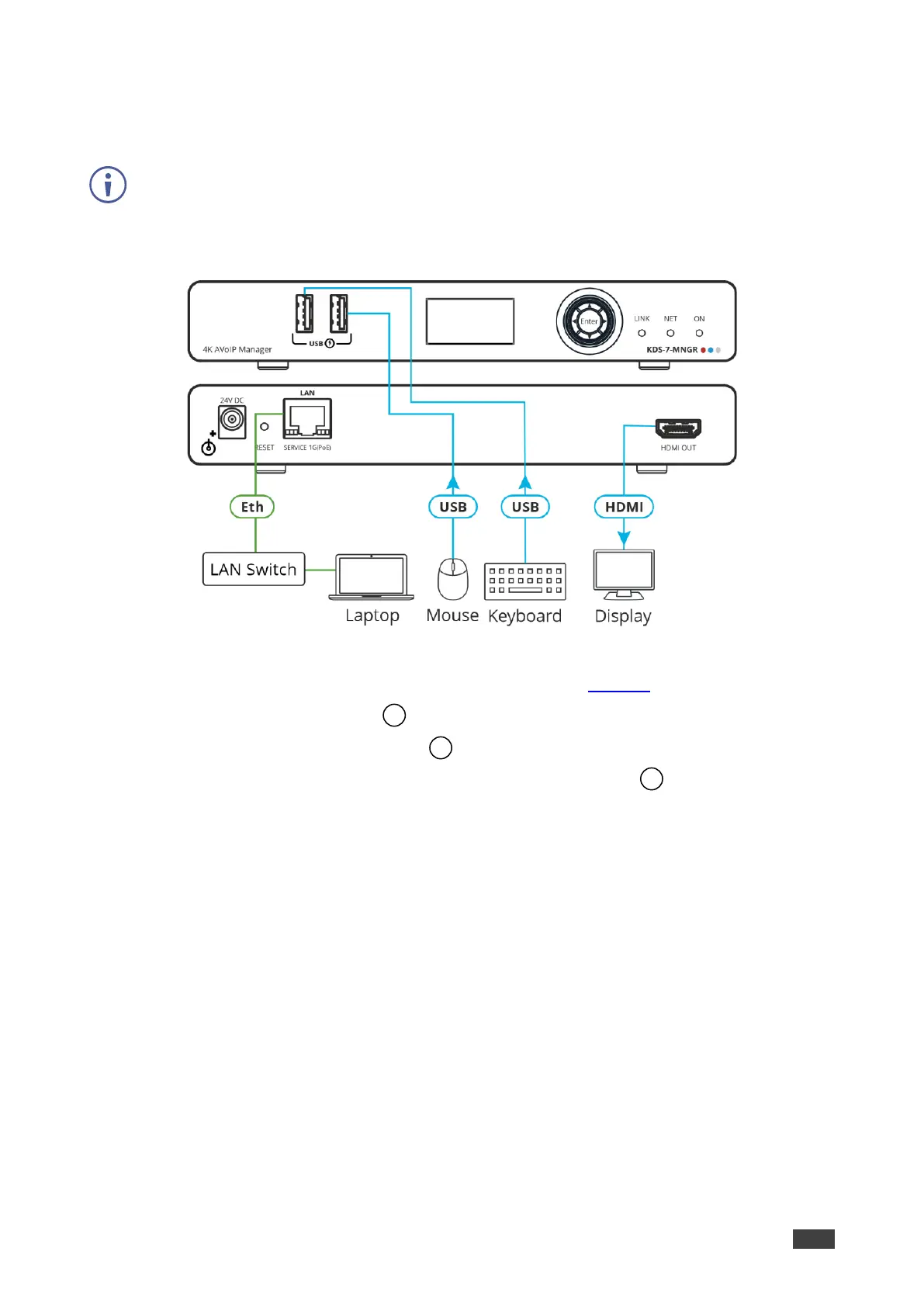

Figure 2: Connecting the KDS-7-MNGR
To connect KDS-7-MNGR as illustrated in the example in Figure 2:
1. Connect the LAN RJ-45 port to the LAN switch.
2. Connect the HDMI OUT connector to an HDMI acceptor (for example, a display).
3. Connect a mouse and a keyboard to the two USB type A ports .the USB ports.
