Kramer Electronics Ltd.
KT-107, KT-107RB - Mounting the KT-107, KT-107RB
Installing the On-Wall Secure Lock
The KT-107-OWLK, is purchased separately and secures KT-107 safely to the on-wall mount.
The On-Wall Lock includes a 2-part frame (short and long part),
2 screws and 2 washers.
To secure KT-107 to the on-wall mount:

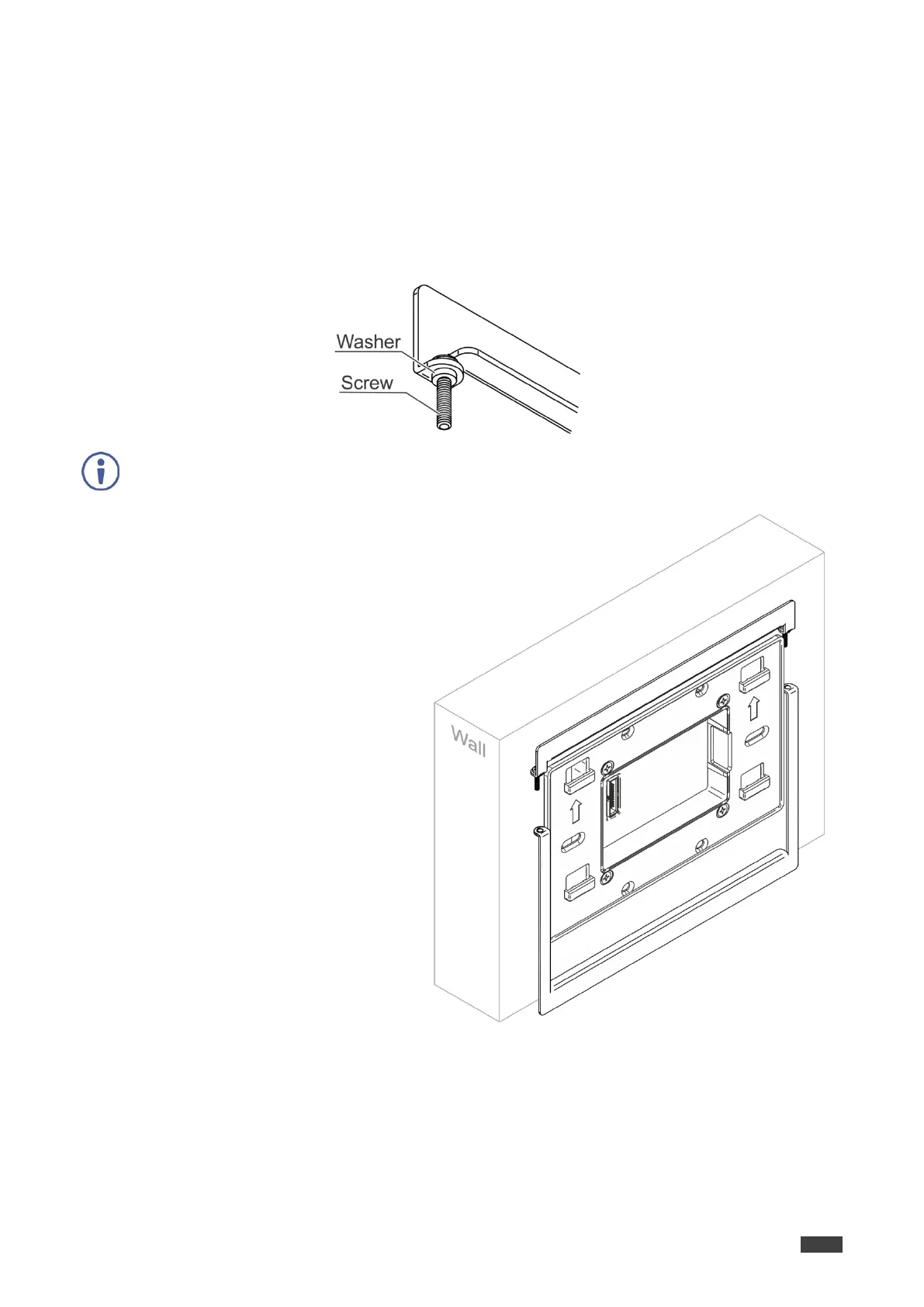

1. Insert the 2 screws (supplied) into the screw openings and insert the washers from below.
This example shows the short part on top and the long part below. You can attach it with the
long part on top and the short part below.
2. Place the short part (together with
the screws) over the installed
on-wall mount unit.
3. From below, slide the long frame
part towards the short frame part.
Figure 16: Placing the Frame Parts
