KT-107, KT-107RB - Mounting the KT-107, KT-107RB
21
Connecting Options
You can power the KT-107 using any or all of the following options:
 Connect the PoE-enabled LAN RJ-45 connector to your local area PoE-enabled network.
 Connect the power adapter to the 2-pin terminal block connector on the mount rear side.
When both PoE and the power supply are connected to the Touch Panel, the unit is
powered by the power supply.
 Use the internal battery (after initially charging the battery for 8 hours).

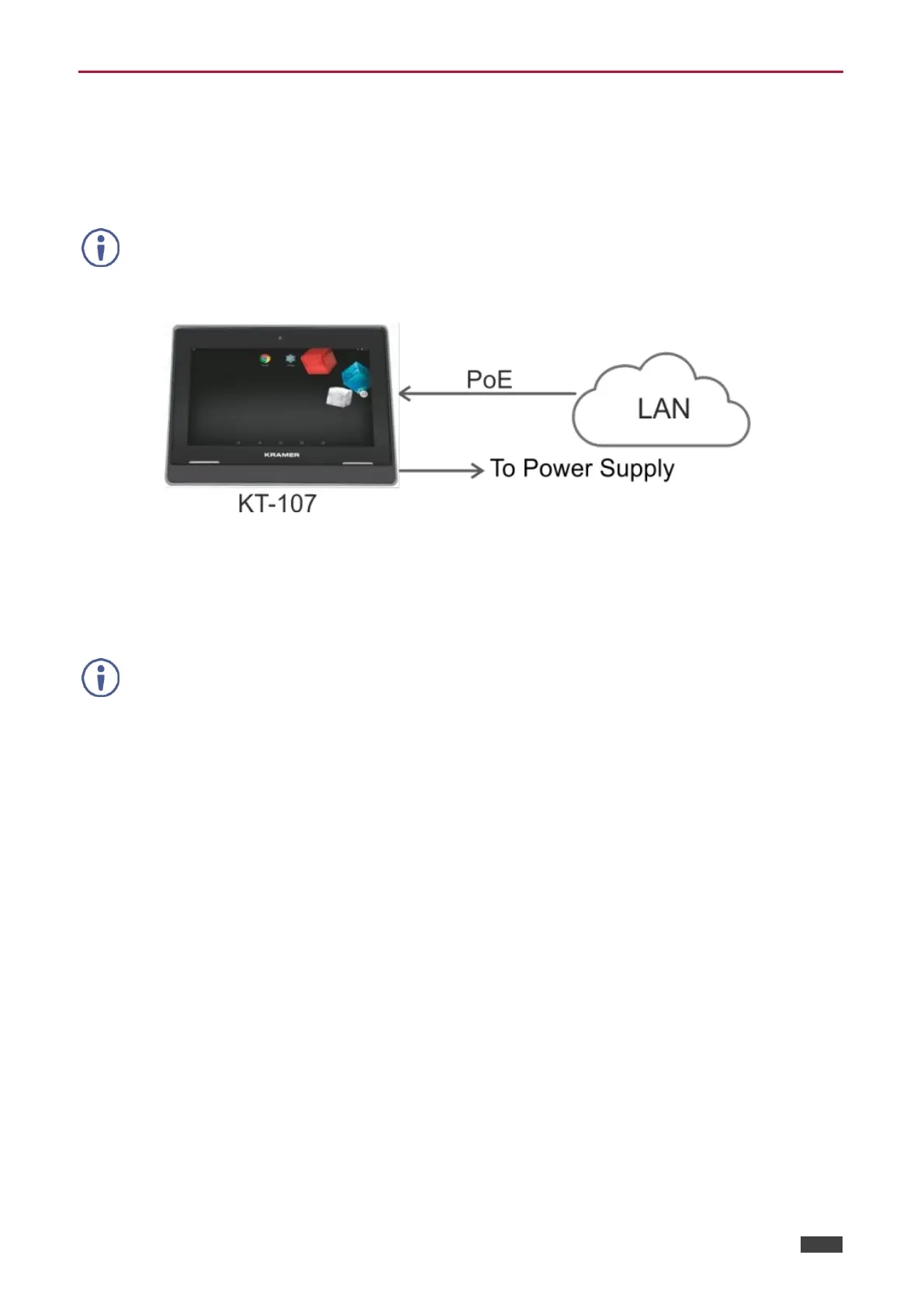

Figure 19: Powering the KT-107 Touch Panel
Connect to the local area Ethernet network:
 Via Ethernet cable connection to the LAN RJ-45 connector.
 Use Wi-Fi if no wired Ethernet connection is available, or as a fall-back option.
KT-107 features auto-sensing. It detects the speed of LAN devices (such as the LAN
(Ethernet) switch, the router and so on) connected to KT-107 and automatically sets the
KT-107 LAN port speed, accordingly.
For example:
 If the LAN switch supports 100Mbps Fast Ethernet, the KT-107 LAN port is automatically
set to work at 100Mbps.
 If the LAN switch supports 1000Mbps Gigabit Ethernet, the KT-107 LAN port is
automatically set to work at 1000Mbps.
