Your TP-121EDID XGA / Audio Line Transmitter
5
5
In particular, the TP-121EDID:
• Has a transmission range of more than 300ft (more than 100m), and a
20kHz audio bandwidth with an S/N ratio that exceeds 80dB on the same
transmission range
• Can power or be powered by the receiver over the same CAT 5 cable
• Is 12V DC fed
Figure 1 and Table 1 define the TP-121EDID:

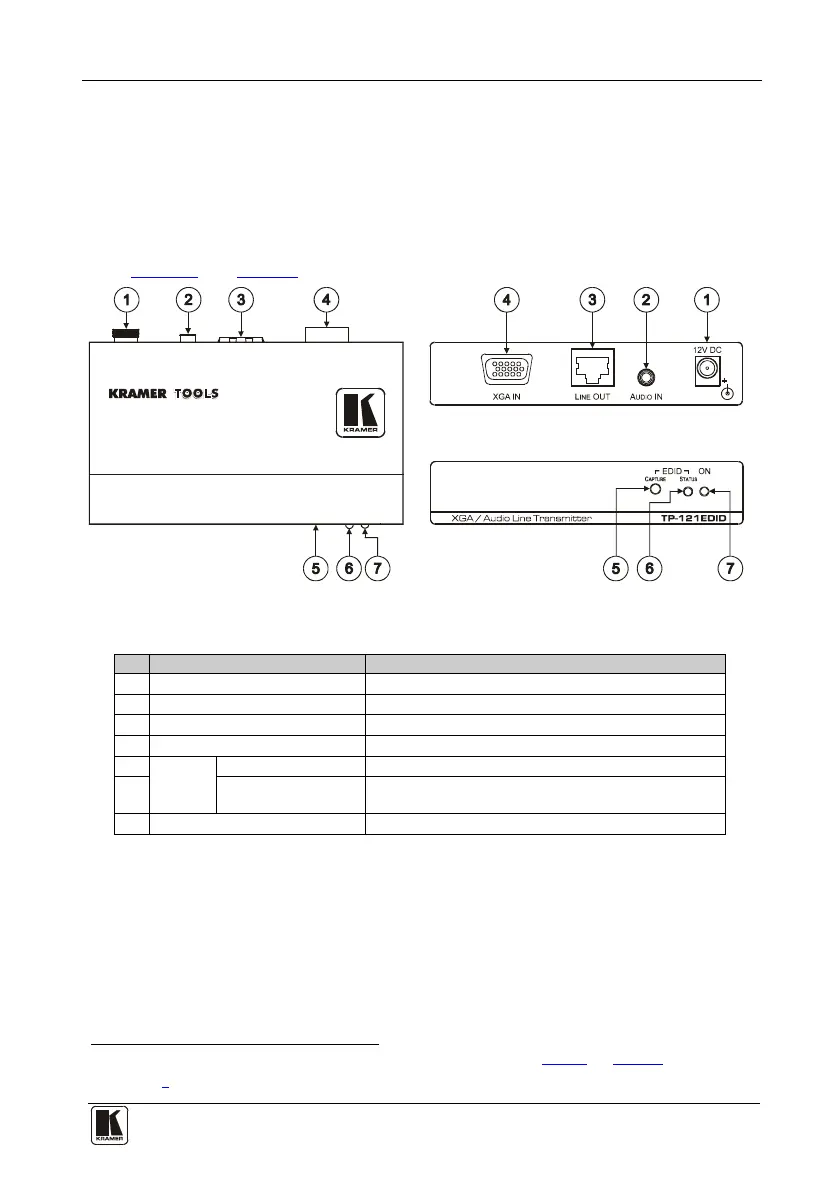

Figure 1: TP-121EDID XGA / Audio Line Transmitter
Table 1: TP-121EDID XGA / Audio Line Transmitter Features
#
Feature
Function
1 12V DC +12V DC connector for powering the unit
2 AUDIO IN 3.5mm mini jack Connects to the audio source
3 LINE OUT RJ-45 connector Connects to
1
4
the LINE IN RJ-45 connector on a receiver
XGA IN 15-pin HD (F) connector Connect to the XGA source
5 EDID
2
CAPTURE Button Press to acquire the EDID information from the display
6 STATUS LED Illuminates during normal operation; blinks when
acquiring the EDID
7 ON LED Illuminates when receiving power
1 Using a CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 11 and Figure 11)
2 See section
