After connecting the Ethernet port, configure your PC as follows:
1. Right-click the My Network Places icon on your desktop.
2. Select Properties.
3. Right-click Local Area Connection Properties.
4. Select Properties.
The Local Area Connection Properties window appears.
5. Select the Internet Protocol (TCP/IP) and click the Properties Button
(see
Figure 3
).

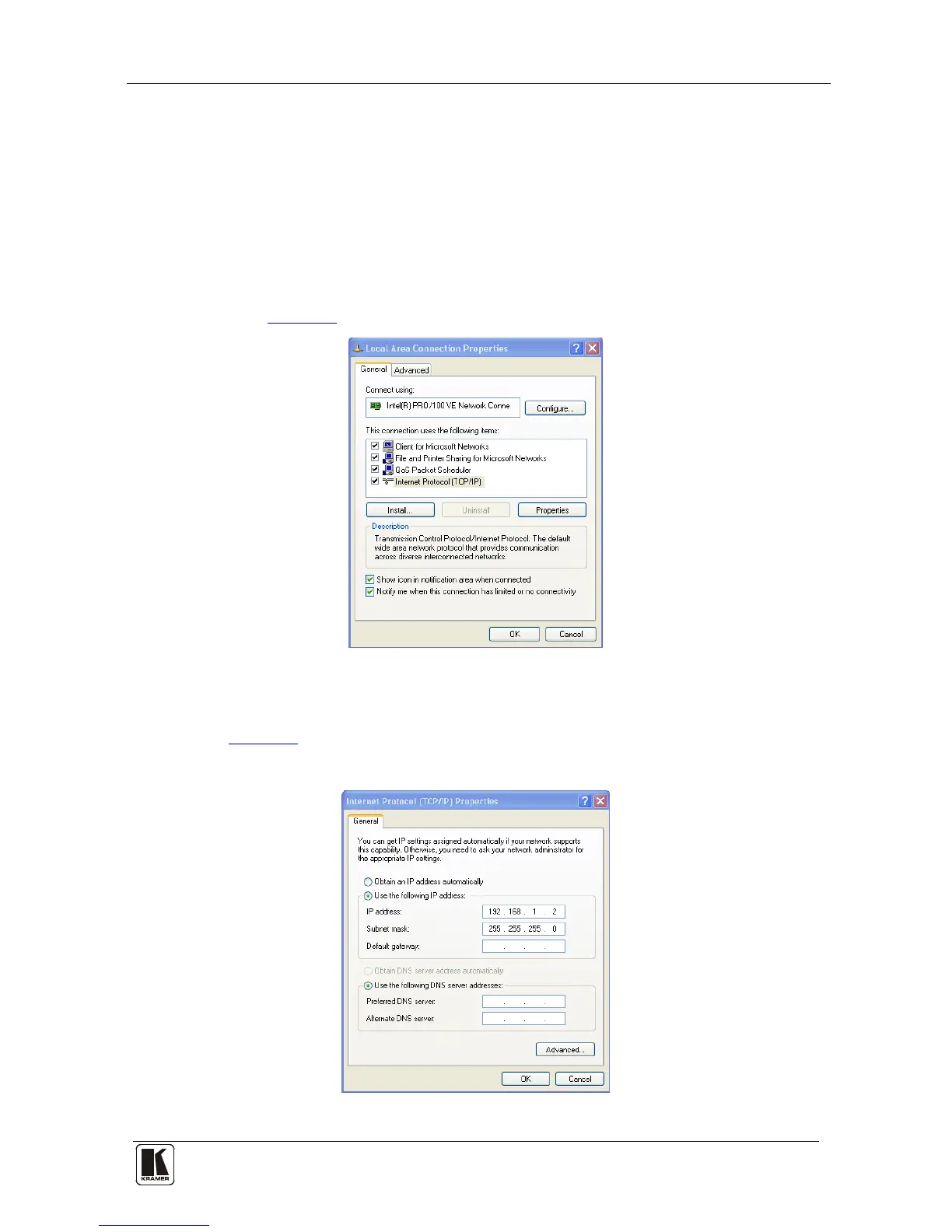

Figure 3: Local Area Connection Properties Window
6. Select Use the following IP Address, and fill in the details as shown in
Figure 4.
7. Click OK.
Figure 4: Internet Protocol (TCP/IP) Properties Window
