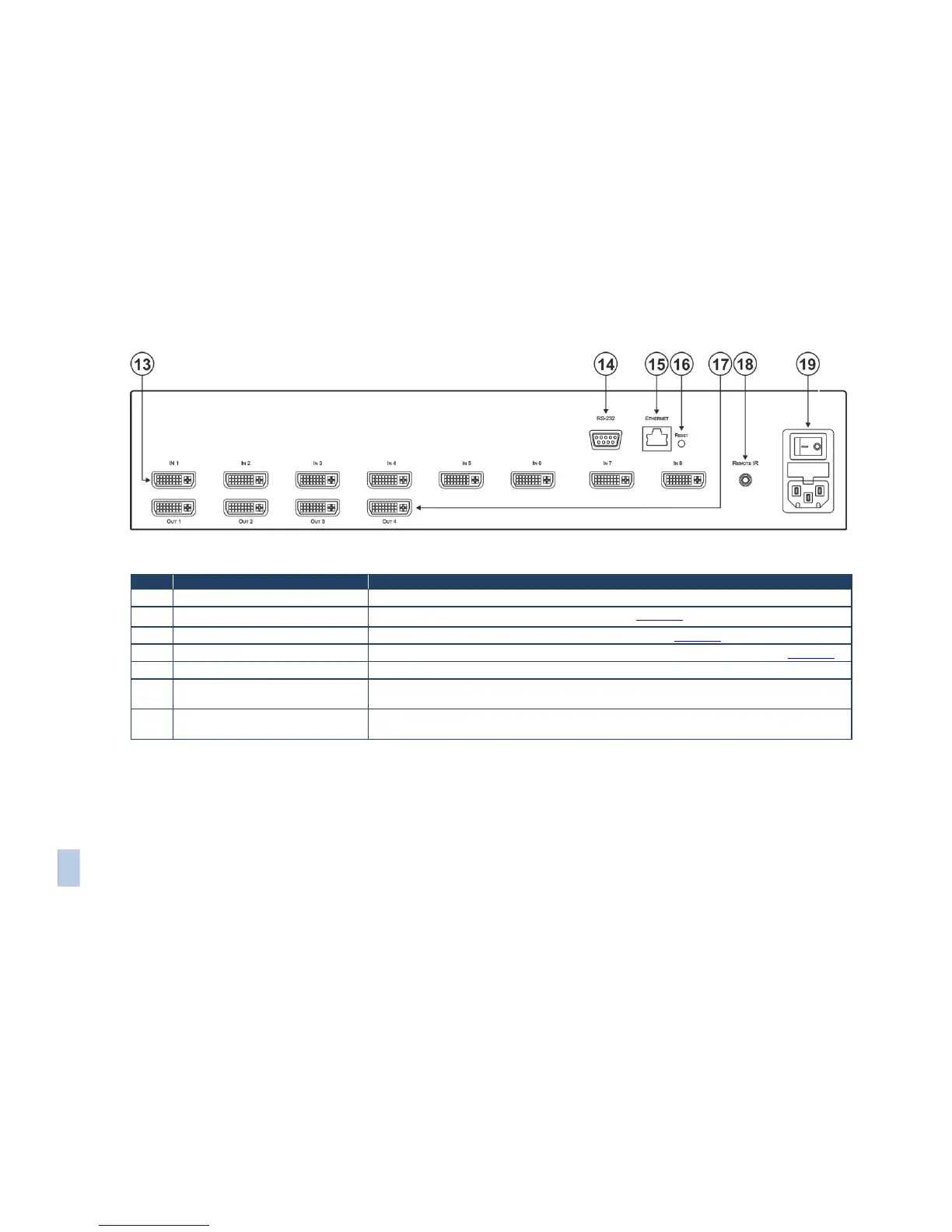

Figure 2: VS-84HDCPxl 8x4 DVI Matrix Switcher Rear Panel
#
Feature
Function
13
INPUT DVI Connectors
Connect to the DVI sources (from 1 to 8)
14
RS-232 9-pin D-sub (F) Connector
Connect to a PC or the serial remote controller (see Section 8)
15
ETHERNET RJ-45 Connector
Connect to a PC or other Ethernet controller via a LAN (see Section 8)
16
RESET Button
Press and hold to reset the Ethernet configuration to its factory default values (see Section 8)
17
OUTPUT DVI Connectors
Connect to the DVI acceptors (from 1 to 4)
18
REMOTE IR 3.5mm Mini Jack
Connect to an external IR receiver unit for controlling the machine via an IR remote controller
(instead of using the front panel IR receiver)
19
Mains Power Connector with Switch
and Fuse
Connect to the AC mains supply and use the switch to turn the device on or off
