Kreg KPHJ230 - Operation; Clamp the Jig and Drill the Holes

6
Operation
5
Clamp the Jig and Drill the Holes

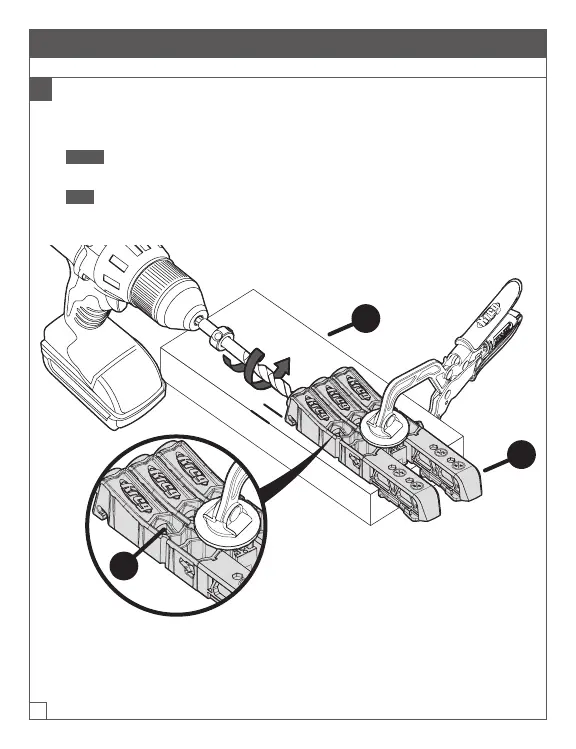

a. Align the material thickness stop (B) to the edge of the workpiece (1).
b. Clamp the jig to the piece.
Note Do not block the chip ejection hole (2).
c. Drill the pocket hole.
Tip Place pocket holes at the recommended distance from edge (X) of
theworkpiece. Seenext section for recommendations.
X
1
B
2
