MODEL #1300/2300
ASSEMBLY
Prior to packing, your machine has been assembled and tested to assure quality performance. However, to
safeguard against damage in shipping, certain items are packaged separately within your carton and will need
assembly. Remove extra drive chain which may be used later to change shredder direction for other applications.
BLOWER DOOR: (See Illustration A)
(Blower Filter must remain in Blower Door.) An appropriate size hose (NOT SUPPLIED) is attached to the Blower
Door input tube and the other end is located elsewhere to provide clean air to blowers. A fine screen (NOT
SUPPLIED), acting as a filter, over end of hose eliminates accumulation of unwanted debris. This will eliminate
frequent cleaning of the Blower Filter. (Frequent inspection of input hose is recommended.)
POWER CORDS: (20-30 amp twist lock inputs only)
Female receptacle(s) need to be wired properly to main power cord(s). (For 240 volt 60 hz. see illustration E and
consult electrician for assistance.) Units shipped to European countries will have standard (2) two prong 230V
16 amp plugs supplied. Units shipped overseas to other than Europe do not have plugs and receptacles on input
cords due to the varying electrical plug configurations in different countries,
unless provided by Krendl agents or
suppliers.
SLIDEGATE HANDLE:
Prior to packing, the slidegate handle was assembled backwards to safeguard against damage in shipping.
Remove handle and reinstall, so handle sticks out back of machine. Do not over tighten nut, so handle is free
to spin.
ASSEMBLY OF OPTIONS: (See illustration A)
5" Wheel Package: (standard or heavy duty)
Attach two swivel casters on airlock end of machine for increased mobility. Mount rigid casters on blower end
with the hex bolts provided.
Bushing Reducer: (3" output)
Bushing reducer inserts into output tube of airlock. Press reducer firmly against shoulder and tighten two hold-
down bolts to secure unit in place. The bushing reduces the size of opening at the airlock to match the hose,
providing a more consistent feed while preventing plugged hoses. (Standard output tube on model #1300 and
#2300 is 3".)

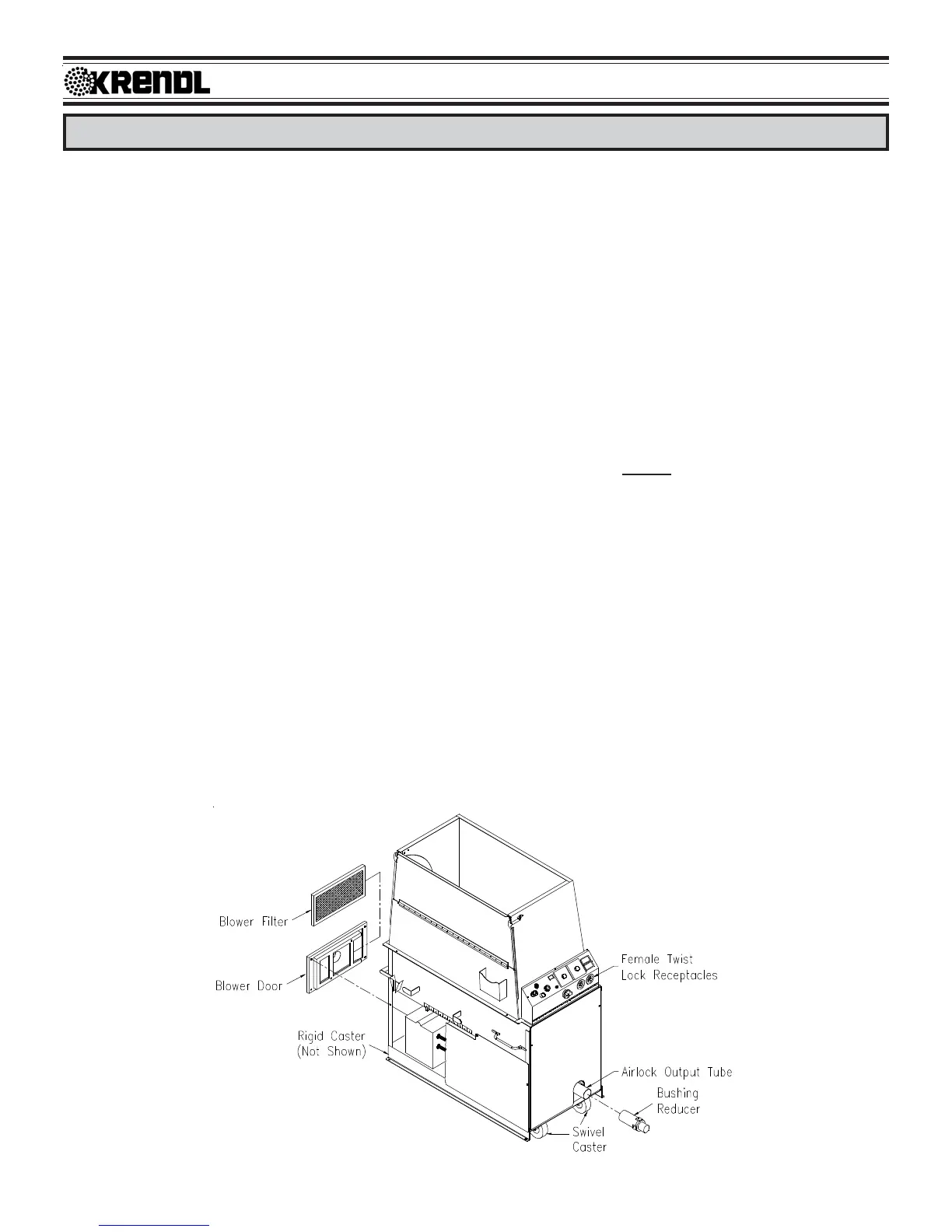

(Illustration A)
To Next Page
