Rev. Date: 12/27/17 Page 10
MODEL #1300/2300
OPERATING INSTRUCTIONS
Machine Hook-up
This unit comes ready for connection to insulation hose, power cords, and accessories.
The #1300 and #2300 provide a direct connection to 3" insulation hose. Slide hose on to outlet and
secure with a hose clamp. All hose connections must have hose clamps to prevent air leakage from
blower to nozzle. This helps to prevent hose plugging.
Remove remote control cord, packet, accessories, ect. from hopper and plug remote control cord into Main
Control Panel Box located on hopper. (See Illustration C)
The first bag of insulation into hopper should be well broken by hand to assist agitator action. Caution:
Never put hands in hopper when machine is running or force feed material by pushing down on insulation.
When assembling unit, make sure remote control hand pendant switch is in the off (middle) position and
close slidegate.
1. Connect power to Input Cord(s) located below Main Control Panel. (See Illustration C)
On double input units, both input cords must be supplied with power from two separate sources for
unit to work properly. One 20 amp plug must be plugged into one circuit and the 30 amp plug plugged
into a seperate circuit from the 20 amp. When using extension power cords, wire gauge size should
not be less than input cord on unit and not to exceed 50' in length. (See Voltage Drop Chart On
Next Page.)

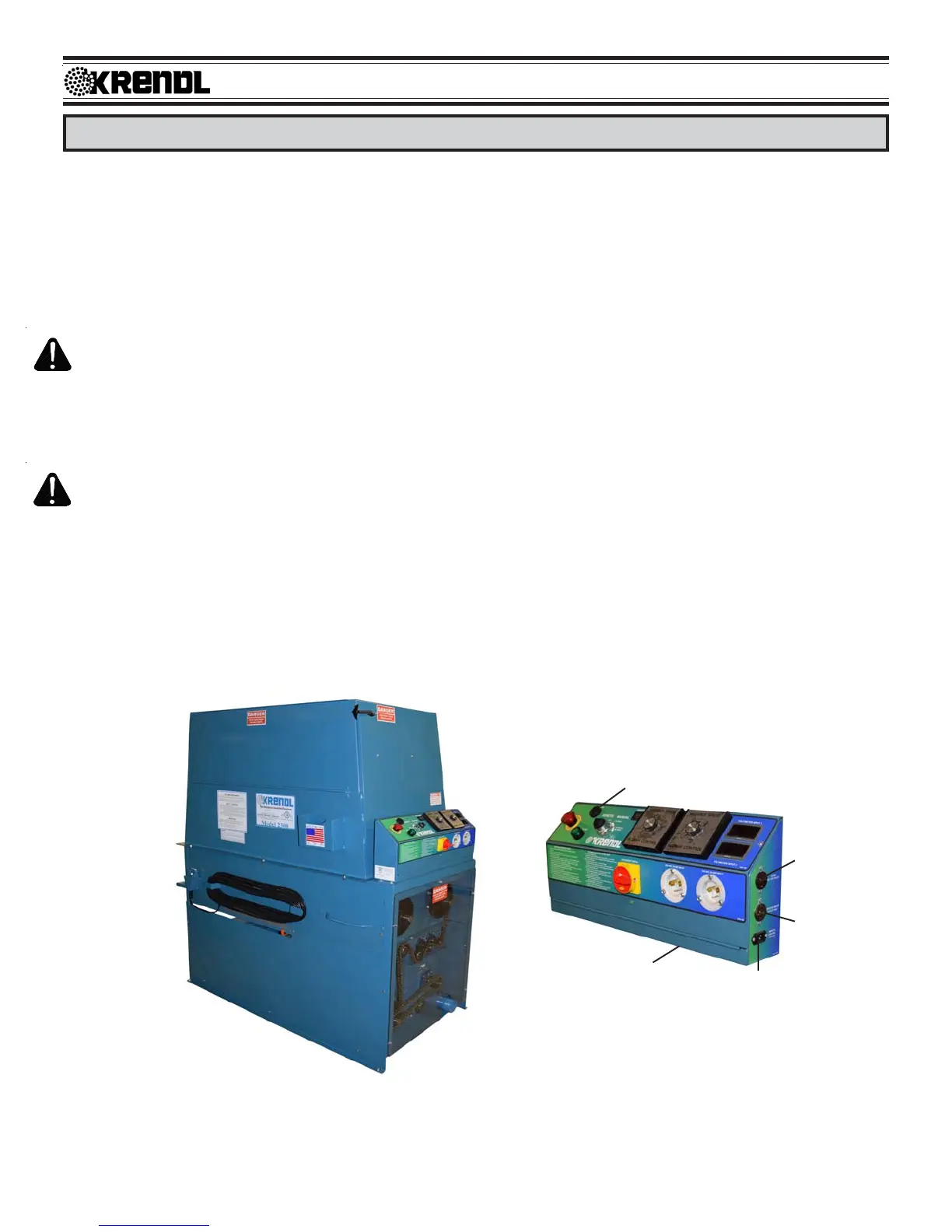

(Illustration C)
24 VDC
ON/OFF Outlet
Alarm
Remote Control Outlet
Main Control Panel
Wireless
Remote Outlet
Slidegate Control
(Located on back
of machine)
To Next Page
