MODEL #1300/2300

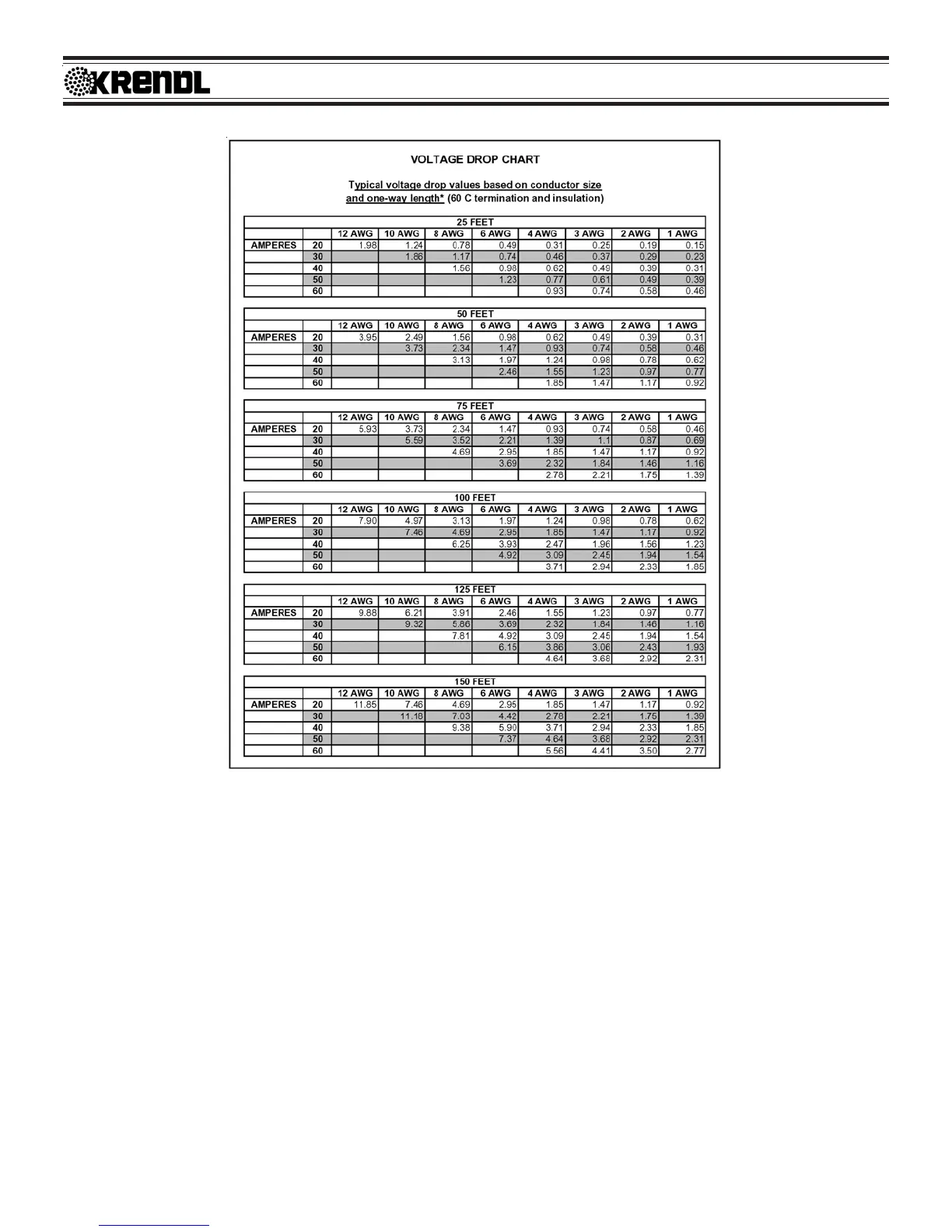

Ex: A two-wire 20-ampere circuit using 12 AWG with a one-way distance of 25 feet will drop 1.98 volts;
120 volts - 1.98 volts = 118.02 volts as the load voltage.
230 volts - 1.98 volts = 228.02 volts as the load voltage.
240 volts - 1.98 volts = 238.02 volts as the load voltage.
Caution: Operating unit with less than required voltage, more than required voltage, or inadequate
generator size will result in damage to electrical components. This machine is marked on the front of
the Main Control Panel with the correct input voltage required.
Note: Agitator motor and blower(s)
should only be operated with steady or constant flow of electricity.
Do not operate machine with less
than or more than required voltage. Damage to motors and other electrical parts will result, voiding
warranty. Check voltmeter(s) on Main Control Panel when machine is running. Note: The plugs that
were supplied with the machine will need replaced when using portable power. See instructions below.
a. For 120volt, 60hz. models only, replace the 30 amp plug that was supplied on the machine
with the 50 amp plug that was included as an option. Then take the 30 amp plug that was just
removed and change it out with the 20 amp plug, thus indicating using 2 seperate circuits.
b. For 240volt, 60hz. models only, replace the 30 amp plug that was supplied on the machine
with the 50 amp plug that is provided, thus indicating using 1 single circuit.
