Rev. Date: 12/27/17 Page 4
MODEL #1300/2300
Manufacturer information is provided here
along with machine model, and serial number.
Identifies position of material feed gate.

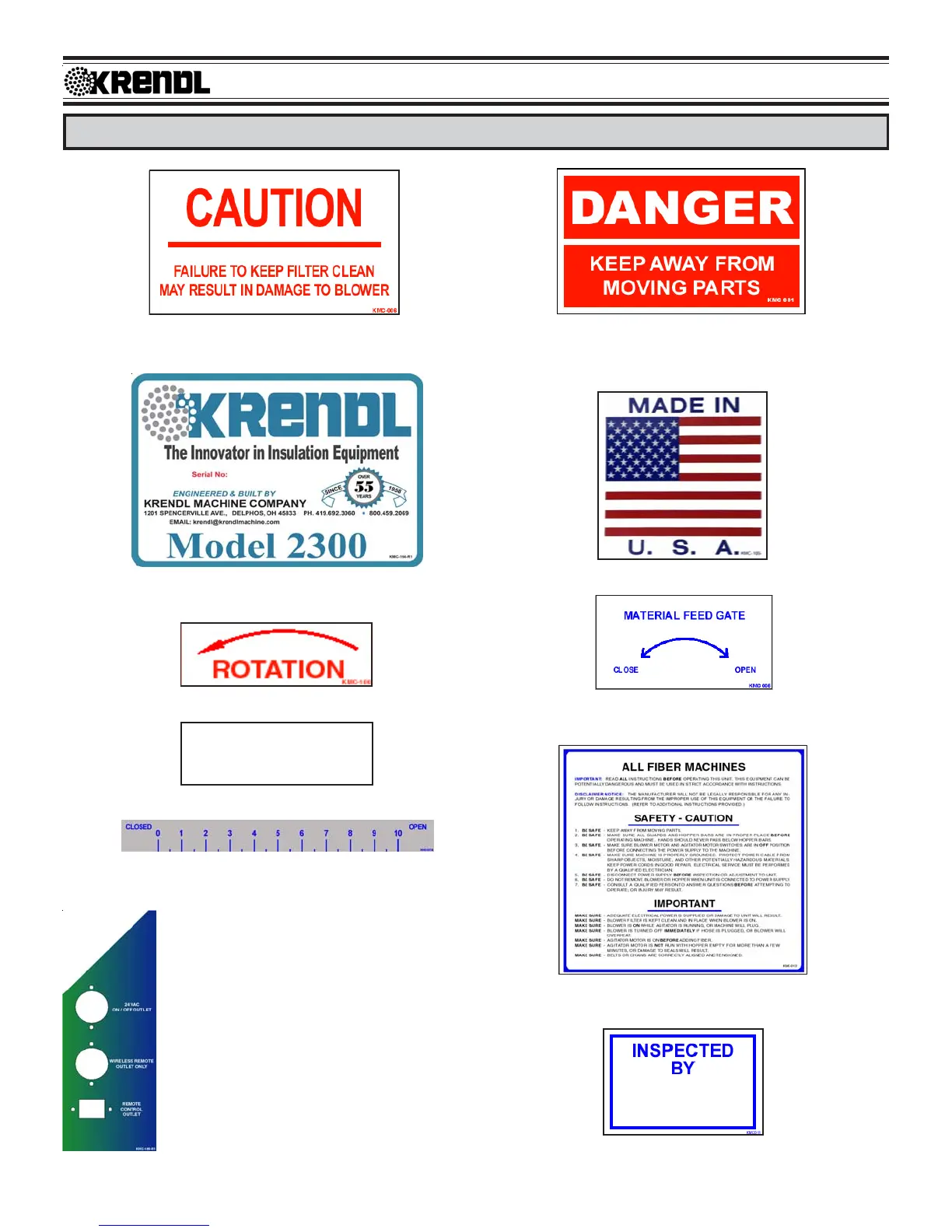

DECALS
Keeping the filter clean will result in longer
blower life and better performances.
Rotating parts can be dangerous! You can
snag clothes, hair, hands, etc. This can
cause serious injury or death.
General safety information intended to reduce
the risk of serious injury or death
Opens and closes the material feed gate
which in turn controls the production.
Made in the U.S.A.
Rotating parts will be moving in this direction.
Indicates which employee date equipment
was inspected.
KMC-01234
Part number for identication and tracking.
Identifies the three outlets on this side of machine.
24VAC On/Off Outlet - Specifies the voltage this
outlet is rated for. Power turns on and off with
agitator.
Wireless Remote Outlet - Indicates that this outlet
is intended for only the wireless remote. Each
time machine cycle starts, an audible alarm warns
the operator that the machine is about to come on.
Remote Control Outlet - Indicates that this outlet
is intended for only the remote control outlet. Each
time machine cycle starts, an audible alarm warns
the operator that the machine is about to come on.
