Rev. Date: 12/27/17 Page 5
MODEL #1300/2300

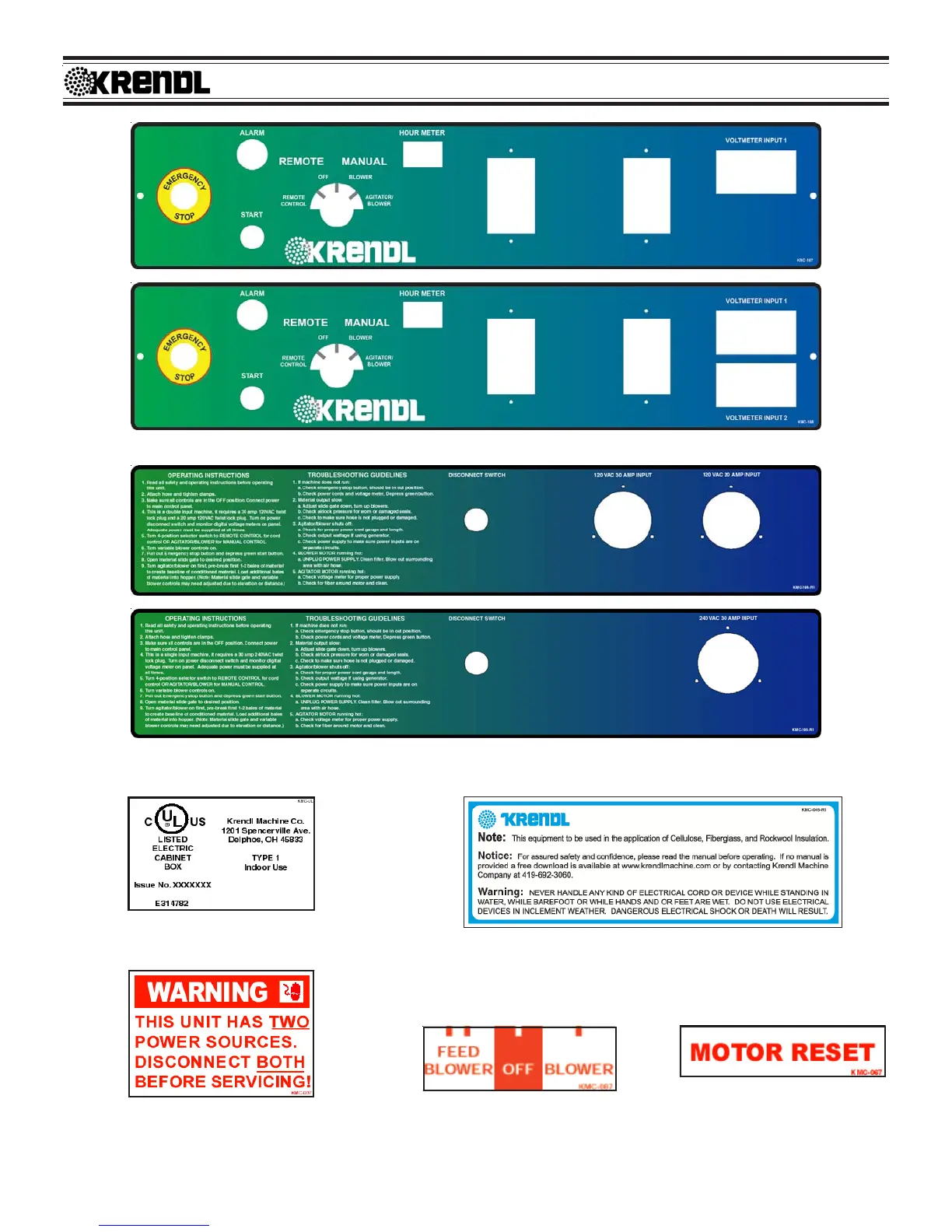

Indicates if blower is off, on,
or on with agitator.
Indicates that the electrical box on the machine
is in compliance with UL codes.
Reset button for motor.
Identifies what type of insulation should be used with this
machine and that the manual should be read before operat-
ing. Warns to be careful around electrical components!
This can cause serious injury or death.
Indicates the controls that start, stop, and run the machine.
Provides the necessary instructions to properly operate and troubleshoot the machine.
Failure to follow these instructions could result in damage to the machine.
Indicates this unit has two power sources that
should be disconnected before servicing to re-
duce the risk of serious injury or death.
