Rev. Date: 12/27/17 Page 12
MODEL #1300/2300
(Illustration D-1)

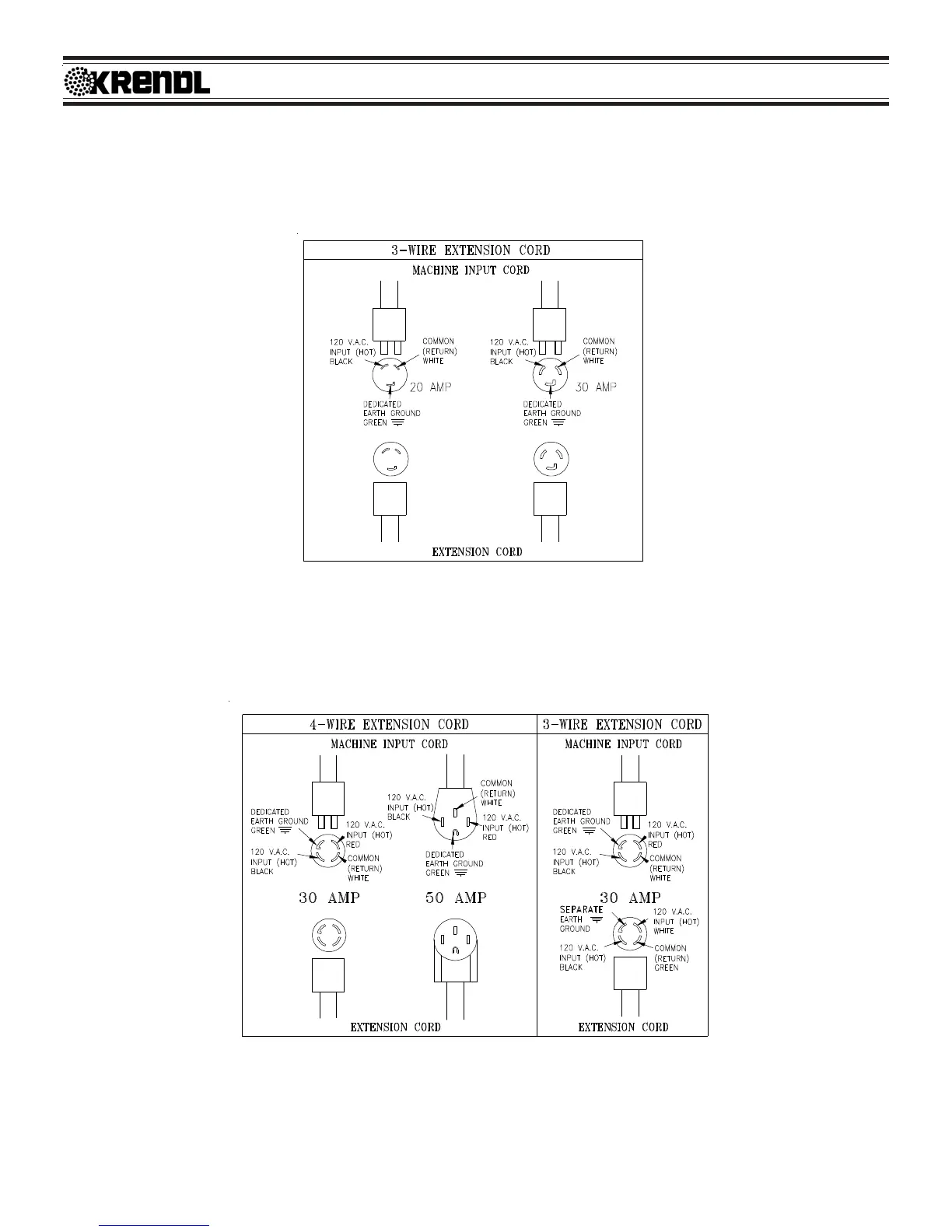

Electrical Hook-up for 240volt, 60hz.
IMPORTANT NOTE FOR 3-WIRE CORD:
A separate isolated ground is required that connects the frame of the machine to an earth ground source.
Serious injury or death may result if machine is not properly grounded. If you have any further questions, consult
a qualified electrician.
Machine Hook-up (cont.)
3. For 240volt, 60hz. models only, properly connect female receptacle to extension cord. See Illustration
D -1and consult electrician for assistance.
2. For 120volt, 60hz. models only, properly connect female receptacle to extension cord. See Illustration D
and consult electrician for assistance.
(Illustration D)
Electrical Hook-up for 120volt, 60hz.
