Krendl 1300 - Page 46

Rev. Date: 12/27/17 Page 43
MODEL #1300/2300
BLOWER CONTROL
VARIABLE SPEED
VARIABLE SPEED
BLOWER CONTROL
OFF
REMOTE
CONTROL
BLOWER
BLOWER
AGITATOR/
REMOTE MANUAL
HOURMETER
ALARM
START
VOLTMETER INPUT1
VOLTMETER INPUT2
EMERGENCY
STOP
Description
Box, Electrical
Receptacle, NEMA #6-15R
Receptacle, NEMA #5-15R
Pre-Alarm System
Receptacle, RC, Plug, #509-1050
Voltmeter, Digital 120V (2)
Dinrail, 1 3/8", 16"L
Clamp, f/ 1 3/8" Din Rail (2)
Switch, Disconnect Assy 3P
Switch, 4-Position Selector
Contact Block, Selector Switch
(white) #KA-1 (not shown)
Contact Block, Selector Switch
(red) #KA-3 (3) (not shown)
Pushbutton On, Green
Contact Block 22mm Green (2)
(Pushbutton not shown)
MODEL #1300/2300 120 V.A.C. 60 Hz.
ELECTRICAL PARTS LIST (ELU15-109068)
Item#
40-1
40-2
40-3
40-4
40-5
40-6
40-7
40-8
40-9
40-10
40-11
40-12
40-13
40-14
Part#
543-M-102-R1
132-B
1544
543-M-38
543-M-2
543-M-83
ELU12-A
151080-49
600-R-01
543-M-22
543-M-15
543-M-16
543-M-14
8075-2

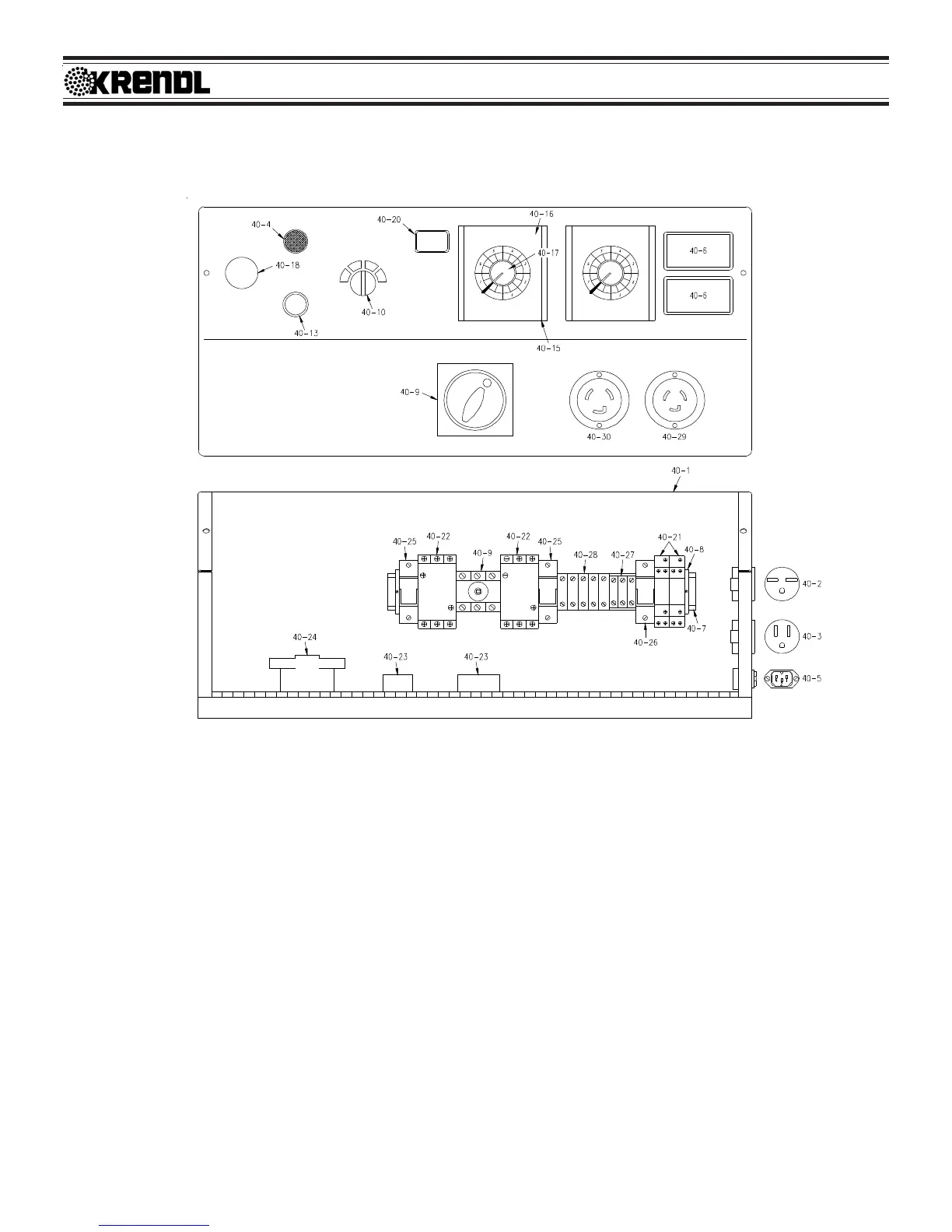

Electrical Exploded Parts List
Item#
40-15
40-16
40-17
40-18
40-19
40-20
40-21
40-22
40-23
40-24
40-25
40-26
40-27
40-28
40-29
40-30
Part#
419-A
420-1
420-2
508-2
8075-1
543-M-77
RELAY-10
ELU11-5
ELU10-10
1530-D
BRKR-16
BRKR-2
151080-61
151080-62
543-M-79
543-M-67
Description
Blower Control (120V, 60Hz.) (2)
Cover, Blower Control (2)
Knob, Blower Control (2)
Switch, Kill, Red
Contact Block (Not Shown)
Hour Meter
Timer / Relay SPDT 12-240VAC 15A (2)
GE Contactor / Relay 25 Amp (2)
Relay, Contactor/Relay, 120V Control
Transformer, 4 Amp
Breaker, 16 Amp (2)
Breaker, 2 Amp
Terminal Block, Small (4)
Terminal Block, Large (4)
20 Amp Flange 120V TL
30 Amp Flange 120V TL
