6 TECHNICAL DATA
30
OPTIMASS 7000
www.krohne.com 10/2015 - 4001016303 - MA OPTIMASS 7000 R03 en
Technical data
6.1 Measuring principle (single tube)
A Coriolis single tube mass flowmeter consists of a single measuring tube 1 a drive coil 2 and
two sensors (3 and 4) that are positioned either side of the drive coil.
When the meter is energised, the drive coil vibrates the measuring tube causing it to oscillate
and produce a sine wave 3. The sine wave is monitored by the two sensors.

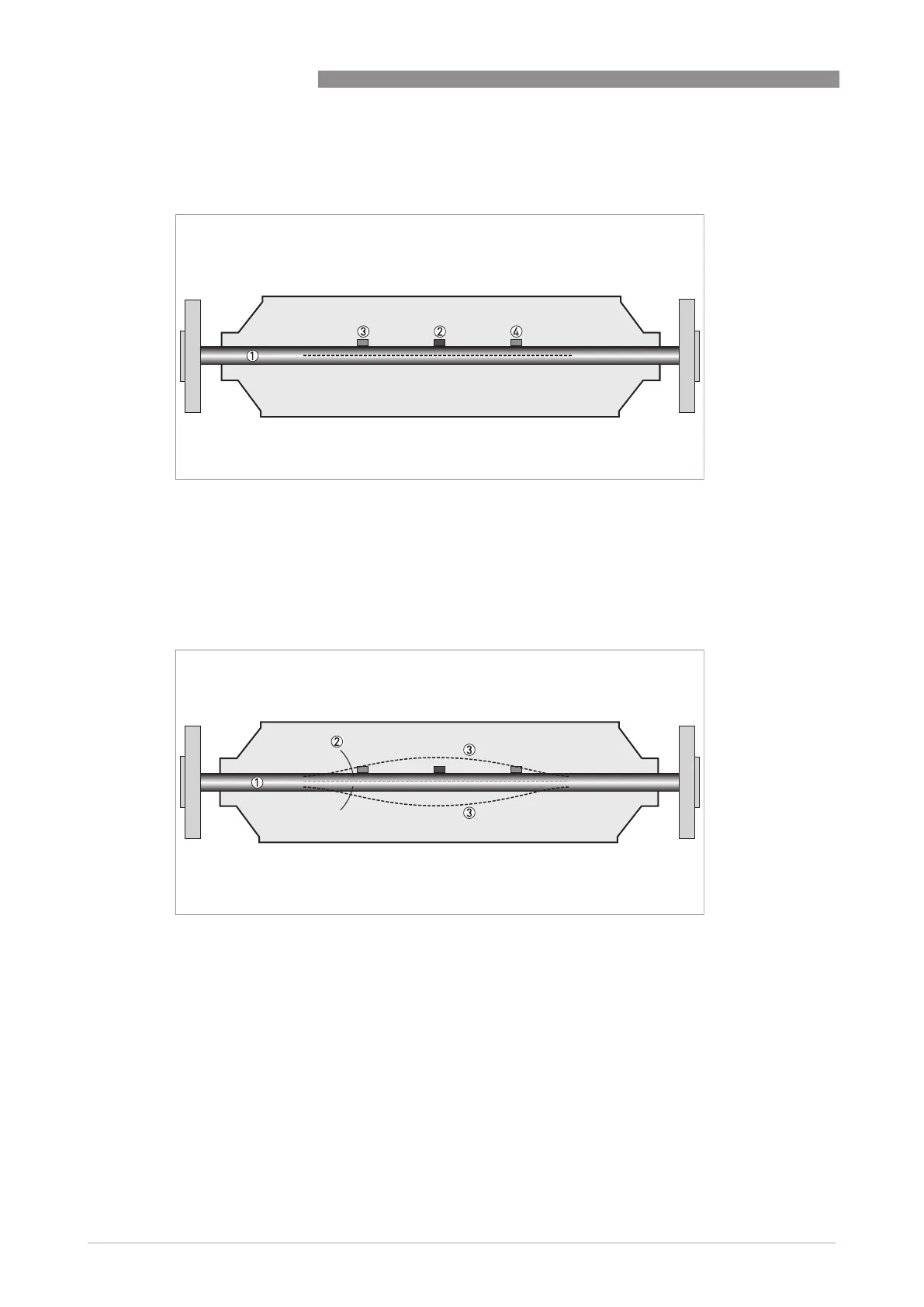

Static meter not energised and with no flow
1 Measuring tube
2 Drive coil
3 Sensor 1
4 Sensor 2
Energised meter
1 Measuring tubes
2 Direction of oscilation
3 Sine wave
