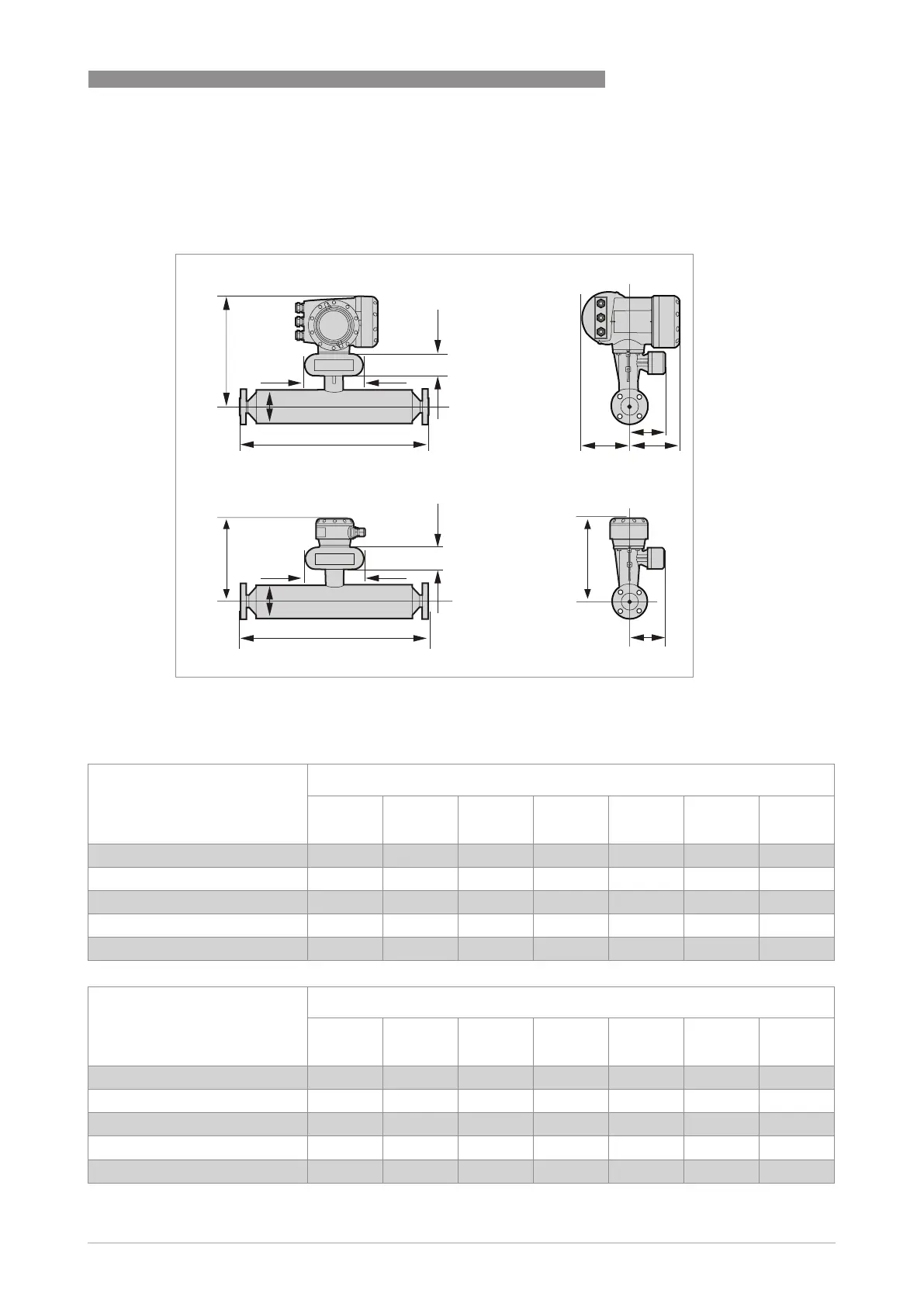

6.5 Dimensions and weights
6.5.1 Flanged versions
Meter weights for Titanium (T), Stainless Steel (S), Hastelloy
®
(H) and Tantalum (A)
1 Compact version
2 Remote version
C1
E
E
H
FG
D
B
B
2
1
D
H
A
A
C2
C2
Weight [kg]
T/S 06 T/S/H/A
10
T/S/H/A
15
T/S/H/A
25
T/S/H/A
40
T/S/H/A
50
T/H 80
Aluminium (compact) 18.5 23 26 37 83 147 265
Stainless Steel (compact) 25.2 29.7 32.7 43.7 89.7 153.7 271.7
Aluminium (remote) 15.7 20.2 23.2 34.2 80.2 144.2 262.2
Stainless Steel (remote) 16.5 21 24 35 81 145 263
Tantalum add - 1.8 2.7 4.5 9.2 15.1 -
Weight [lbs]
T/S 06 T/S/H/A
10
T/S/H/A
15
T/S/H/A
25
T/S/H/A
40
T/S/H/A
50
T/H 80
Aluminium (compact) 40.7 50.6 57.2 81.4 182.6 323.4 583
Stainless Steel (compact) 55.4 65.3 71.9 96.1 197.3 338.1 597.7
Aluminium (remote) 34.5 44.4 51 75.2 176.4 317.2 576.8
Stainless Steel (remote) 36.3 46.2 52.8 77 178.2 319 578.6
Tantalum add - 4 5.9 9.9 20.2 33.2 -
