6 TECHNICAL DATA
46
OPTIMASS 7000
www.krohne.com 10/2015 - 4001016303 - MA OPTIMASS 7000 R03 en

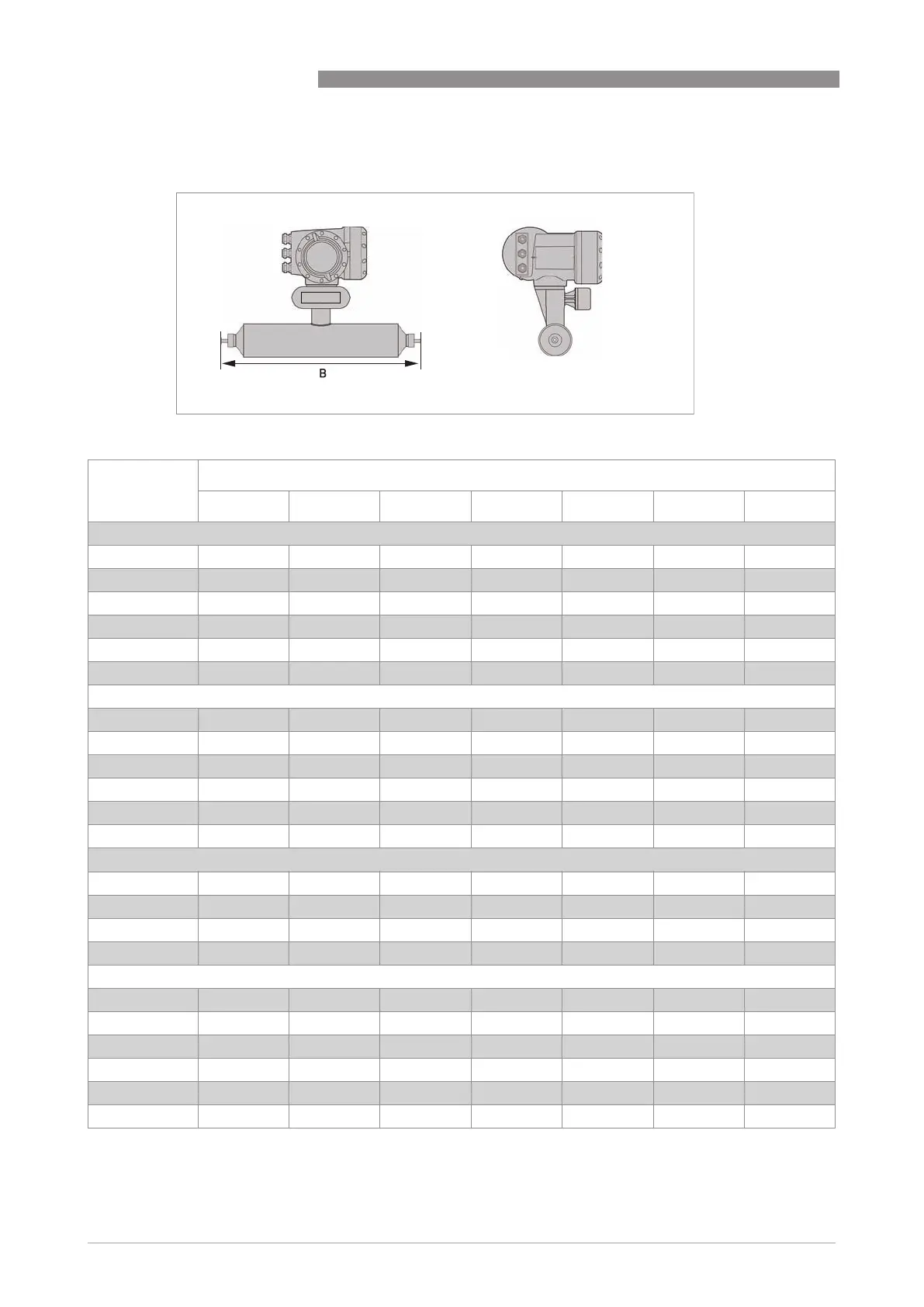

6.5.2 Hygienic versions
Hygienic connections: all welded versions
Dimension B [mm]
T/S 06 T/S 10 T/S 15 T/S 25 T/S 40 T/S 50 T/S 80
Tri-clover
Tri-cloverTri-clover
Tri-clover
½" 480 ±2 558 ±2 - - - - -
¾" - - 596 ±2 - - - -
1½" - - - 816 ±2 - -- -
2" - - - - 1043 - -
3" - - - - - 1305 ±2 -
4" - - - - - - 1527 ±2
Tri-clamp DIN 32676
Tri-clamp DIN 32676Tri-clamp DIN 32676
Tri-clamp DIN 32676
DN10 484 ±2 564 ±2 - - - - -
DN15 - - 602 ±2 - - - -
DN25 - - - 761 ±2 - - -
DN40 - - - - 986 ±2 - -
DN50 - - - - - 1168 ±2 -
DN80 - - - - - - 1584 ±2
Tri-clamp ISO 2852
Tri-clamp ISO 2852Tri-clamp ISO 2852
Tri-clamp ISO 2852
1½" - - - 816 ±2 - - -
2" - - - - 1043 ±2 - -
3" - - - - - 1305 ±2 -
4" - - - - - - 1527 ±2
DIN 11864-2 form A
DIN 11864-2 form ADIN 11864-2 form A
DIN 11864-2 form A
DN10 - 528 ±2 - - - - -
DN15 - - 566 ±2 - - - -
DN25 - - - 718 ±2 - - -
DN40 - - - - 948 ±2 - -
DN50 - - - - - 1124 ±2 -
DN80 - - - - - - 1538 ±2
