6 TECHNICAL DATA
52
OPTIMASS 7000
www.krohne.com 10/2015 - 4001016303 - MA OPTIMASS 7000 R03 en
6.5.3 Heating jacket version

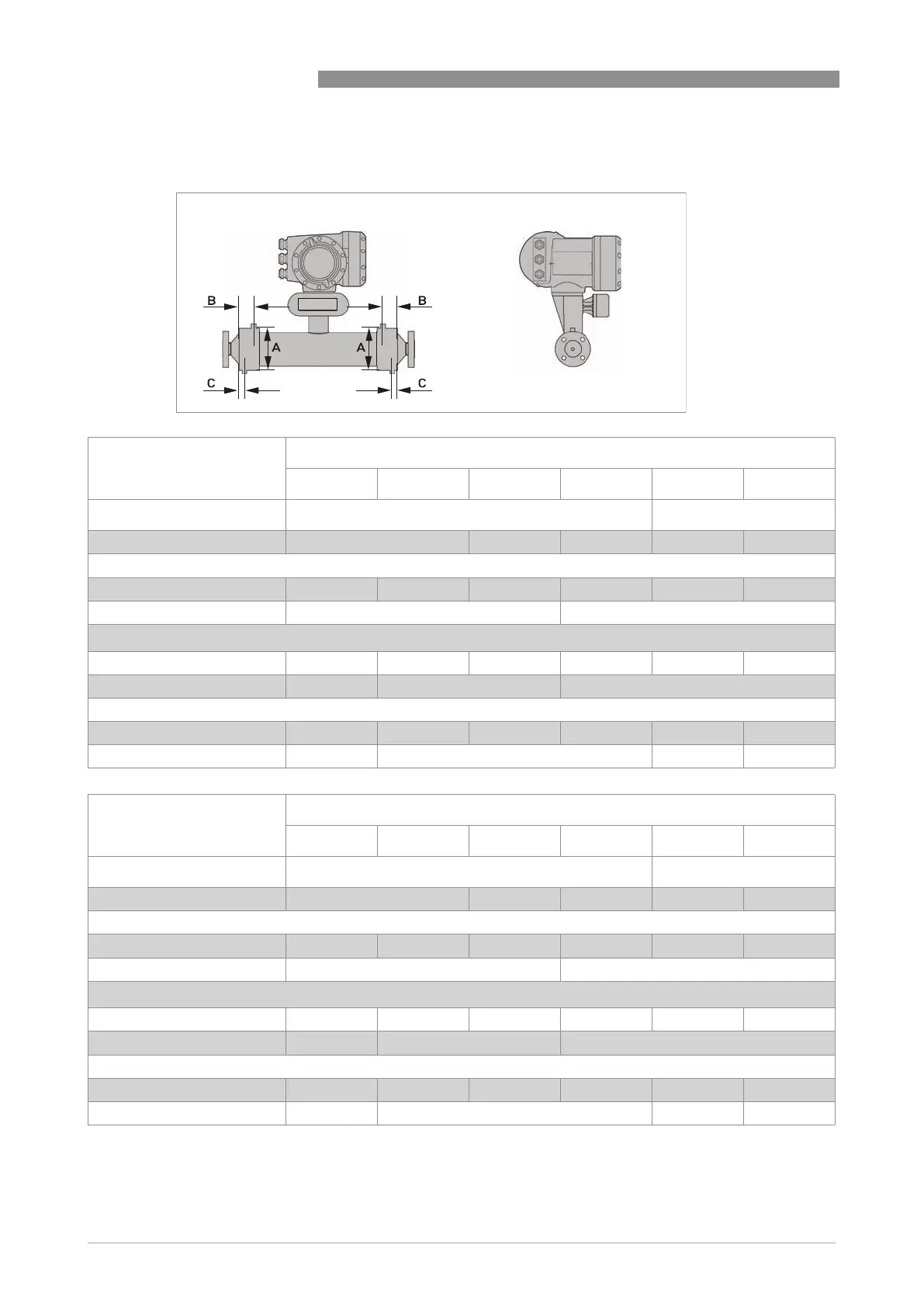

Dimensions [mm]
10 15 25 40 50 80
Heating connection size 12 mm (ERMETO) 25 mm (ERMETO)
A 115 ±1 142 ±1 206 ±1 254 ±1 305 ± 1
Titanium
TitaniumTitanium
Titanium
B 36 ±1 51 ±1 100 ±1 90 ±1 175 ±1 385 ±1
C 20 26 ±1
Stainless Steel & Hastelloy
Stainless Steel & HastelloyStainless Steel & Hastelloy
Stainless Steel & Hastelloy
®
B - 51 ±1 55 ±1 90 ±1 100 ±2 200 ±2
C - 20 26 ±1
Tantalum
TantalumTantalum
Tantalum
B - 51 ±1 55 ±1 90 ±1 100 ±1 -
C - 20 26 ±1 -
Dimensions [inches]
10 15 25 40 50 80
Heating connection size ½" (NPTF) 1" (NPTF)
A 4.5 ±0.04 5.6 ±0.04 8.1 ±0.04 10 ±0.04 12 ±0.04
Titanium
TitaniumTitanium
Titanium
B 1.4 ±0.04 2 ±0.04 3.9 ±0.04 3.5 ±0.04 6.9 ±0.04 15.2 ±0.04
C 0.8 1.0 ±0.04
Stainless Steel & Hastelloy
Stainless Steel & HastelloyStainless Steel & Hastelloy
Stainless Steel & Hastelloy
®
B - 2 ±0.04 2.2 ±0.04 3.5 ±0.04 3.9 ±0.08 7.9 ±0.08
C - 0.8 1.0 ±0.04
Tantalum
TantalumTantalum
Tantalum
B - 2 ±0.04 2.2 ±0.04 3.5 ±0.04 3.9 ±0.04 -
C - 0.8 1.0 ±0.04 -
