Special equipment
103
Pos: 37.24 /BA/So nderausstatung /EasyCut / AM M ähwerke/Qu erförderer/Einstellu ng Transp ortband @ 10\ mod_1222333861 895_78.doc x @ 140480 @ @ 1
14.9 Setting Conveyor Belt
The conveyor belt must be tensioned to an expansion of approx. 0.6%.
4
EC-202-0
3

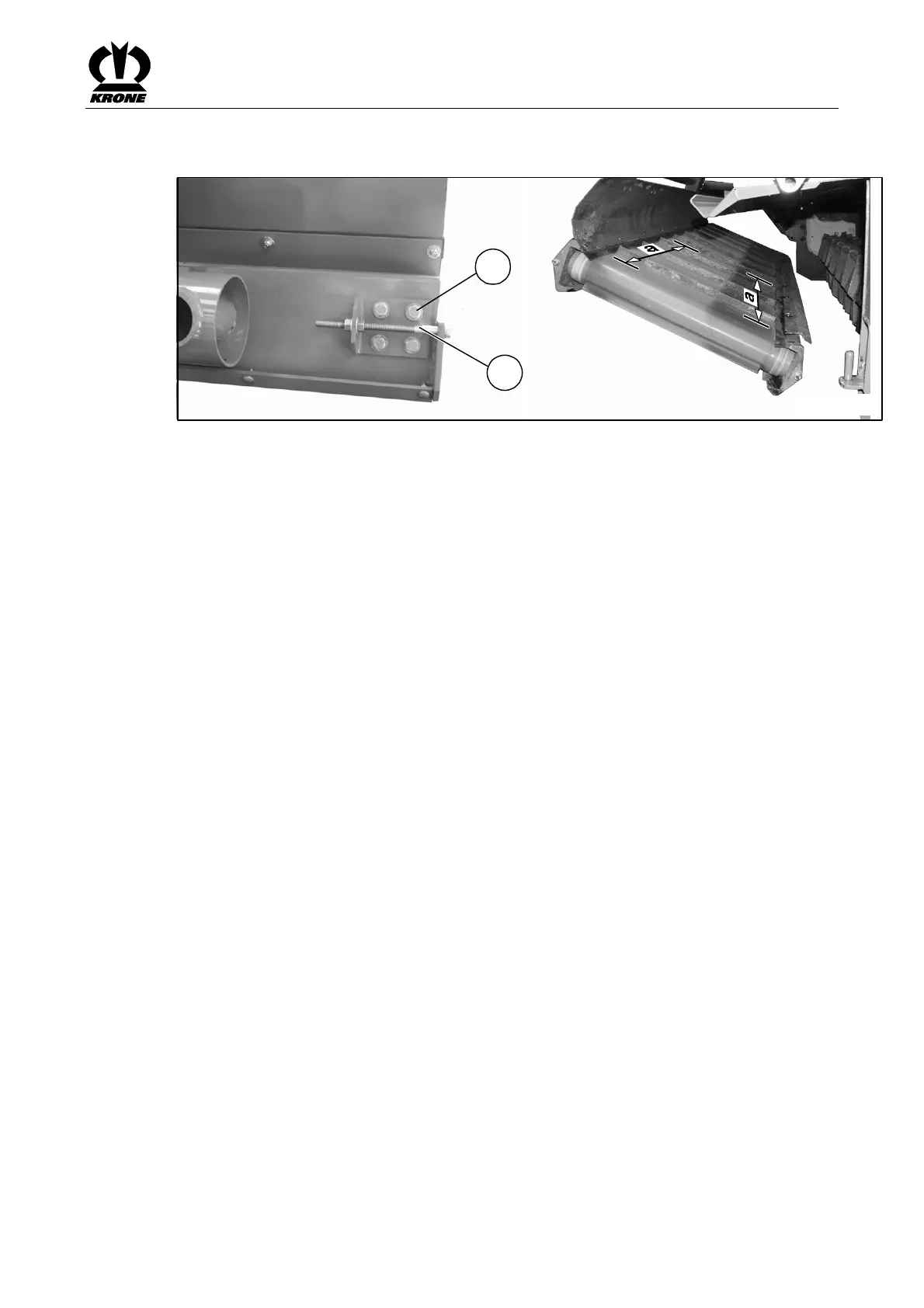

Figure. 66
To do this:
• Loosen the bearing bolts (4) on the right-hand and left-hand sides of the conveyor belt.
• Use the adjustment screws (3) on the right-hand and left-hand sides to relieve the
conveyor belt.
• Mark the conveyor belt at a distance of a = 1000 mm.
• Use the adjustment screws (3) to tighten the conveyor belt until the marks have a
dimension of a = 1006 mm.
• Tighten the bearing bolts (4) on the right and left (see in Maintenance chapter "Tightening
Torques").
