Operation
43
Pos: 22.12 /BA/Be dienung /Eas yCut/Maschine is tf ür Vorwärtsf ahrt konzipiert. @ 10\mod_1 222262401875_ 78.docx @ 1393 54 @ @ 1
Warning! - Do not drive in reverse when using the machine for work.
Effect: Damage to the machine.
The machine is designed to travel forwards. Never reverse while the machine is in operation
and in working position. Lift the machine first.
Pos: 22.13 /Übersc hriften/Überschrif ten 3/P-T/Sch utzeinrichtu ng herunter klappen@ 9\mod _1220881079079_ 78.docx @ 12 8594 @ @ 1
8.2.1 Folding down the Safety Device
Pos: 22.14 /BA/Sic herheit/Gefahre nhinweise/Mä hwerke/Gefahr - Fortschleud ern von Steinen @ 84\mod_13 18311844997_7 8.docx @ 733 435 @ @ 1
DANGER! – Stones forcibly projected during operation
Effect: Danger to life or serious injuries.
• Check the guard cloths regularly. Worn or damaged guard cloths must be replaced!
• The protective equipment on the mowing unit, e.g. cloths and hoods, protects against
flying stones and similar objects, and also prevents access to dangerous parts. Because
of this, you must always move it to its protective position before starting work
• Fold the side plate(s) down and secure with twist locks before use
Pos: 22.15 /BA/Be dienung /Eas yCut/Schutze/Sc hutzeinrichtung herunterkla ppen Bild EC 28 01/3201 @ 38\ mod_1265698942 198_78.doc x @ 349035 @ @ 1

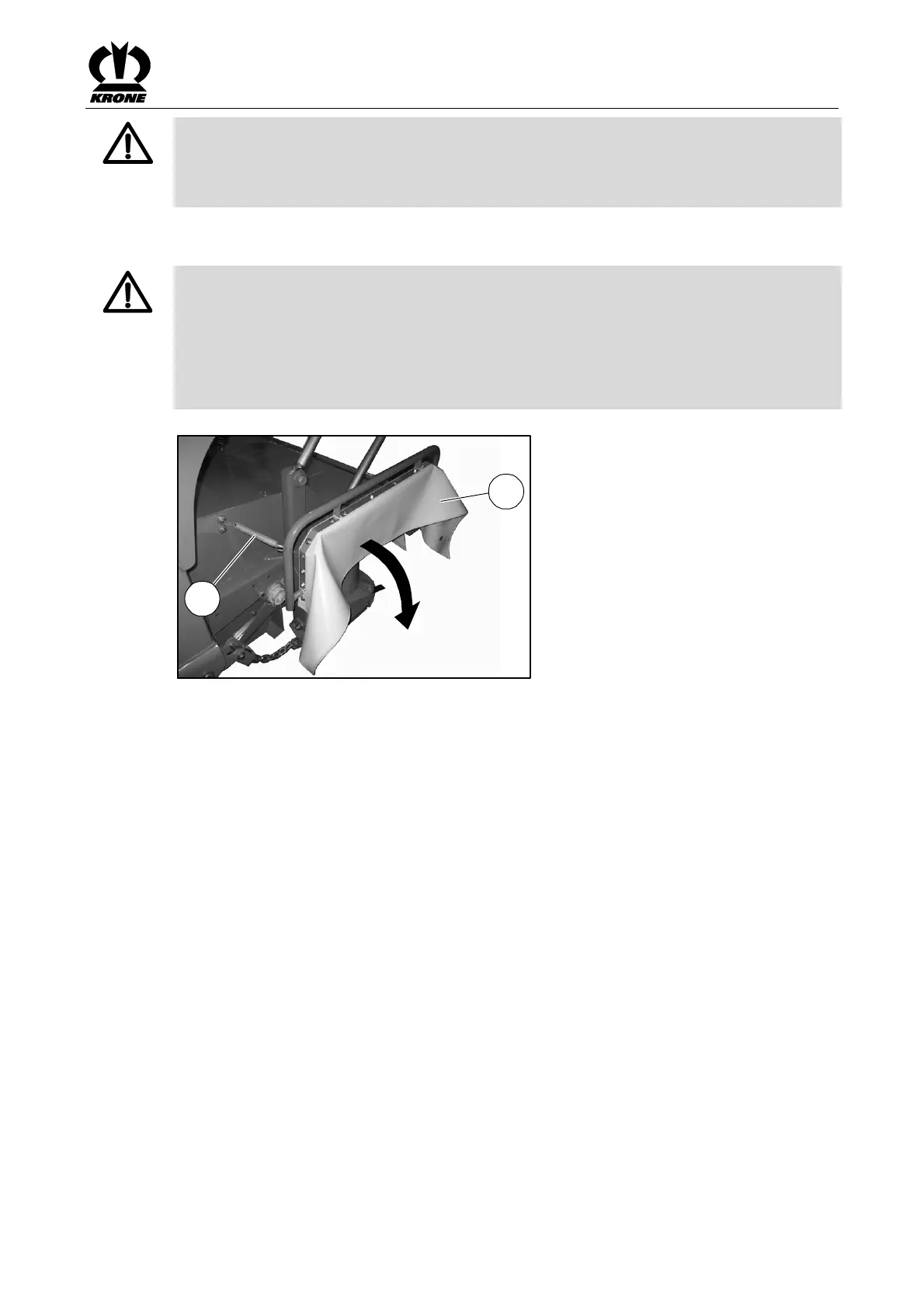

EC-305-0
2
1
Figure 19
Pos: 22.16 /BA/Be dienung /Eas yCut/Schutze/Sc hutzeinrichtung herunterkla ppen Text EC 280 0/3200 @ 10\m od_12221531 47826_78.doc x@ 138945 @ 2 @ 1
Fold down the protective devices (1) (guard cloths) on the left and right side before operation.
Pos: 22.17 /BA/Be dienung /Eas yCut/Schutze/Sc hutzeinrichtung herunterkla ppen Zusatz Te xtEC 2801/3201 @ 38\mod_1 265699987948_ 78.docx @ 3490 62 @ @ 1
To do this, first loosen the spring (2).
