8 Operation
Pos: 22.2 /Übersc hriften/Übersc hriften 2/U-Z/Vo nTr ansport in Ar beitsstellung @ 2\mod_120 2466185276_78.d ocx @ 5966 2@ @ 1
8.1 From transport into working position
Pos: 22.3 /BA/Sich erheit/Gefahr enhinweise/M ähwerke/Gefahr - A bsenken des Mä hwerks in Arbeitsstellung EC 2800/3200 @ 10\mod_12 22151052201_7 8.docx @ 138 855 @ @ 1
Danger! - Swivelling the mowing unit into working position
Effect: Danger to life, injuries or damage to the machine.
• Do not swivel the machine into its working position until you are absolutely sure that
neither persons, animals nor objects are in the swivel range of the mowing unit.
• Lower the mowing unit only when you are absolutely sure that neither persons, animals
nor objects are in the swivel range of the mowing unit.
• Switch on the PTO only when the mowing unit is resting on the ground.
Pos: 22.4 /BA/Bedi enung /EasyC ut/Von Trans port in Arbeitsst ellung Bild EC 2 800C V/3200 C V @ 10\mod_1 22215119754 5_78.docx @ 1388 79 @ 3 @ 1

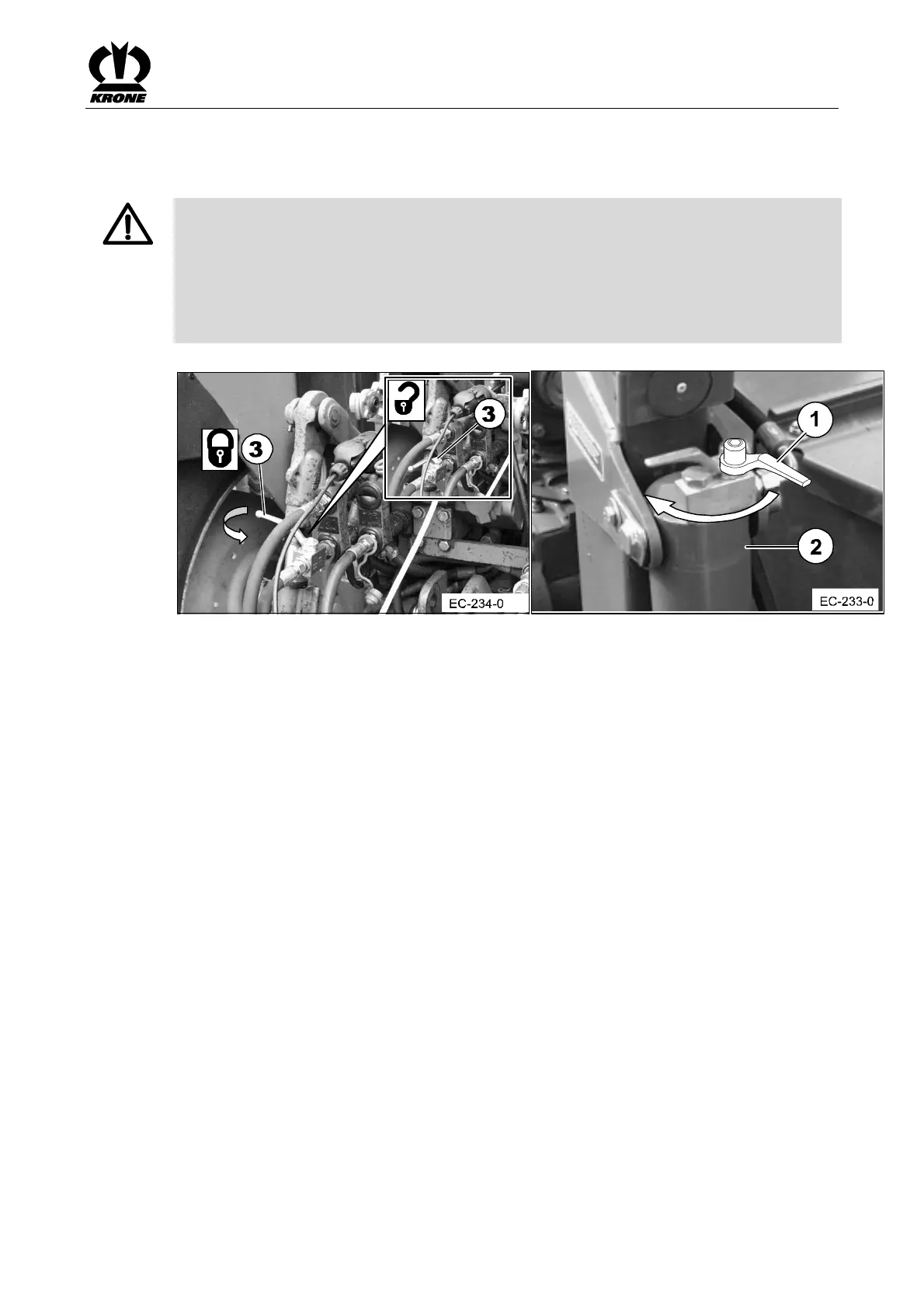

Figure 18
Pos: 22.5 /BA/Bedi enung /EasyC ut/Von Trans port in Arbeitsst ellung Text EC 2800/3200 @ 1 0\mod_12221 51283264_78.d ocx @ 138901 @ @ 1
To do this:
• Open the shut-off valve (1) on the left lifting cylinder (2) of the wheel arm.
• Open the shut-off valve (3) on the pressure hose to the double-acting swivel cylinder
(working, transport position).
• Activate the double-action (red2/blue2) control unit (1) on the tractor to swivel the
machine into working position.
• Activate the single-action (red1) control unit (2) on the tractor to lower the mowing unit.
