Commissioning
25
Pos: 16.15 /Übersc hriften/Überschrif ten 2/F-J/G elenkwelle @ 0\mod_11997 81879794_78.d ocx @ 34542 @ 2 @ 1
5.4 PTO shaft
Pos: 16.16 /Übersc hriften/Überschrif ten 3/K-O/L ängenanpass ung @ 1\mod_12 01687632810 _78.docx @ 5358 9 @ 3 @ 1
5.4.1 Length adjustment
Pos: 16.17 /BA/I nbetriebnahme/ Erstinbetriebna hme/Gelenkwelle/M ähwerke Längenanpassung Bil d EC2800/3 200 @ 10\ mod_122181457182 0_78.docx @ 1 38104 @ @ 1

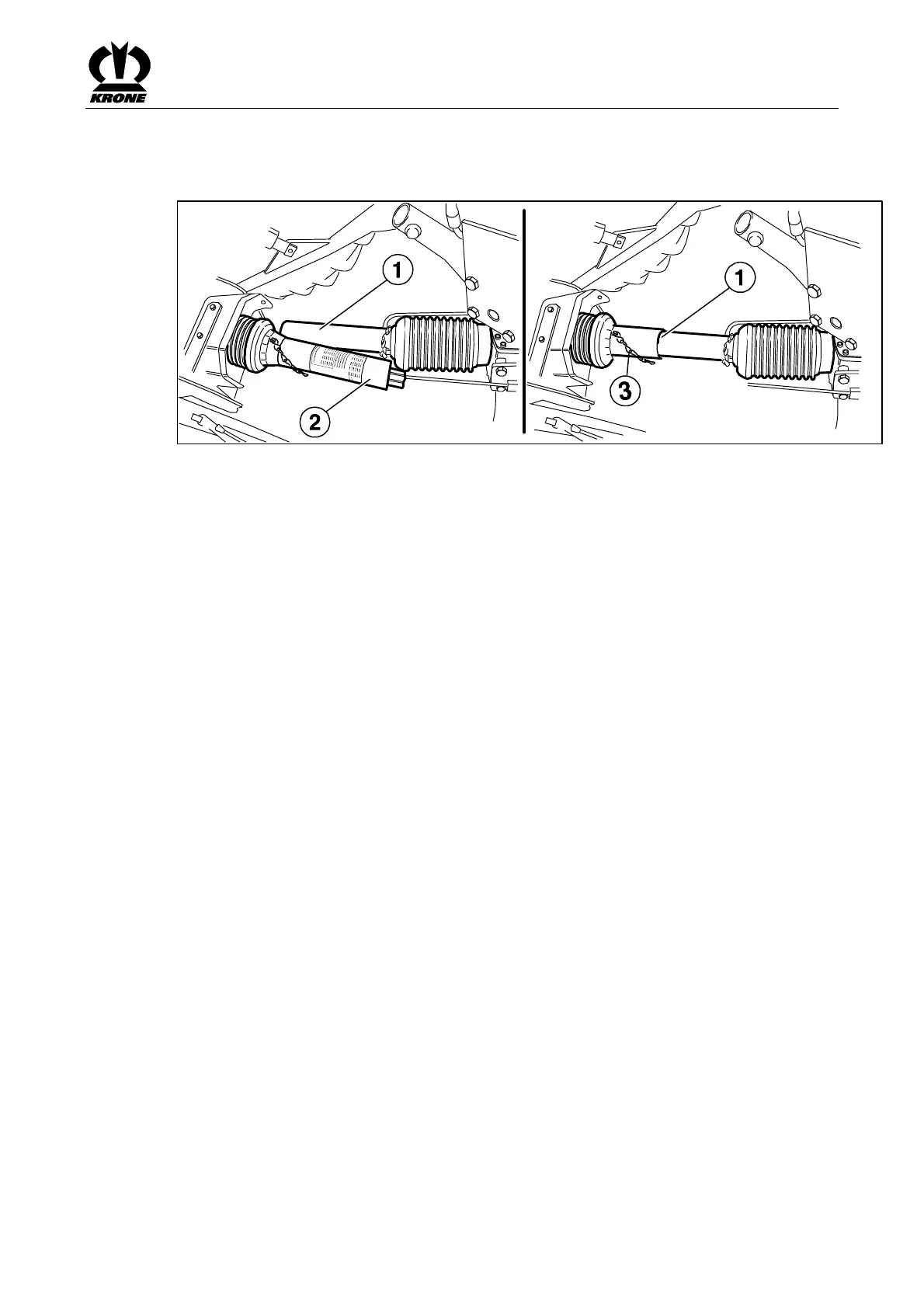

EC-0-026
Figure 4
Pos: 16.18 /BA/I nbetriebnahme/ Erstinbetriebna hme/Gelenkwelle/M ähwerkeAn bau Gelen kwelle allgemeiner Te xtE C 2800/32 00 @ 10\mod _1221815490726 _78.docx @ 138170 @ @ 1
The ends of the PTO shaft which has been provided are equipped with a longer and a shorter
guard over the joints. The joint with the longer guard must be pushed onto the gear input shaft
towards the machine.
Pos: 16.19 /BA/I nbetriebnahme/ Erstinbetriebna hme/Gelenkwelle/M ähwerke Längenanpassung_ ohne Pfahlsic herung @ 10\ mod_122181387 3039_78.doc x@ 1 38060 @ @ 1
The length of the PTO shaft (1) must be adjusted.
• Disassemble the PTO shaft.
• Install each half (1) and (2) on the tractor and machine side respectively.
• Check the special section tubes and guard tubes.
• Shorten special section tubes and guard tubes to an extent that the PTO shaft can move
freely in the shortest operating position.
• For additional operating instructions refer to the operating instructions of the PTO shaft
manufacturer.
