Maintenance – lubrication chart
89
Pos: 31.7 /Übersc hriften/Übersc hriften 2/A-E/Absc hmieren der Z wischengele nkwlle @ 35\mod _1257933354 660_78.doc x@ 334907 @ 1 @ 1
11.3 Lubricating the intermediate PTO shaft
Pos: 31.8 /BA/W artung/Gelenkwelle schmier enAbschmieren Z wischengelen kwlle EC 2800/3 200 @ 10\mod_1 22232389445 8_78.docx @ 1 39917 @ @ 1
AMT-1-023
1 2

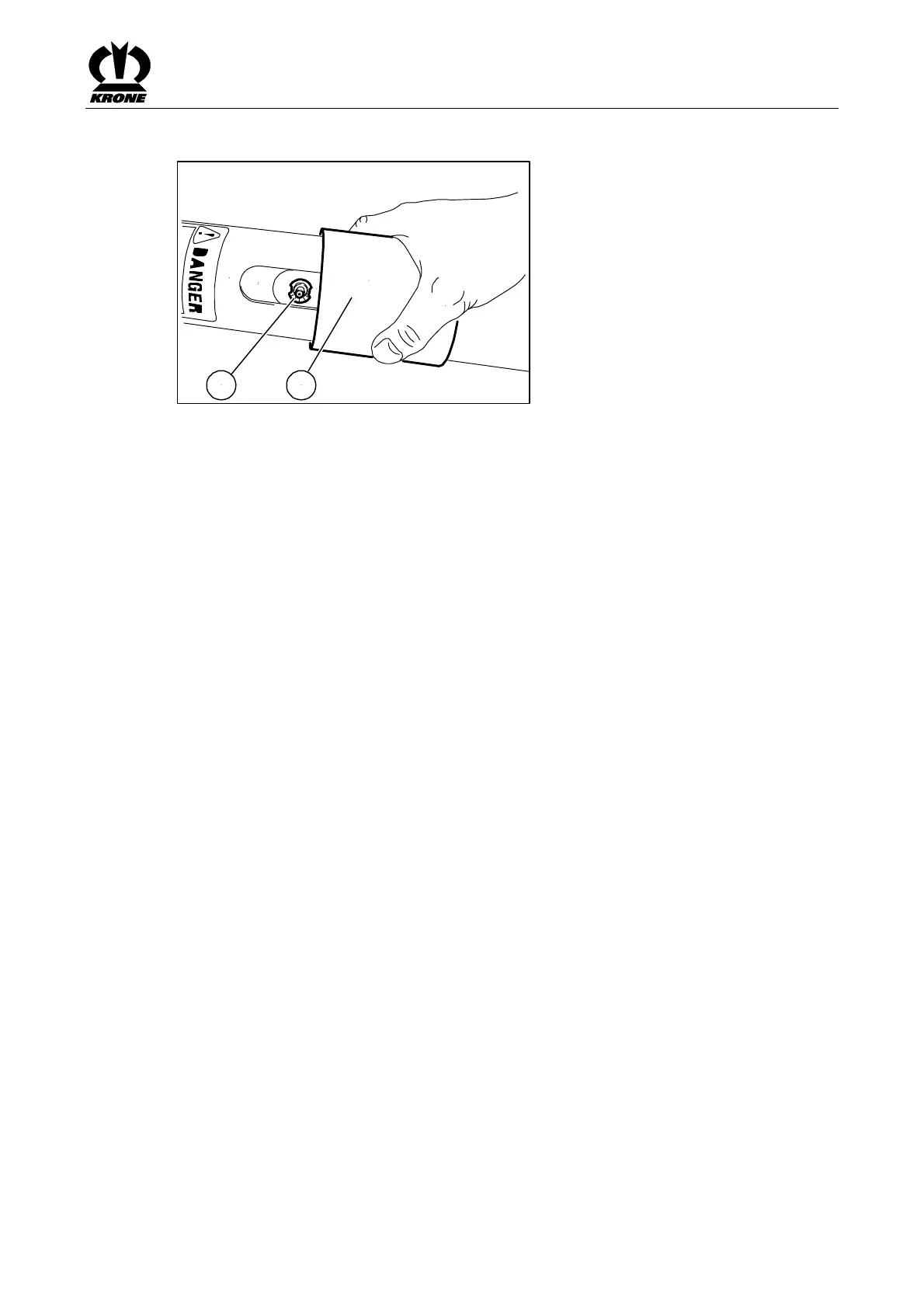

Figure 57:
The profile pipes on the intermediate PTO shaft must be lubricated every 20 operating hours.
To do this, manually push back the guard (2) and twist the protective tubes in opposite
directions until the lubrication point becomes visible.
