Krone LOAD CARRIER User Manual

LOADING AND SECURING
Operating instructions • Load Carrier • 505410638-02 • 07/2019
103
frame", pg.97). The footing beams either
have a lock lever or a screw for securing
the system to the vehicle floor.
kg
< 10000 / 2x
> 10000 / 3x
> 14000 / 4x
> 19000 / 5x
> 24000 / 6x
2400 daN/e
e
15000 daN
max
25000 kg
15000 daN

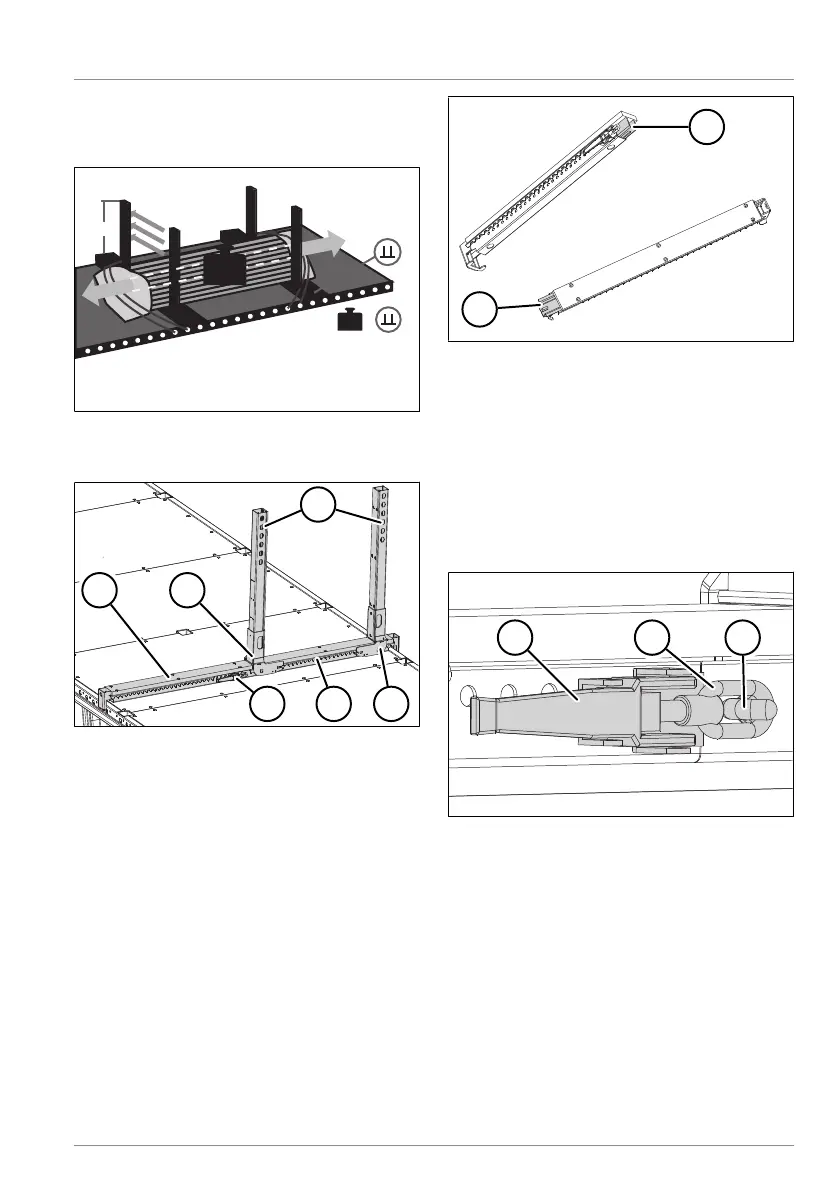

Fig.8-18: Multi Fix system
Installing the Multi Fix system
1 2
3
46 5
Fig.8-19: Installing the Multi Fix system
1 Footing beam with lock lever
2 Sliding shoe
3 Support beam
4 Sliding shoe
5 Footing beam without lock lever
6 Lock lever on footing beam
► Hook the footing beam without lock
lever onto the lashing holes on the
Multi Lock external frame (see "8.7.1
Using the Multi-Lock external frame",
pg.97).
1
2
Fig.8-20: Multi Fix footing beam
1 Connection profile on footing beam
with lock lever
2 Connection profile on footing beam
► Attach the footing beam with the lock
lever to the lashing holes on the op-
posite side on the Multi Lock external
frame (see "8.7.1 Using the Multi-Lock ex-
ternal frame", pg.97).
1 2 3
Fig.8-21: Lock lever secured on the footing
beam
1 Lock lever
2 Eyelet on lock lever
3 Hook on footing beam without lock
lever
► Open the lock lever.
► Assemble the connection profiles.
► Attach the hook on the lock lever to the
hook on the footing beam without lock
lever.
► Close the lock lever.
