VEHICLE OVERVIEW
20
Operating instructions • Load Carrier • 505410638-02 • 07/2019

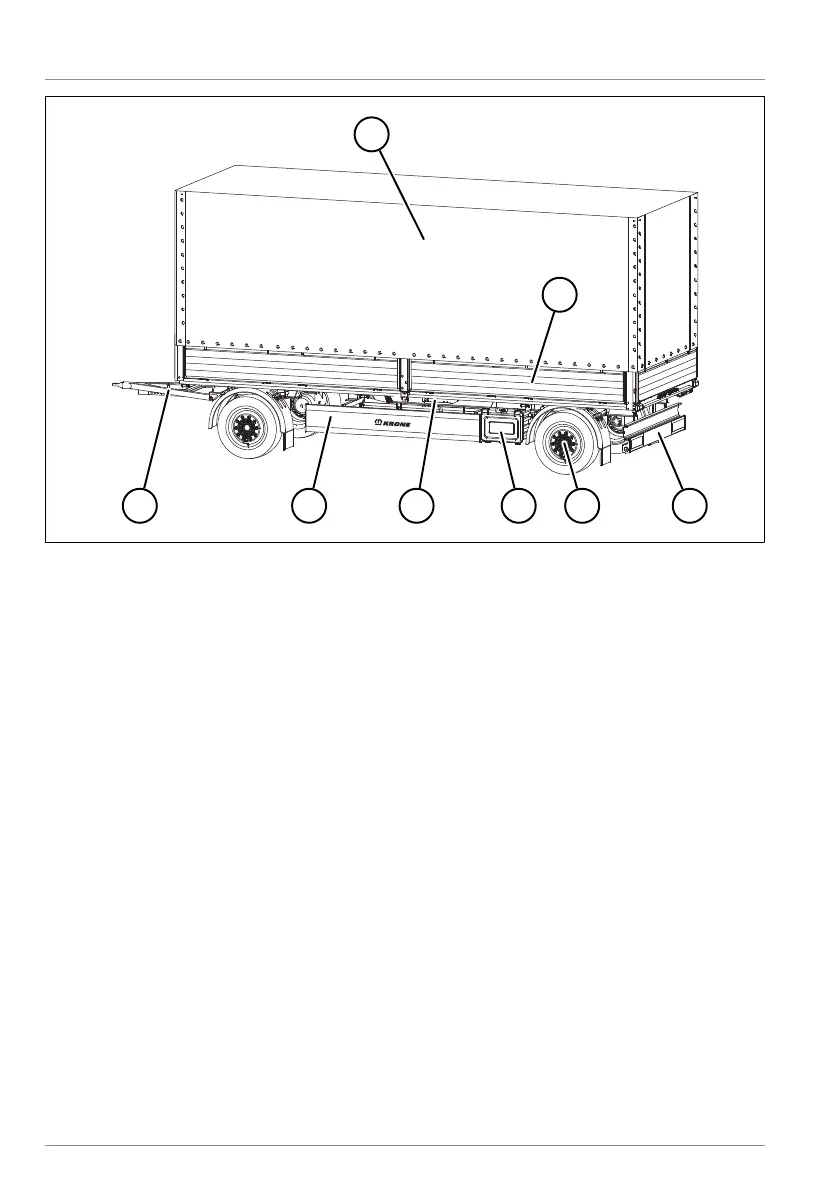

Fig.3-4: Turnframe trailer (2-axle) with full-tarp superstructure
1 Full tarp
2 Board walls
3 Rear underrun protection
4 Axle assembly
5 Tool box (option)
6 Control unit for brake system/air suspension
7 Side collision protection
8 Draw fork
Usage designs
The Load Carrier is a trailer with a sliding
curtain superstructure or a full-tarp super-
structure. It is designed as a turnframe
trailer or as a central axle trailer. The turn-
frame version of the Load Carrier can have
two or three axles.
