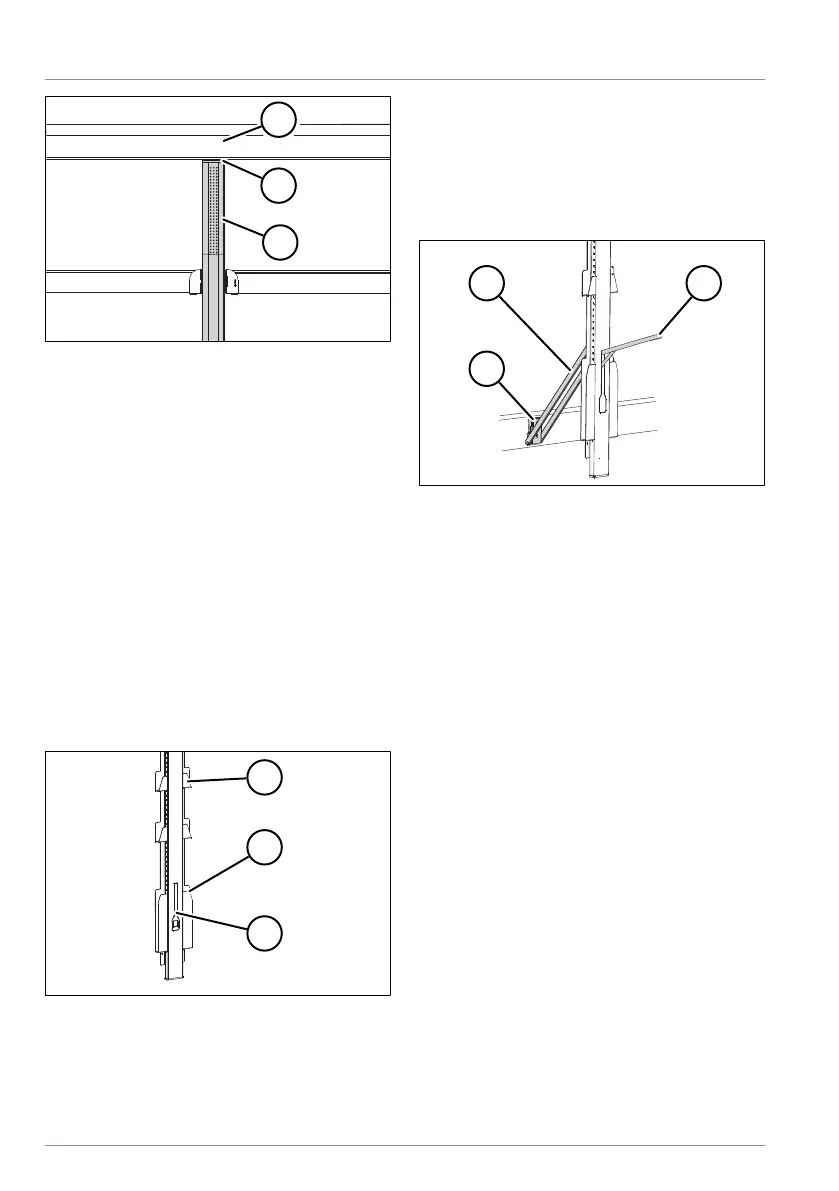

Fig.6-28: Bearings of sliding posts
1 External beam
2 Bogie truck with rollers
3 Sliding post
6.2.7.1 One-part fold-out posts
KRONE trailers with sliding curtain super-
structures are equipped with one-part fold-
out posts.
Depending on their design, one-part fold-
out posts have
○ several sets of lath sockets for plug-in
laths, and
○ one set of lath sockets above the floor,
each for four plug-in laths.
Posts without lath sockets are also pos-
sible.
1
2
3
Fig.6-29: One-part centre post
1 Flat lath sockets
2 Lath depot
3 Locking lever
Moving and locking one-part fold-out
posts
þ The centre posts are prepared for slid-
ing (see "6.2.7 Centre posts", pg.73).
► Pull out the locking lever and com-
pletely fold up.
1
3
2
Fig.6-30: Releasing the one-part fold-out
post
1 Fastening bow
2 Locking lever completely folded up
3 Post retainer
► Pull the posts away from the vehicle
without pulling the fastening bow out of
the post retainer on the chassis.
► Lift the fastening bow out of the post
retainers.
► Slide the posts in the desired direction.
► Insert the fastening bow into the post
retainers.
► Push back the locking lever to the
stop.
ü The posts have been moved and are
locked.
6.2.7.2 Telescopic fold-out posts
KRONE trailers with a lifting roof are
equipped with telescopic fold-out posts that
can be lifted for loading/unloading. A tele-
scopic piece inside the posts adjusts to
match the height difference. Depending on
their design, telescopic fold-out posts have
