SUPERSTRUCTURE OPERATION
Operating instructions • Load Carrier • 505410638-02 • 07/2019
75
○ several sets of lath sockets for plug-in
laths, and
○ one set of lath sockets above the floor,
each for four plug-in laths.
Posts without lath sockets are also pos-
sible.
1
2
3
4
5
6

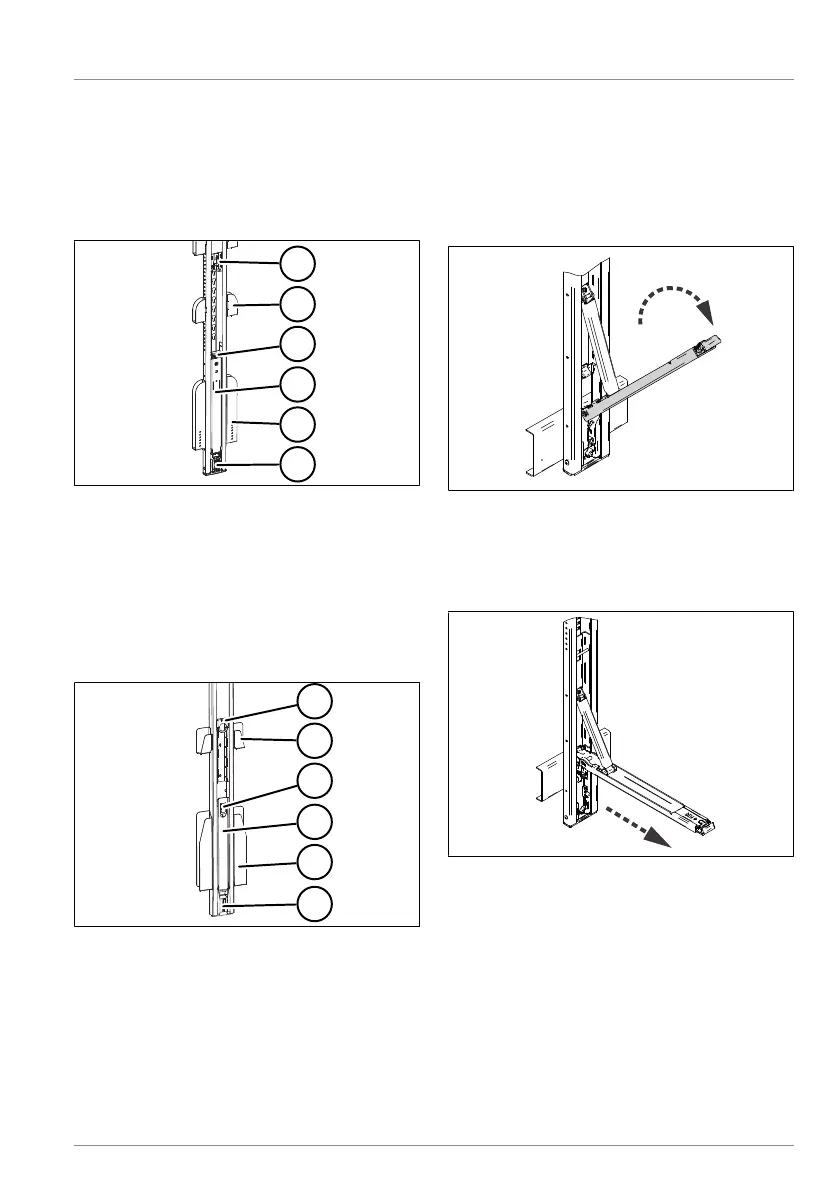

Fig.6-31: Telescopic fold-out post
1 Plugging unit
2 Flat lath sockets
3 Lock
4 Locking lever
5 Lath depot
6 Post pockets
1
2
3
4
5
6
Fig.6-32: Optional design of the centre post
1 Plugging unit
2 Flat lath sockets
3 Lock
4 Locking lever
5 Lath depot
6 Post pockets
Opening the telescopic fold-out posts
þ The posts are ready to be moved (see
"6.2.7 Centre posts", pg.73).
► Press in the locks on the locking lever.
► Pull out the locking lever from the post
profile.
Fig.6-33: Folding down the locking lever
► Completely fold down the locking lever
until the post retainer is released from
the chassis and the post slides down
from the post pocket.
Fig.6-34: Swivelling the post away from the
vehicle
► Swivel the posts away from the
vehicle.
