▪ Discharge-side, direct-flow membrane-type accumulator, approved for drinking
water
▪ Pressure gauge
▪ Integrated dry running protection
▪ Pressure transmitter on the discharge side
Installation
▪ Stationary dry installation
Drive
▪ Electric motor
▪ Efficiency class IE3 to IEC60034-30
▪ Enclosure IP55
Automation
▪ One frequency inverter per pump
▪ Setting the pressure via buttons or via bluetooth using an app
▪ Motor protection switch per pump
▪ Control unit (IP54 enclosure)
▪ Fault message signalling contact per pump
▪ Operation signalling contact per pump
4.5 Configuration and function
1
2
3
4
5
6

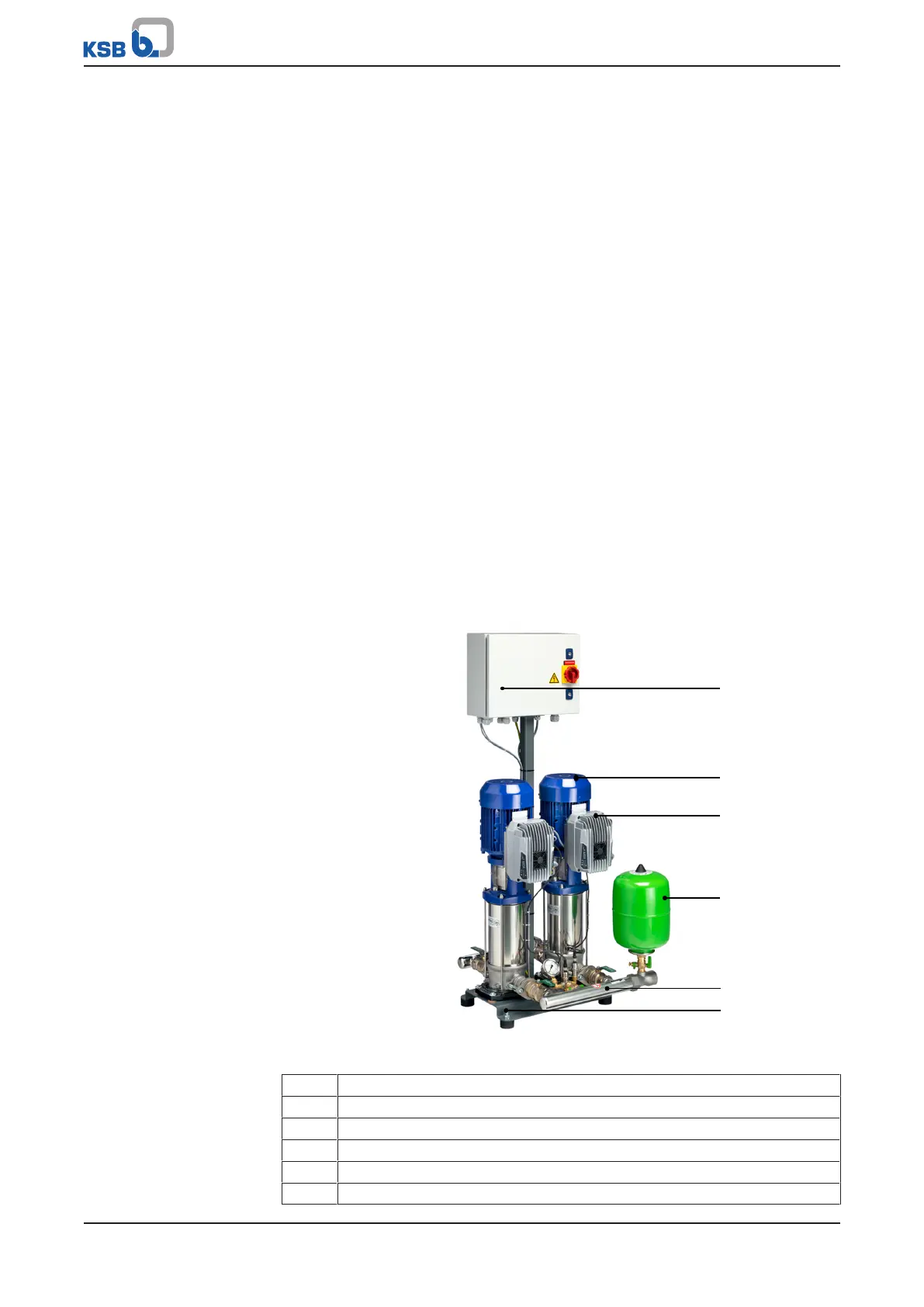

Fig.2: Illustration of pressure booster system
1 Control cabinet
2 Pump
3 Control unit
4 Membrane-type accumulator
5 Manifold
6 Baseplate
