10 Related Documents
40 of 48
KSB Delta Basic
1983.835/01-EN
10 Related Documents
10.1 General assembly drawings/exploded views with list of components
10.1.1 KSB Delta Basic MVP
591
655
595
743.90
743.90
79-2
691
691
838
743.90
742.02
742.01
743
412

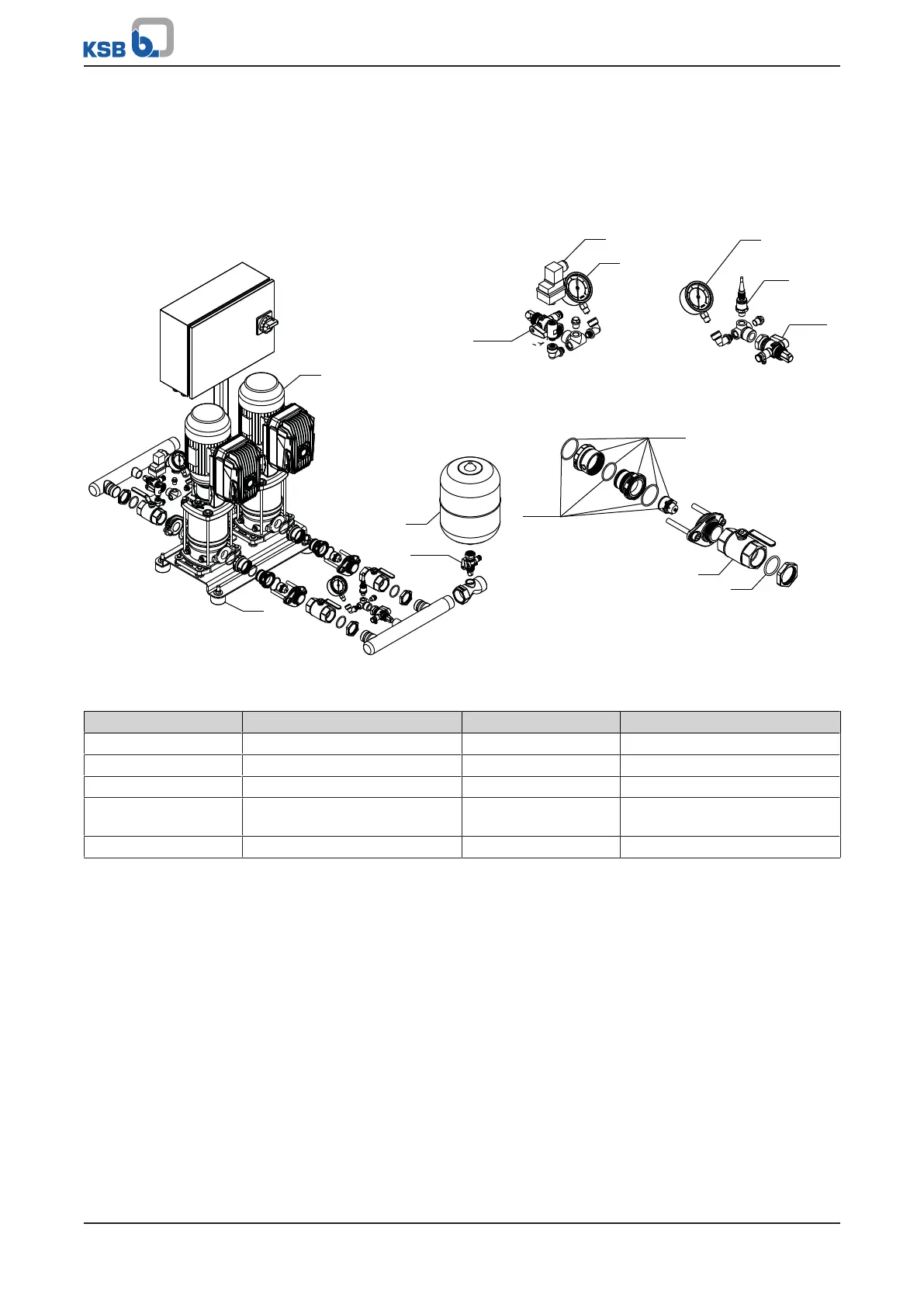

Fig.21: KSB Delta Basic MVP
Table16: List of components
Part No. Description Part No. Description
79-2 Measuring transducer 691 Pressure gauge
412 O-ring 742.01/.02 Lift check valve
591 Accumulator 743.90 Ball valve
595 Anti-vibration pad 838 Pressure switch for dry running
protection
655 Pump
The individual parts of the pump set are shown in the product literature of the pump
set.
