4.3 Name plate
KWP K A 100-250 2008
P-No. 997141502300050002
Q 21.00 m
3
/h H 13.0 m
n 1420 1/min
KSB Aktiengesellschaft
67227 Frankenthal
Ident.-No. ZN 3804 - A 52 x 74...
1
2
6
4
3
7
5
9
8

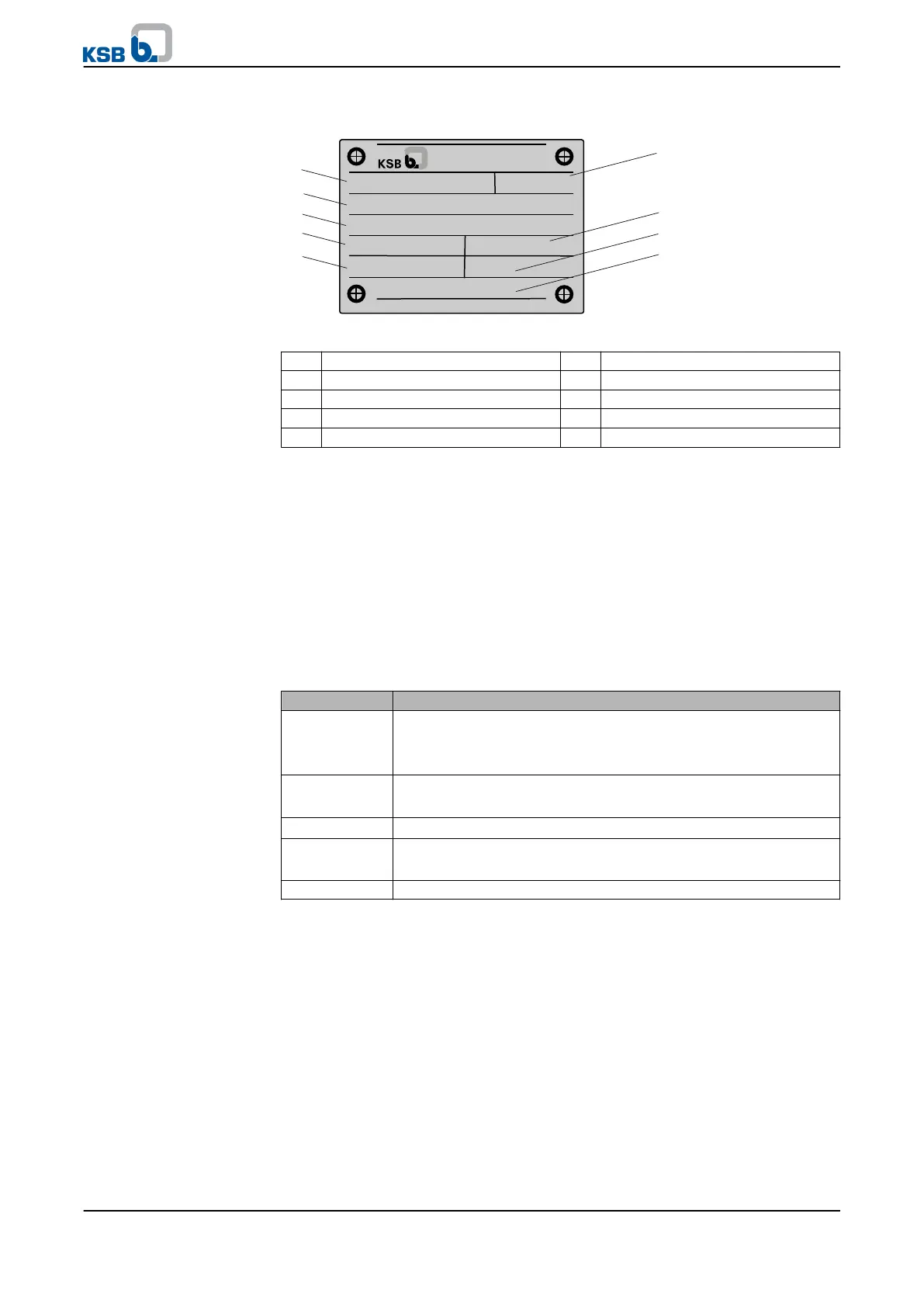

Fig. 5: Name plate KWP
1 Type series, pump size and version 2 Product number or blank
3 Works number for customer order 4 Flow rate
5 Speed 6 Year of construction
7 Head 8 Pump input power or blank
9 Other required details
4.4 Design
Design
▪ Volute casing pump
▪ Back pull-out design
▪ Horizontal installation
▪ Single-stage
▪ Single entry
▪ Ratings and dimensions in accordance with EN 733
Materials
Code Description
GN Standard design
▪ Complete pump in JL1040
▪ Impeller and wear plate in ERN
GC
2
▪ Like GN
▪ Impeller in Noridur 1.4593
C
2
Complete hydraulic system in Noridur 1.4593
GH ▪ Casing in JL1040
▪ Impeller and wear plate in NORIHARD
H Complete hydraulic system in NORIHARD
Pump casi n g
▪ Radially split volute casing
▪ For combustible fluids: ductile materials containing less than 7.5% magnesium
(EN 13463-1)
▪ Volute casing with integrally cast pump feet
▪ Pump casing fitted with a wear plate
▪ Stuffing box housing in one of the following variants:
4 Description of the Pump (Set)
