‐6‐

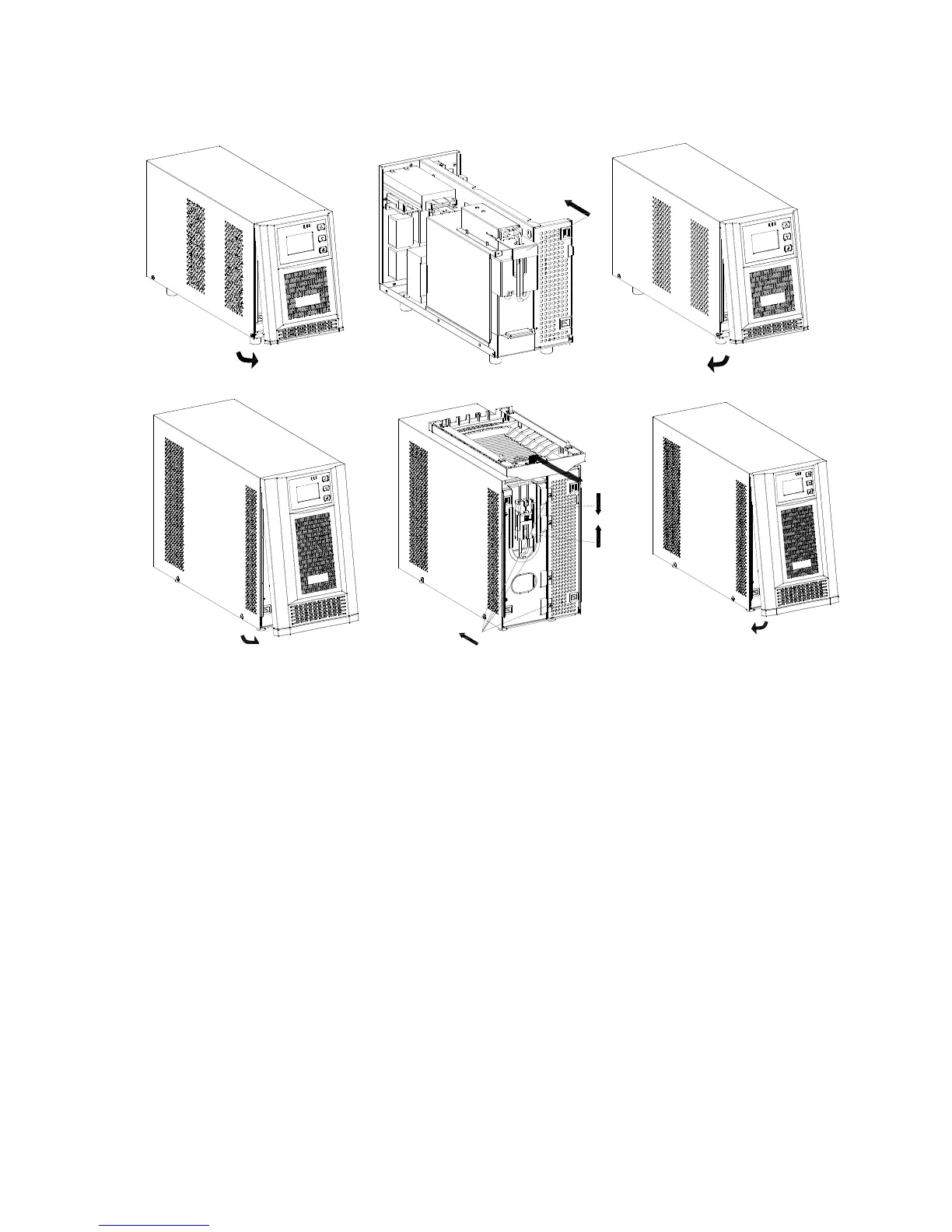

Battery connection
Step 1 Step 2 Step 3
1k
2/3k
Remove front panel. Re-connect battery wires. Fix front panel
2-3. Setup The UPS
Step 1: UPS input connection
Plug the UPS into a two-pole, three-wire, grounded receptacle only.
Step 2: UPS output connection
There two segments of outputs: segment 1 outlets and segment 2 outlets. Please connect
non-critical devices to the segment 1 outlets and critical devices to segment 2 outlets. During
power failure, you may extend the backup time to critical devices by setting shorter backup time
for non-critical devices.
To Next Page
