‐8‐

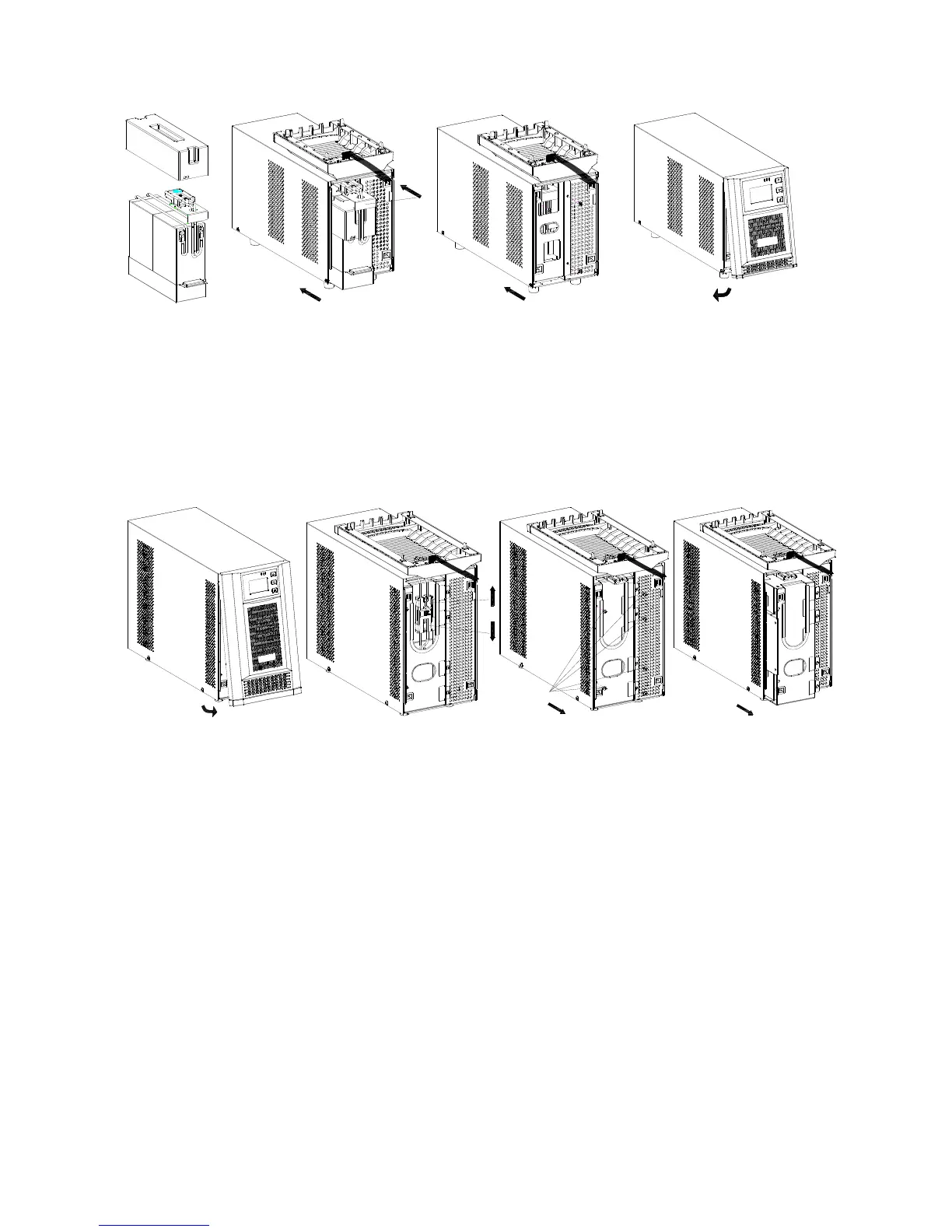

Step 4 Step 5 Step 6
Remove the top cover of
battery box and replace the
inside batteries.
After replacing the batteries, put
the battery box back to original
location Re-connect the battery
wires, and screw the front panel
tightly.
Put the front panel back to
the unit.
For 2/3KVA Step 1 Step 2 Step 3
Remove front panel. Disconnect battery wires. Pull out the battery box
by removing screws on
the battery bracket.
To Next Page
