KStar HPM3300E User Manual

69

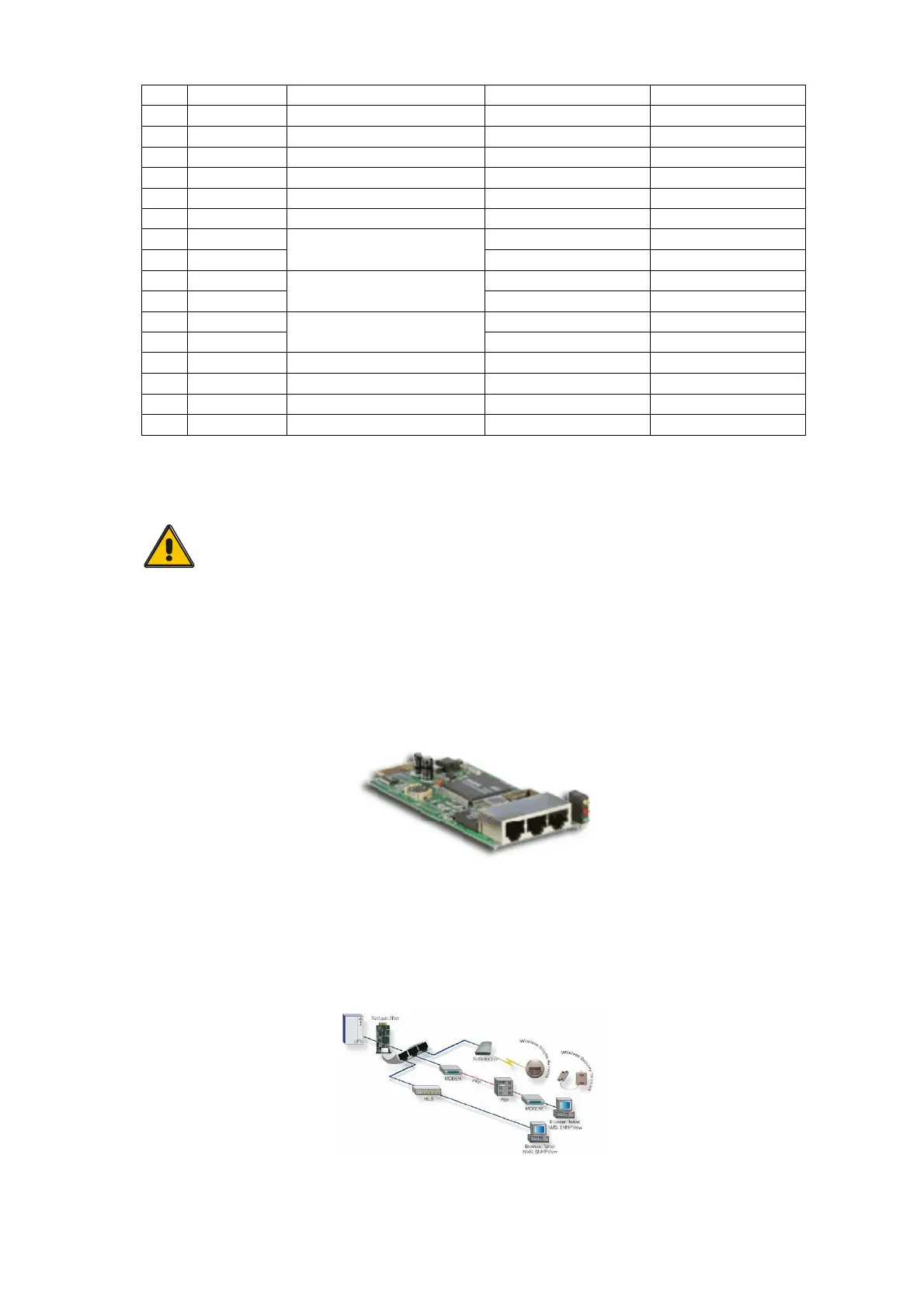

No Alarm Cord UPS Alarm Warning Buzzer LED
22 144 Bypass Overload Once per 2 seconds Alarm LED lit
23 145 Maint. Switch Misuse Once per 2 seconds Alarm LED lit
24 146 ECU Comm. Error Once per 2 seconds Alarm LED lit
25 147 Par. cable abnormal Once per 2 seconds Alarm LED lit
26 14B ECU Par. cable abnormal Once per 2 seconds Alarm LED lit
27 14C ECU Abnormal Once per 2 seconds Alarm LED lit
28 14E
BPS Phase Reversed
Once per second Alarm LED lit
29 162 Once per second Alarm LED lit
30 14F
BPS Unable To Trace
Once per 2 seconds Alarm LED lit
31 163 Once per 2 seconds Alarm LED lit
32 150
BPS Not Available
Once per second Alarm LED lit
33 164 Once per second Alarm LED lit
34 151 Ecu Set Data Err Once per 2 seconds Alarm LED lit
35 161 BPS Par.cable abnormal Once per 2 seconds Alarm LED lit
36 165 Bypass Comm. Error Once per 2 seconds Alarm LED lit
37 166 Bypass module take over Once per 2 seconds Alarm LED lit
4.5 Options
Network Management Card with Environmental Monitoring
CAUTION!
For network management configuration and use, refer to the separate user
manual - Network Management Card with Environmental Monitor - shipped with the
CARD
.
Network Management Card replacement
SNMP card: internal SNMP / external SNMP optional
◆
Loosen the 2 torque screws (on each side of the card).
◆
Carefully pull out the card. Reverse the procedure for re-installation
The slot called SNMP supports the MEGAtec protocol. We advise that NetAgent II-3 port is
also a tool to remotely monitor and manage any UPS system
The overview of the SNMP card
NetAgent II-3Ports supports the Modem Dial-in (PPP) function to enable the remote control
via the internet when the network is unavailable.
In addition to the features of a standard NetAgent Mini, NetAgent II has the option to add
NetFeeler Lite to detect temperature, humidity, smoke and security sensors. Thus, making
NetAgent II a versatile management tool. NetAgent II also supports multiple languages and is
setup for web-based auto language detection.
Typical topology of the UPS Network Management
