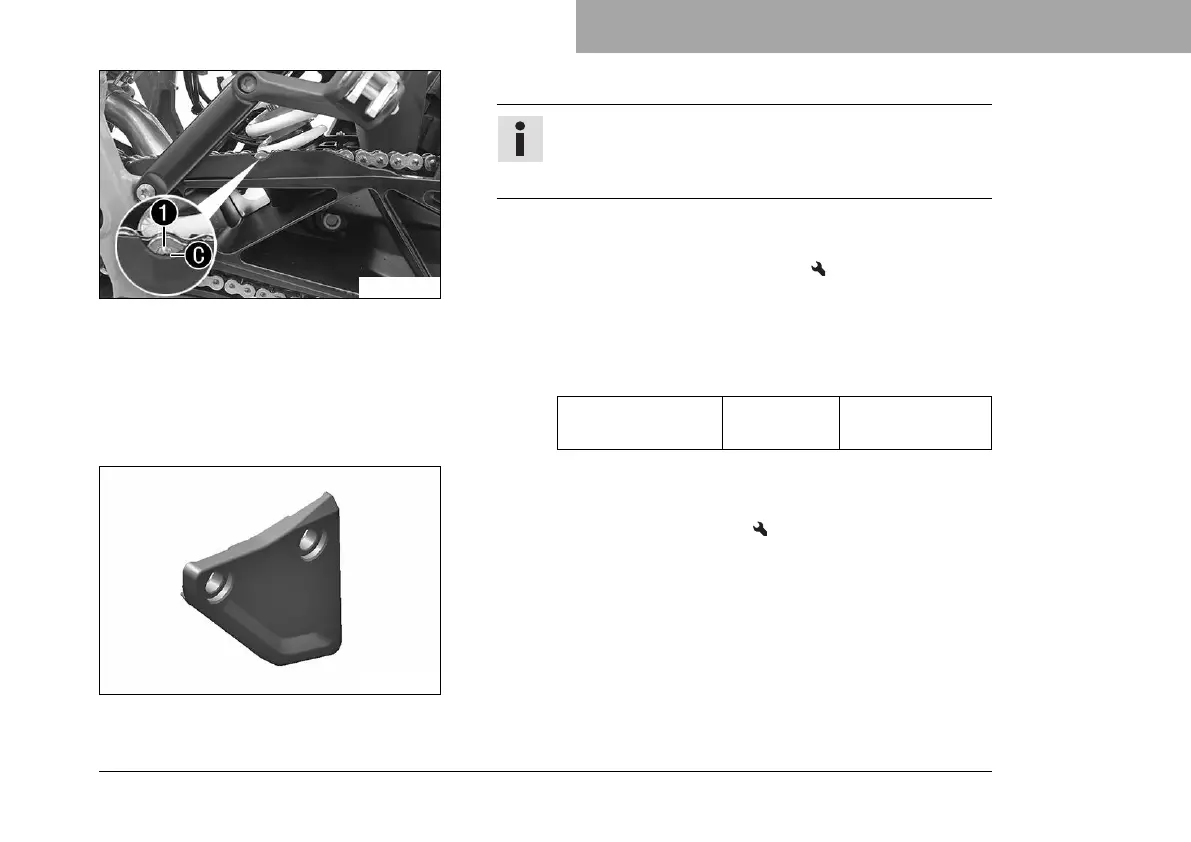

– Check the chain sliding guard for wear at the recess.
Info
When the chain sliding guard is new, the rivets
1
are
half visible at the bottom edge
C
of the recess.
» When the rivets of the chain are no longer visible at the
bottom edge of the recess of the chain sliding guard:
– Change the chain sliding guard.
– Check that the chain sliding guard is firmly seated.
» If the chain sliding guard is loose:
– Tighten the screws on the chain sliding guard.
Guideline
Screw, chain slid-
ing guard
M5 5 Nm (3.7 lbf ft)
401670-01
– Check the chain guide for wear.
» If the chain guide is worn:
– Change the chain guide.
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
