KTM 1090 Adventure R User Manual

ELECTRICAL SYSTEM 16
217

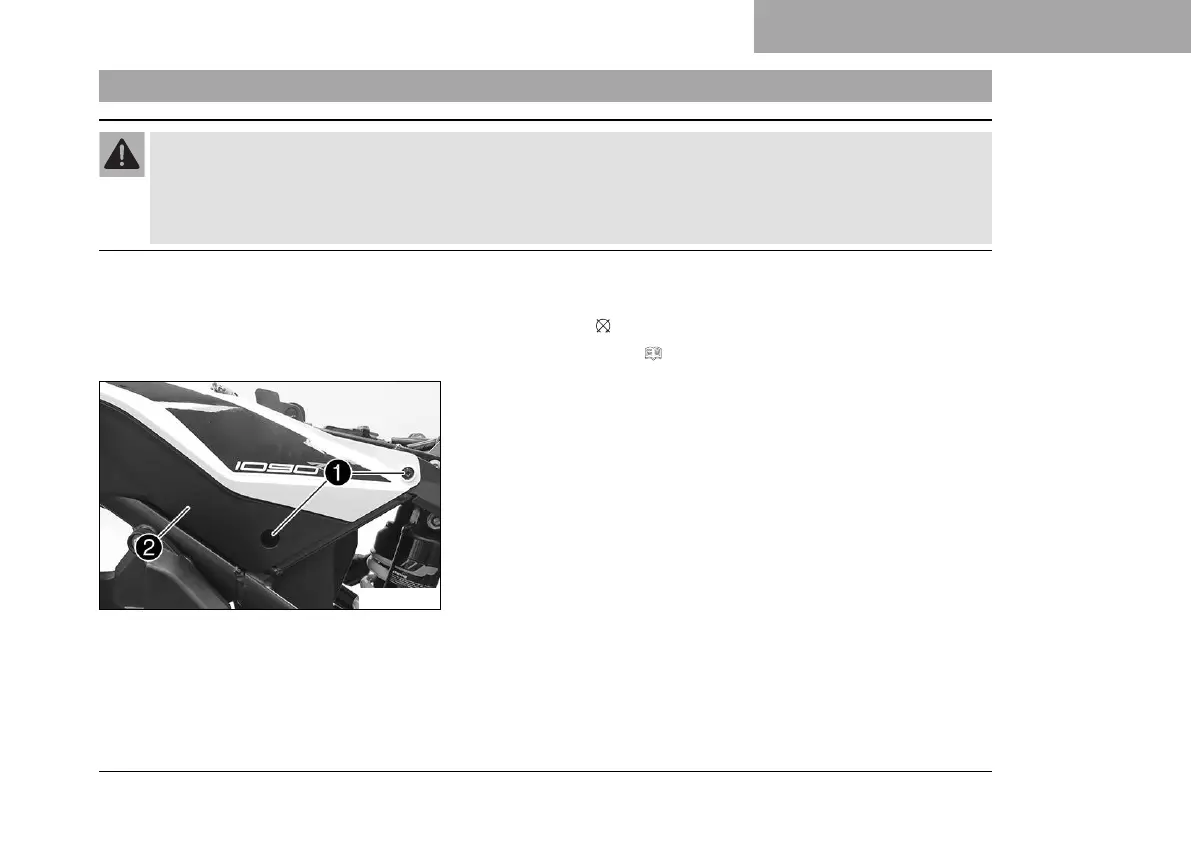

16.5 Changing the main fuse
Warning
Fire hazard Incorrect fuses overload the electrical system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
Preparatory work
– Switch off the ignition by turning the black ignition key to the
position OFF .
– Remove the seat. ( p. 133)
S01815-10
Main work
–
Remove screws
1
.
–
Raise rear fairing
2
slightly.

KTM 1090 Adventure R Specifications

General

Displacement	1050 cc
Torque	109 Nm
Transmission	6-speed
Fuel Capacity	23 liters
Seat Height	890 mm
Dry Weight	207 kg
Front Suspension	WP USD Ø 48 mm
Bore x Stroke	103 mm x 63 mm
Compression Ratio	12.5:1
Starter	Electric starter
Fuel System	Electronic fuel injection
Front Wheel	2.50 x 21"
Rear Wheel	4.50 x 18"
Front Tire	90/90-21
Rear Tire	150/70-18
Ground Clearance	250 mm
Engine Type	V-Twin, 4-stroke, DOHC
Power	125 hp (92 kW)
Rear Suspension	WP shock absorber
Front Brake	2 x 320 mm discs, 4-piston radial fixed calipers
Rear Brake	Brembo 2-piston caliper, 267 mm disc
ABS	Bosch 9M+ two-channel ABS (disengageable)
Frame	Chromium-Molybdenum steel trellis frame, powder-coated
